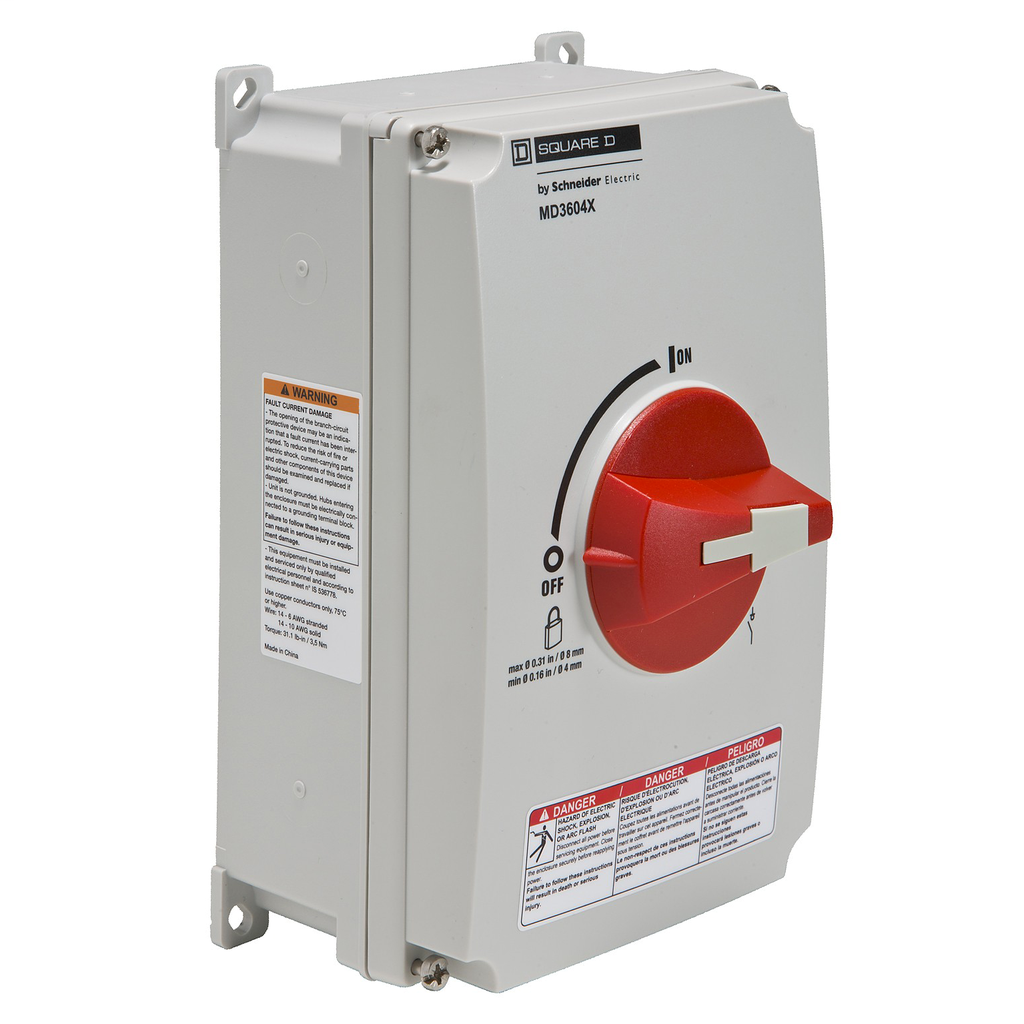

Schneider Electric MD3604X Switch Motor Disconnect 60 Amp 600 VAC 3-Pole NEMA 4X

Product Description

The Schneider Electric MD3604X is a motor disconnect switch with a voltage rating of six hundred VAC and a current rating of sixty amps. This switch is designed for motor control applications and is suitable for use in various NEMA enclosures, including NEMA 1, 3, 3R, 4, 4X, and 12. The MD3604X features a compact design that is easy to install and operate. It serves as a reliable on/off control for motors, offering essential safety features such as a handle interlock that prevents cover removal while the switch is in the ON position.

• Compact NEMA 4X enclosure
• UL Listed for safety
• Lightweight design for easy handling

Product Highlights

This motor disconnect switch is ideal for industrial and commercial applications, providing an efficient way to manage motor power safely.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Model: MD3604X

Technical Specifications

• Voltage: 600 VAC
• Current Rating: 60 Amps
• Poles: 3
• Enclosure Type: NEMA 4X
• Horsepower Rating: 20 HP at 220/240 VAC, 40 HP at 440/480 VAC, 40 HP at 600 VAC
• Warranty: 18 months
• Country of Origin: China
• GTIN: 03606480190230
