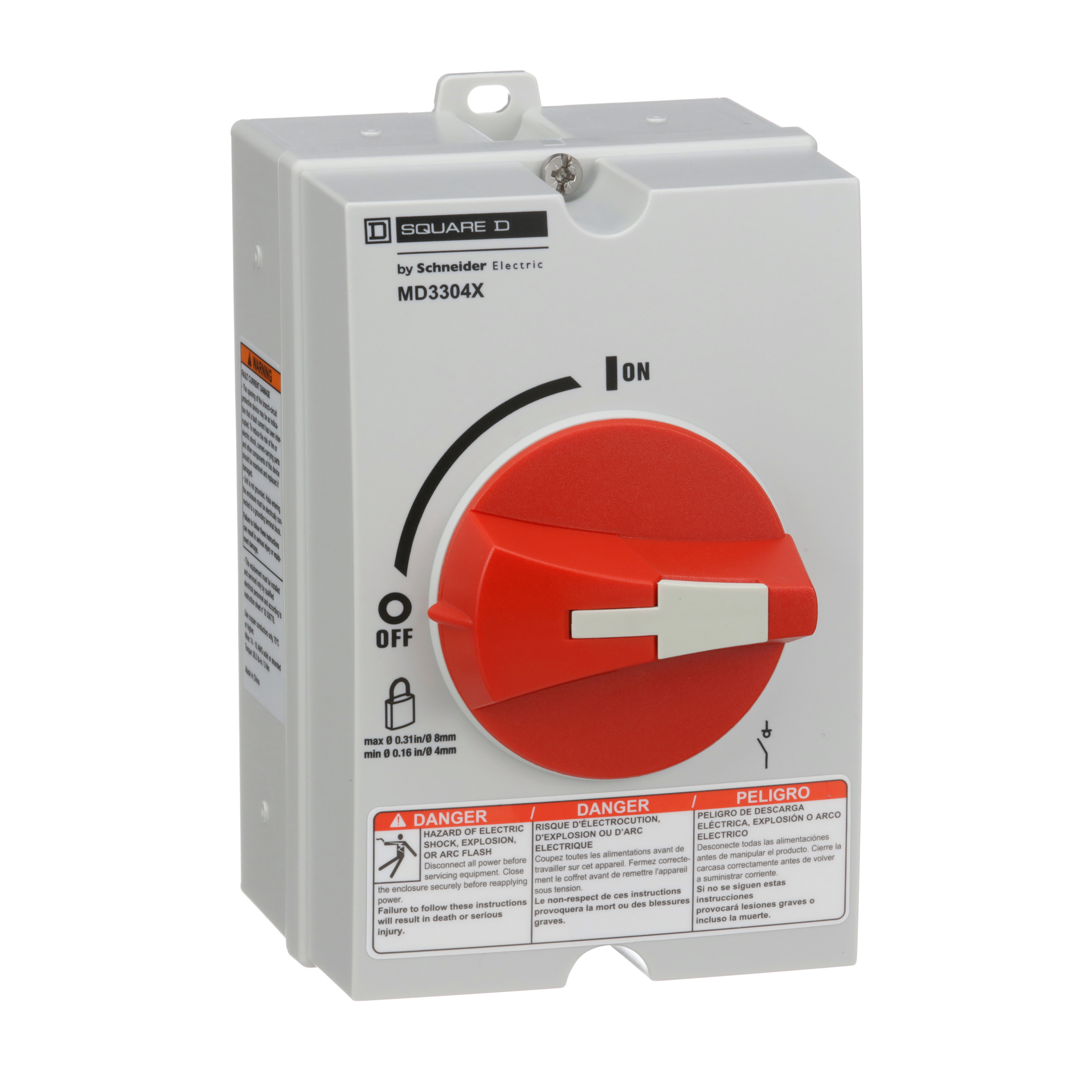

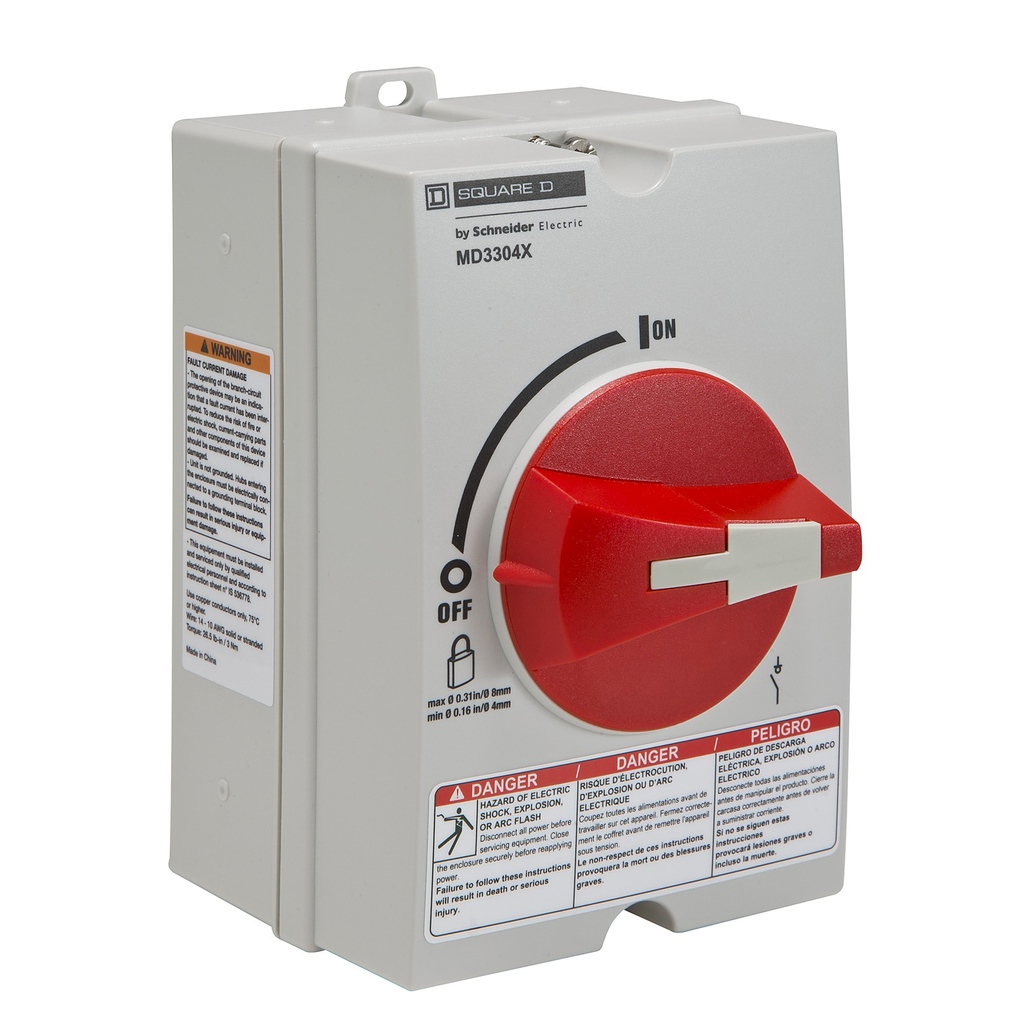

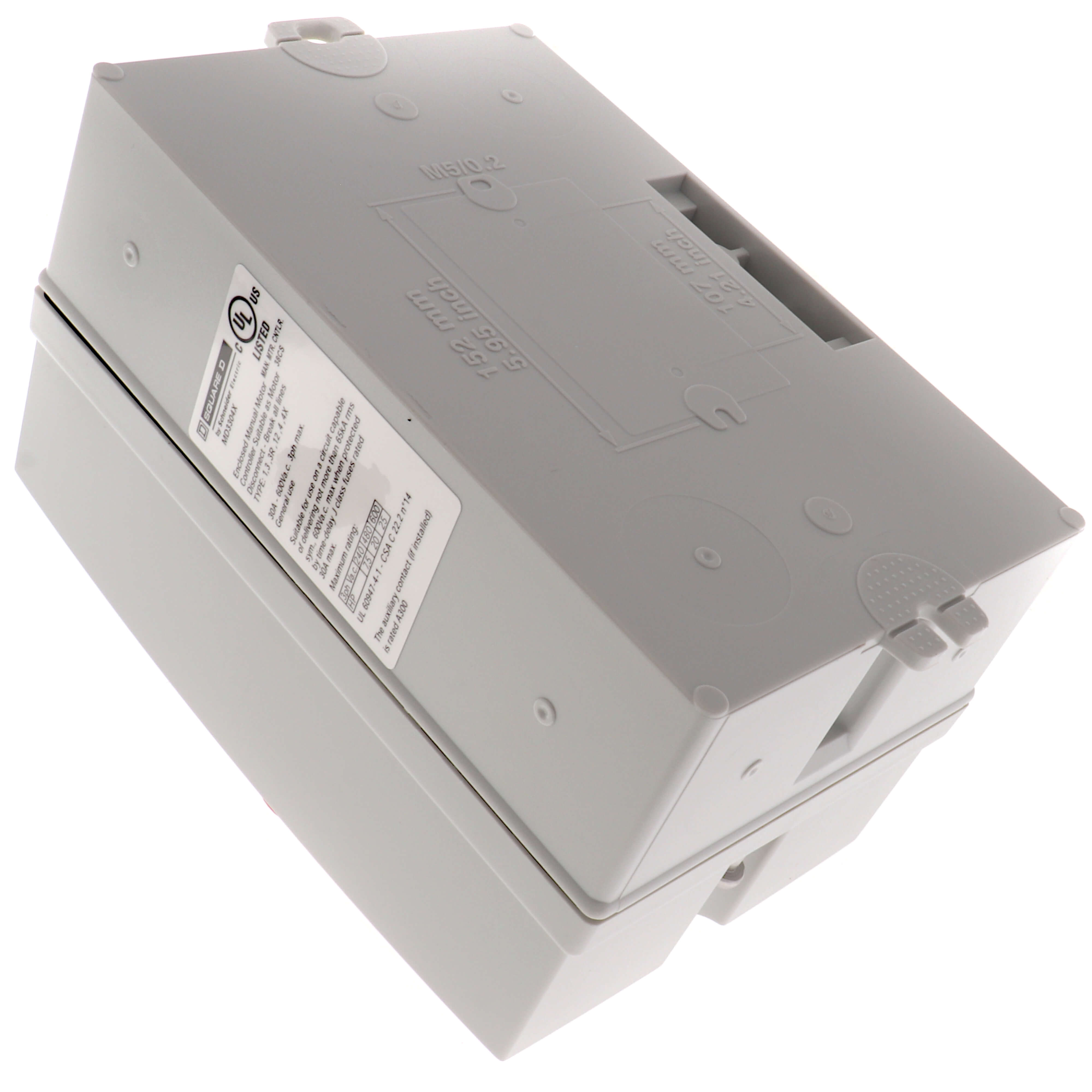

Schneider Electric MD3304X Motor Disconnect Switch 30 Amp 600 VAC 3-Pole NEMA 1, 3, 3R, 4, 4X and 12 Enclosure

Product Description

The Schneider Electric MD3304X is a motor disconnect switch designed for reliable performance. This switch provides a safe way to disconnect motors. It features a three-pole design and is rated for thirty amperes at six hundred volts AC. The compact NEMA 4X enclosure is suitable for various applications, including NEMA 1, 3, 3R, 4, and 12 installations.

• Suitable for up to 25 horsepower at 600 volts AC.
• Handle interlock prevents cover removal when the switch is ON.
• UL listed and CSA certified for safe operation.

Product Highlights

This switch is useful for HVAC systems, industrial applications, and situations where a motor needs to be safely disconnected.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: MD3304X

Technical Specifications

• Amperage: 30 A
• Enclosure Rating: NEMA 4X
• Horsepower Rating: 7.5 hp at 220/240 V, 20 hp at 440/480 V, 25 hp at 600 V
• Height: 6.38 inches
• Width: 3.90 inches
• Depth: 4.37 inches
• Warranty Length: 18 months
• Country of Origin: China
