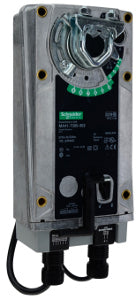

Schneider Electric MA41-7300-502 SmartX Damper Actuator 100-240 Vac

Product Description

The Schneider Electric MA41-7300-502 is a SmartX damper actuator designed for efficient automatic control. This actuator operates on a voltage range of one hundred to two hundred forty volts alternating current. It features a two-position control signal, which allows for simple on/off operations, making it suitable for various HVAC applications.

• Torque capacity of 270 lb-in for reliable performance
• Spring return for quick operation after power loss
• Durable NEMA 2 protection rating for enhanced reliability

Product Highlights

The MA41-7300-502 is ideal for damper control in commercial and industrial systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX Actuator

Technical Specifications

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 100...240 Vac
• Torque: 270 in-lb
• NEMA Protection Rating: NEMA 2
• Operating Temperature Range: -40 to 50 °C
• Weight: 4.599 kg
• Dimensions: 6.3779 x 7.1259 x 15 inches
