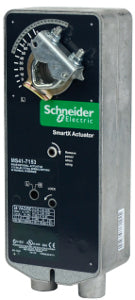

Schneider Electric MA41-7071-502 Actuator 230 VAC 60 in-lb

Product Description

Schneider Electric's MA41-7071-502 is an electric actuator designed for effective control in various applications. This two-position actuator operates at 230 VAC and features a spring return mechanism. It delivers a torque of sixty inch-pounds and supports rotary motion, making it suitable for dampers and globe valves.

• Operating Voltage: 230 VAC
• Torque: 60 in-lb
• Control Type: 2-Position

Product Highlights

The MA41-7071-502 actuator is designed with a durable protection rating, making it reliable in various environments. It includes an auxiliary switch with two SPDT functions, allowing for seamless integration into automation systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX Actuator

Technical Specifications

• Power Input Voltage: 230 VAC
• Actuator Type: Electric
• Control Signal: 2-Position
• Torque: 60 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 2
• Leads and Connections: 3 ft Appliance
• Actuator Use: Dampers, Globe Valves
