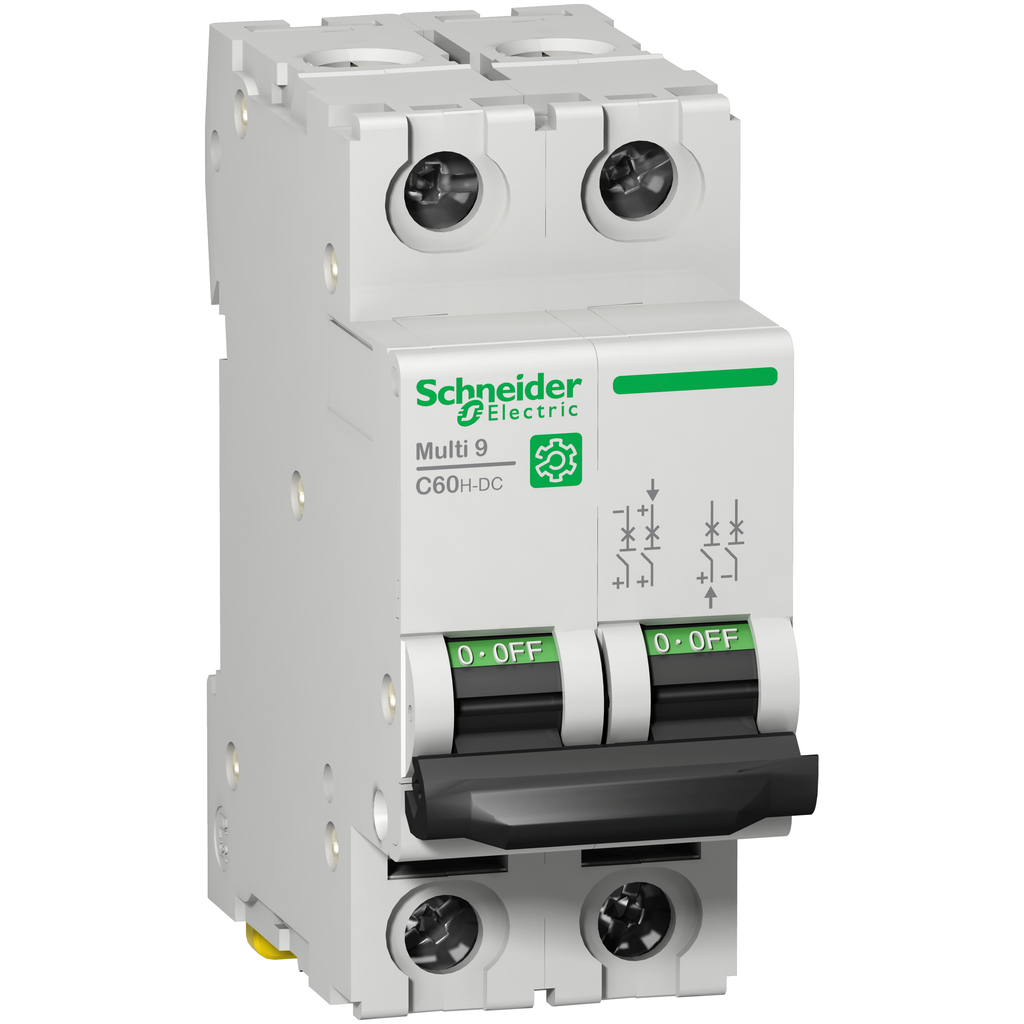

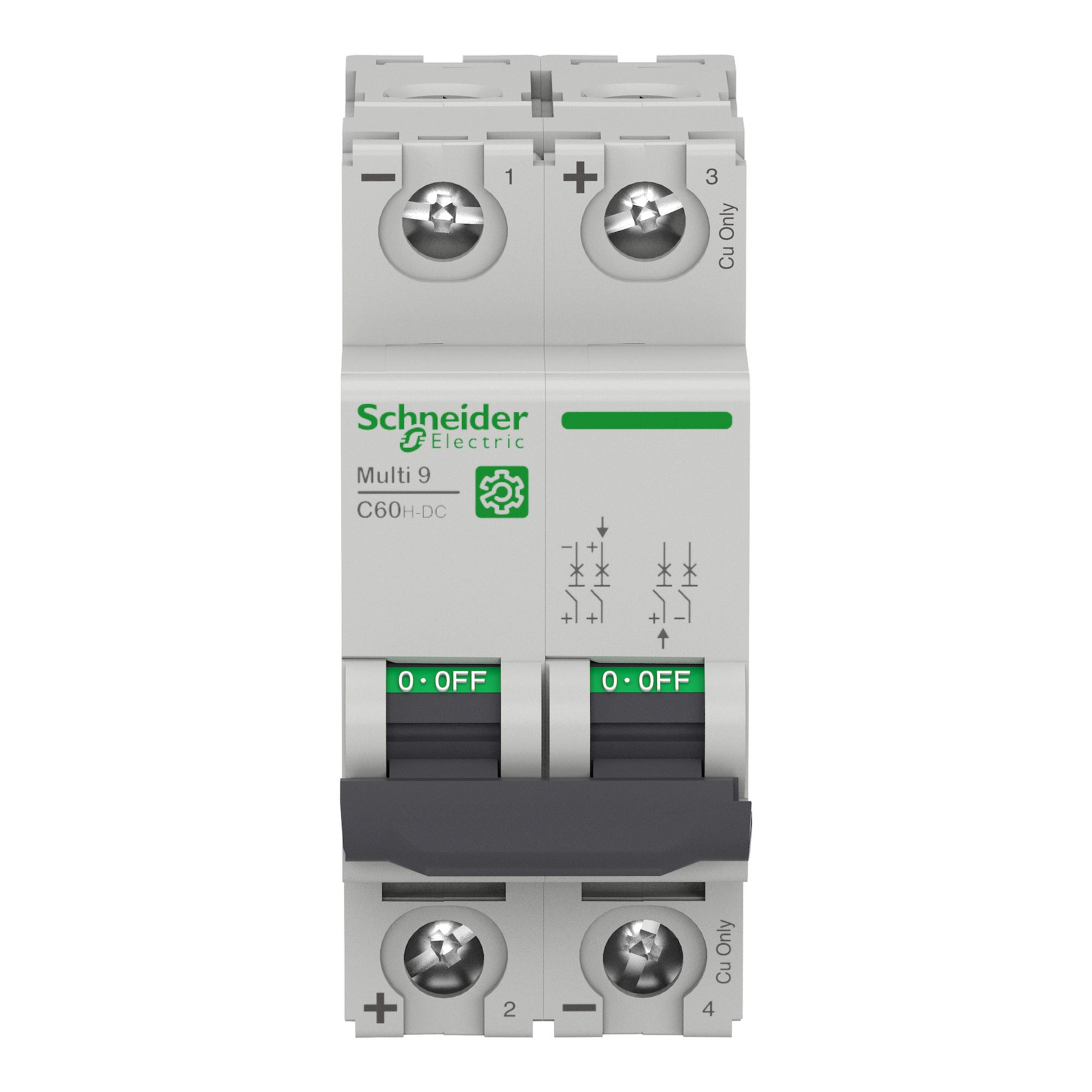

Schneider Electric M9U21203 Miniature Circuit Breaker 3A 2P Replacement MPN

Product Description

This product is a Schneider Electric M9U21203 Miniature Circuit Breaker (MCB) designed for low voltage applications. It operates on direct current and features two protected poles with a 3A rated current and a C tripping curve. The breaker is capable of handling a short circuit breaking capacity up to 20kA at 220VDC, conforming to EN/IEC 60947-2 standards.

• 2P circuit breaker with a C tripping curve
• Rated short circuit breaking capacity of 20kA
• Designed for OEMs and control panel builders

Product Highlights

This MCB provides enhanced safety by protecting against short circuits, earth leakage, and overloads. It is suitable for use in various applications and offers an electrical endurance of up to 3000 cycles and a mechanical endurance of up to 20000 cycles.

Product Information

Standard Information

• Catalog Number: M9U21203
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 220 Volt
• Amperage: 3 Amp
• Height: 81 mm
• Width: 36 mm
• Depth: 73 mm
• Net Weight: 0.128 kg
• Operating Temperature: -25 °C to 70 °C
• Storage Temperature: -40 °C to 85 °C
