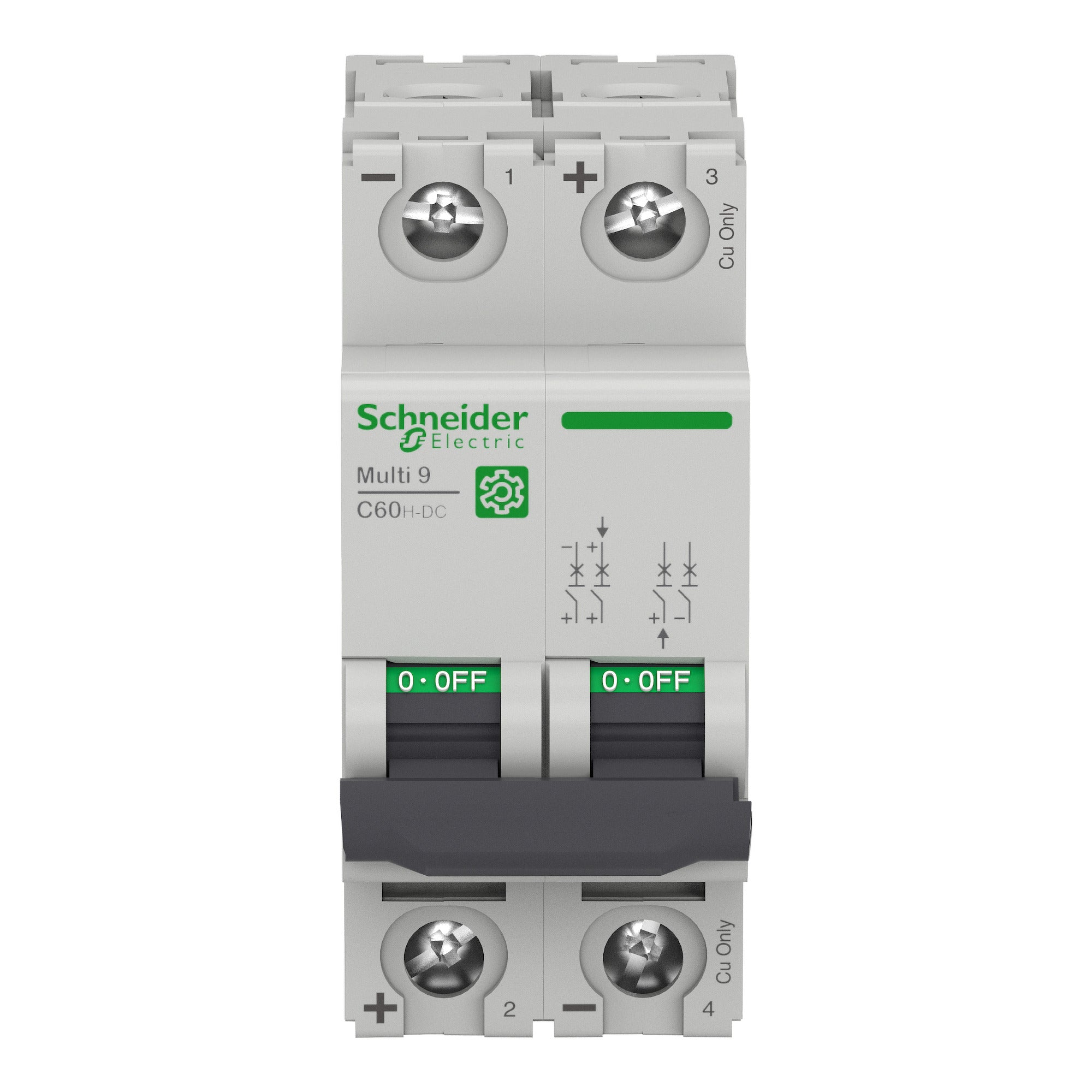

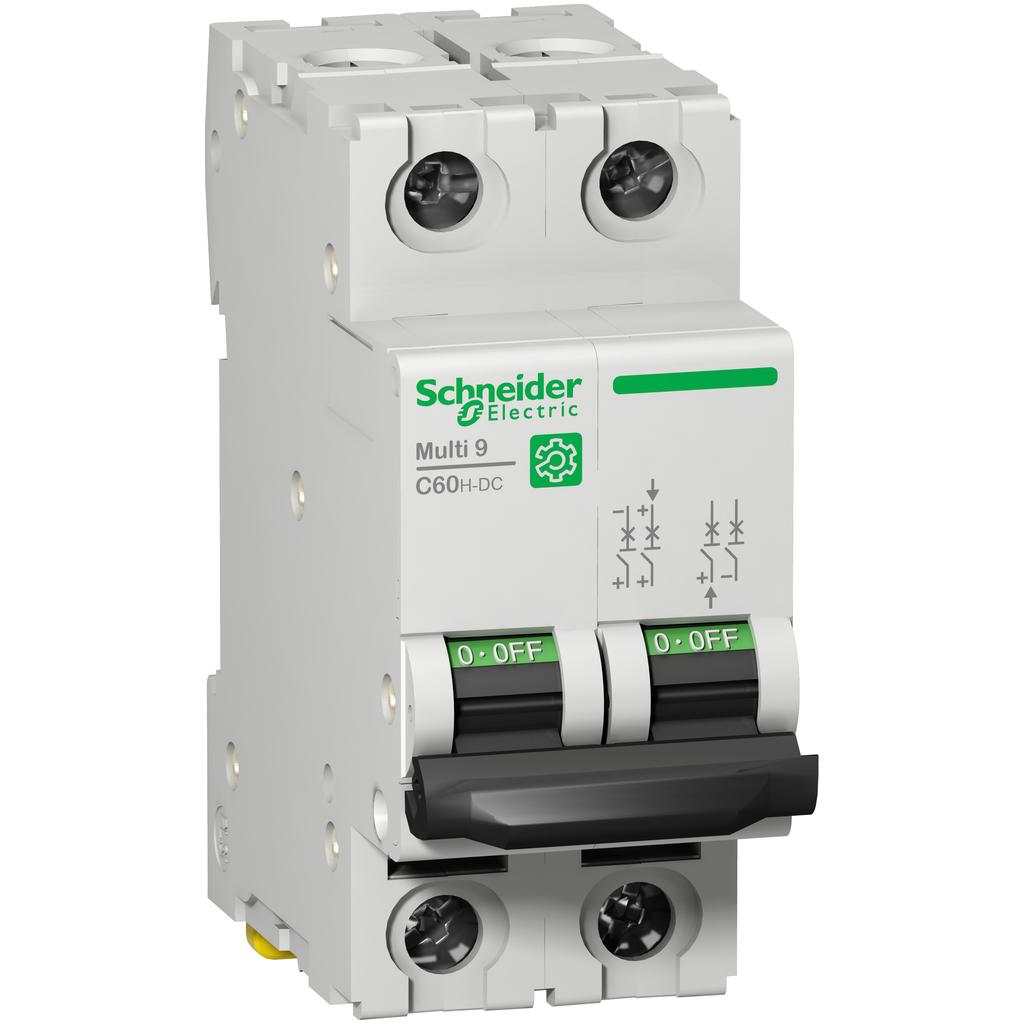

Schneider Electric M9U21202 Miniature Circuit Breaker 2P 2A C Curve

Product Description

Schneider Electric M9U21202 is a miniature circuit breaker (MCB) intended for low voltage direct current applications. The breaker features two protected poles with a rated current of two amps and a C tripping curve. It meets the EN/IEC 60947-2 standard with a rated short circuit breaking capacity of 20kA at 220VDC.

• Complies with EN/IEC 60898-1 and EN/IEC 60947-2 standards
• Designed for original equipment manufacturers and control panel builders
• Features electrical endurance up to 3000 cycles and mechanical endurance of 20000 cycles

Product Highlights

This circuit breaker is built for enhanced protection against electrical faults, including short circuits, earth leakage, and overloads. It can be clipped onto a DIN rail for ease of installation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: M9U21202
• Voltage: 220 Volt
• Amperage: 2 Amp
• Number of Poles: 2 Pole
• Width: 36 mm
• Height: 81 mm
• Depth: 73 mm
• Weight: 0.128 kg
