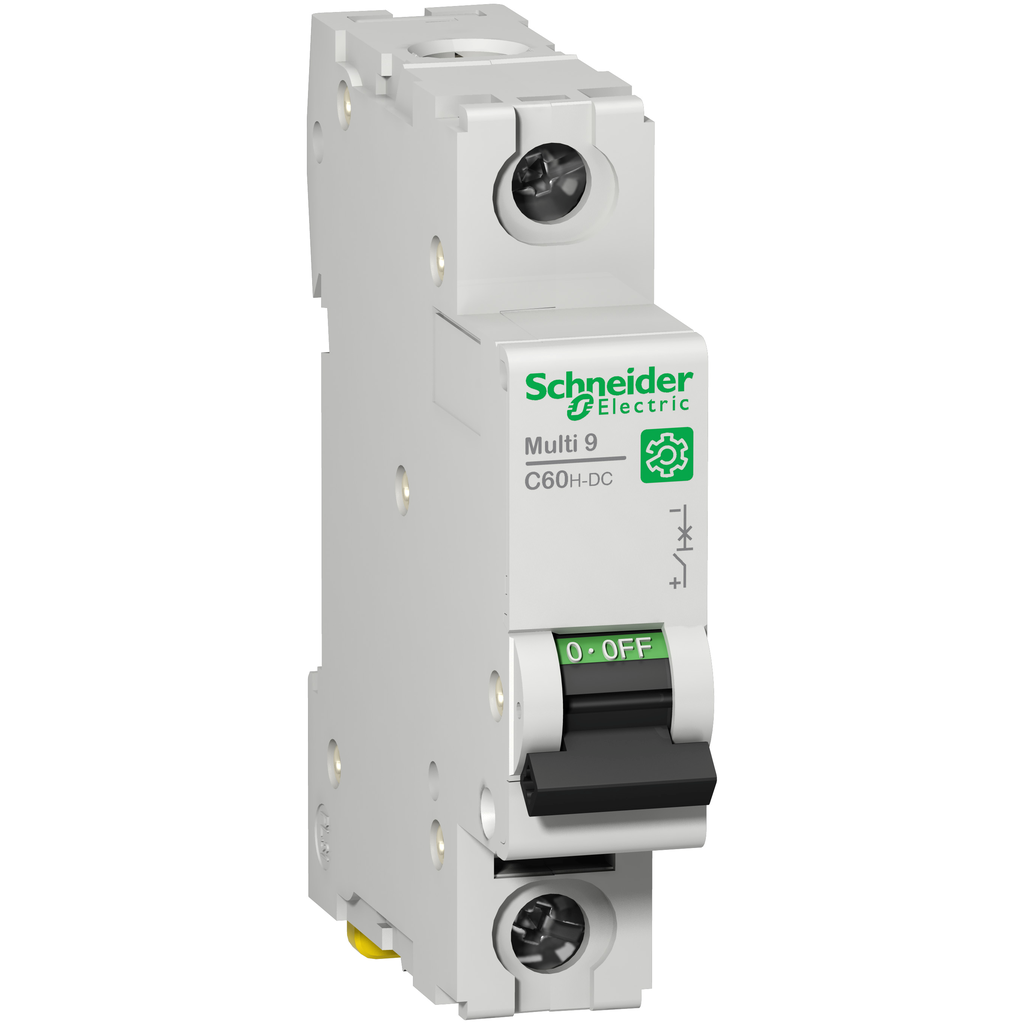

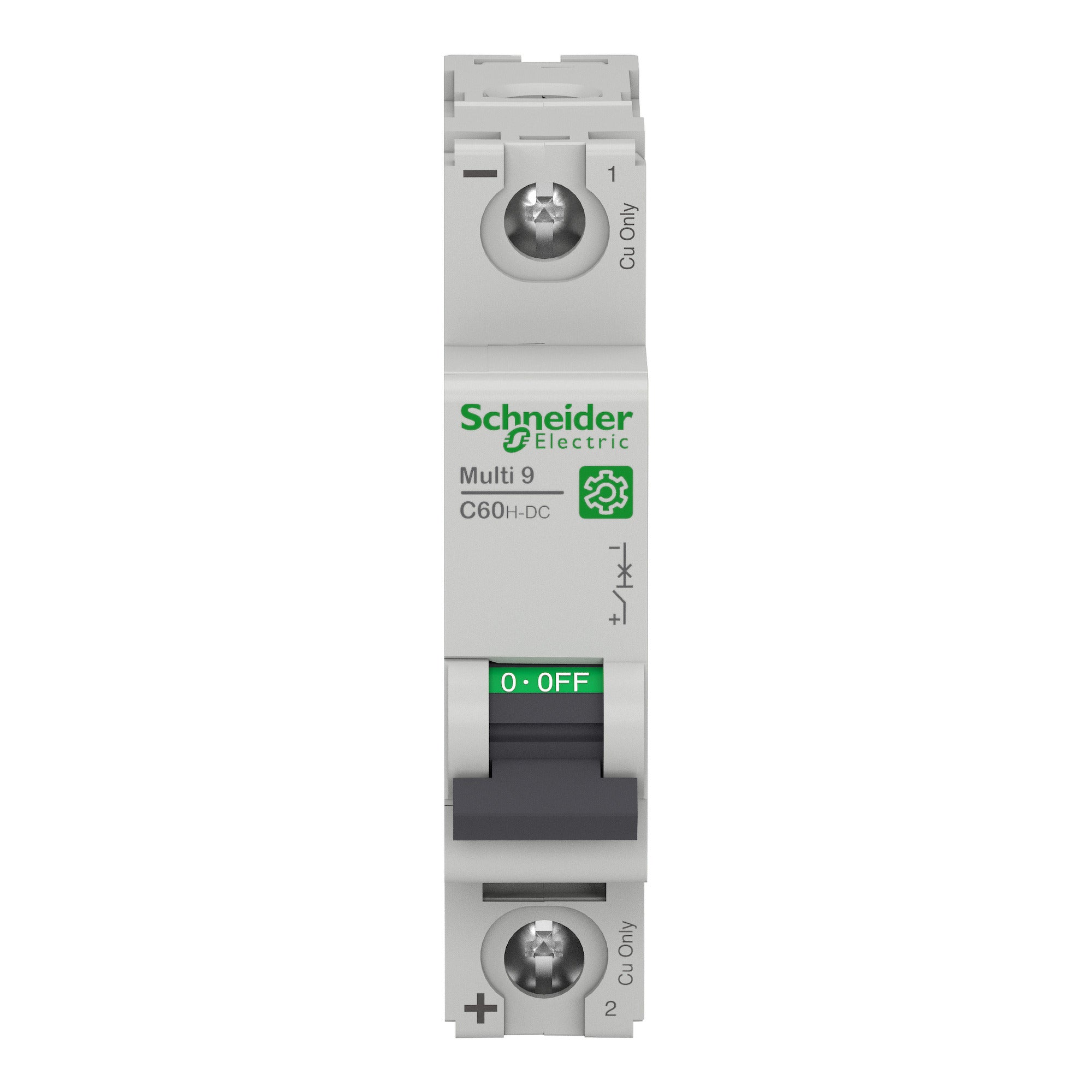

Schneider Electric M9U21106 Miniature Circuit Breaker 6A 1P C Curve Replacement MPN

Product Description

Schneider Electric M9U21106 is a low voltage miniature circuit breaker (MCB) designed for direct current applications. This device features a single pole with a rated current of six amps and a C tripping curve. It provides effective protection against short circuits, earth leakage, and overloads, making it suitable for OEMs and control panel builders.

• Electrical endurance of up to 3000 cycles
• Rated insulation voltage of 500VDC
• Meets EN/IEC 60947-2 standards

Product Highlights

This circuit breaker is designed to enhance safety and protect both people and equipment from electrical threats. Its compact design allows for direct mounting on a DIN rail, facilitating easy installation in various environments.

Product Information

Standard Information

• Catalog Number: M9U21106
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit-breaker
• Voltage Rating: 250VDC
• Dimensions: Width 18mm, Height 81mm, Depth 73mm
• Weight: 0.128kg
• Operating Temperature: -25C to 70C
• Storage Temperature: -40C to 85C
• Number of Poles: 1 Pole
• GTIN: 03606480741623
