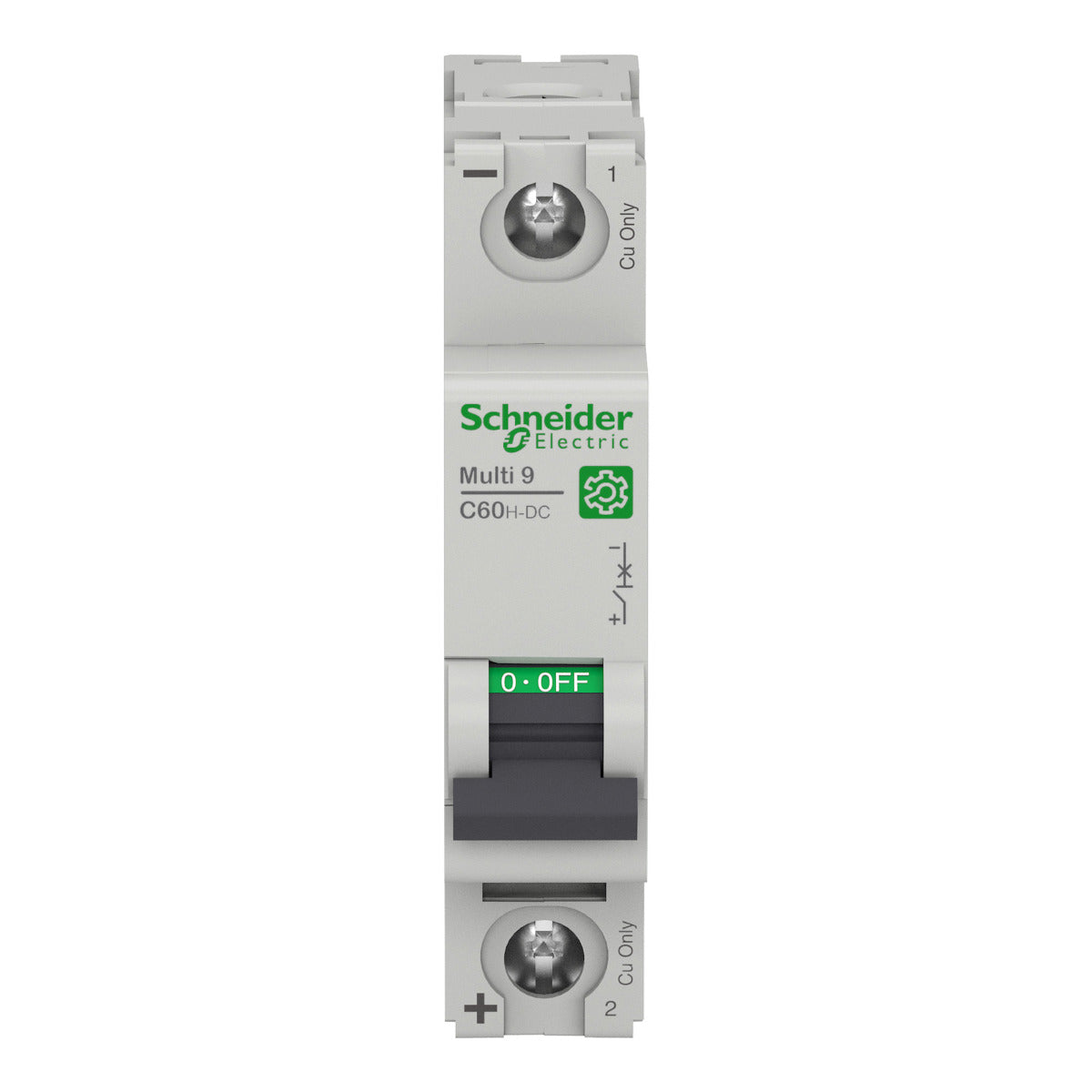

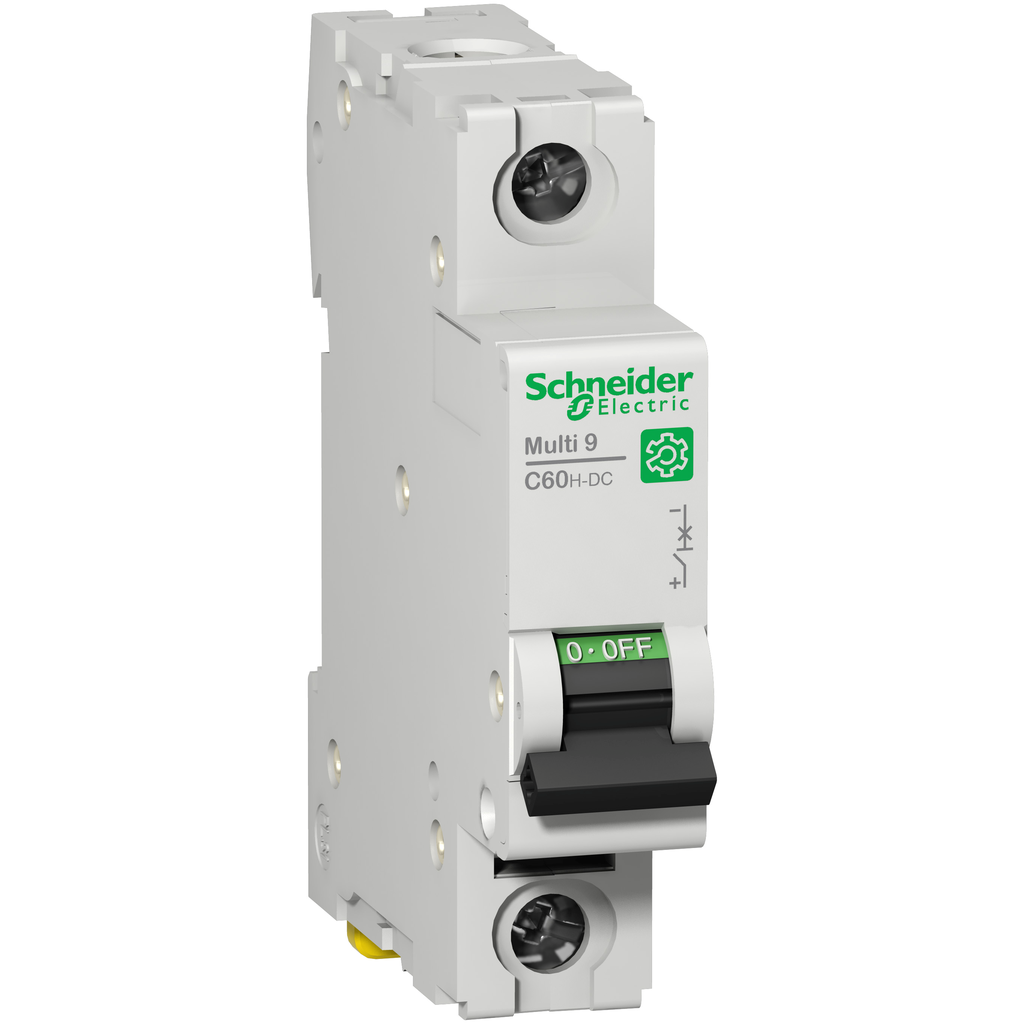

Schneider Electric M9U21102 Miniature Circuit Breaker MCB Multi9 C60H-DC 1P 2A C Curve

Product Description

Schneider Electric presents the M9U21102 Miniature Circuit Breaker (MCB) designed for direct current applications. This Compact MCB is a 1-pole with a rated current of 2 Amps and a C tripping curve, providing reliable protection against electrical faults.

• Rated for short circuit breaking capacity up to 10kA at 220VDC.
• Electrical endurance of 3000 cycles and mechanical endurance of 20000 cycles.
• Conforms to EN/IEC standards improving safety and preventing electrical hazards.

Product Highlights

The M9U21102 is ideal for Original Equipment Manufacturers (OEM) and control panel builders. It is designed for easy installation on a DIN rail and provides essential protection against short circuits, overloads, and earth leakage.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Singapore

Technical Specifications

• Catalog Number: M9U21102
• Rated Insulation Voltage: 500VDC
• Rated Operational Voltage: 250VDC
• Impulsive Withstand Voltage: 6kV
• Width: 18mm
• Height: 81mm
• Depth: 73mm
• Weight: 0.128kg
• IP Rating: IP20
• Operating Temperature: -25°C to 70°C
• Storage Temperature: -40°C to 85°C
• Pollution Degree: 3
