Schneider Electric M9LC320 surge arrester cart

Product Description

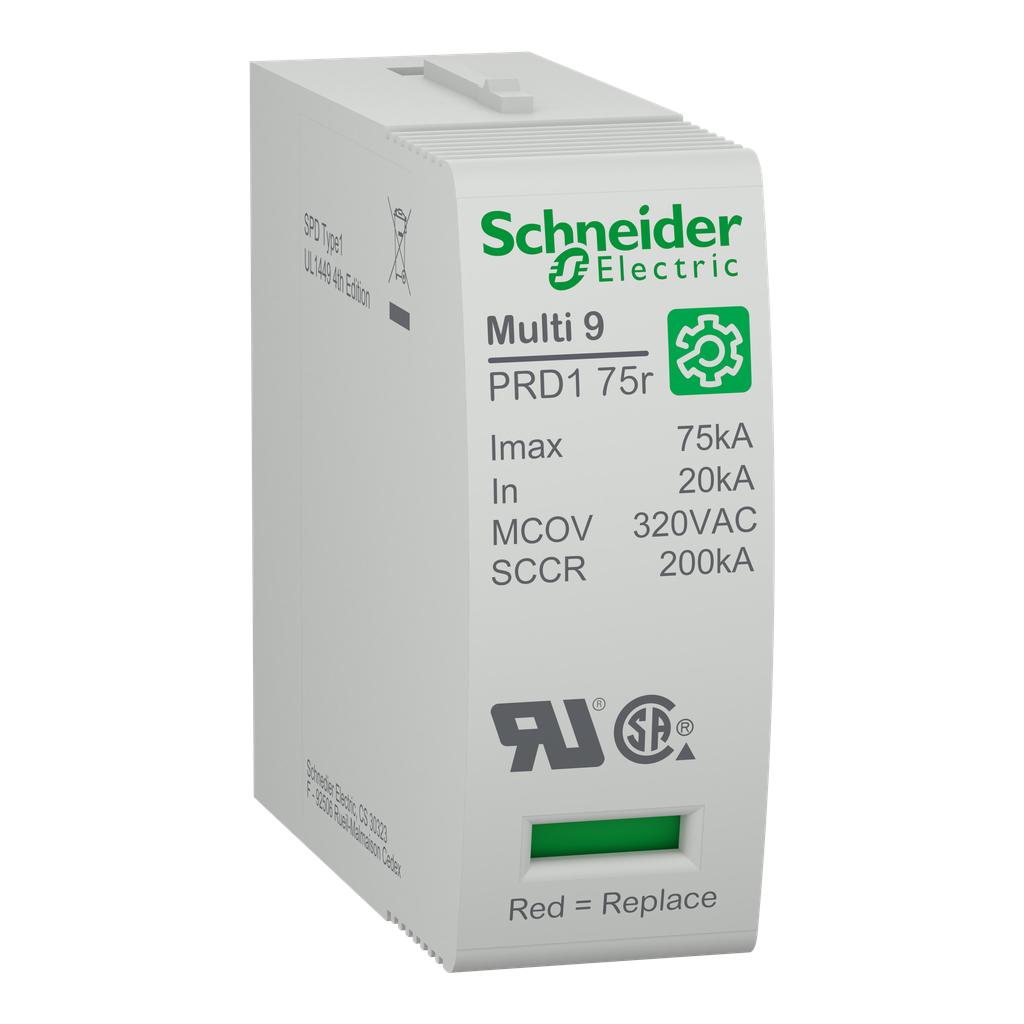

Schneider Electric M9LC320 is a surge arrester cartridge for the Multi9 PRD1 75r surge protection device. It offers reliable overvoltage protection with a maximum discharge current of seventy-five kiloamperes. The device supports nominal discharge currents of twenty kiloamperes and can handle a maximum continuous operating voltage of three hundred twenty volts AC.

• Compatible with surge protecting device modules
• Dimensions: width of 17.5 millimeters, height of 45 millimeters, depth of 68.5 millimeters
• Operating temperature range: negative twenty-five degrees Celsius to sixty degrees Celsius

Product Highlights

This surge arrester cartridge features a maximum voltage protection level of one thousand volts and a degree of protection rated at NEMA 1. The device is compact, using two pitches of nine millimeters, and is compliant with the UL 1449 standard.

Product Information

Standard Information

• Brand: Schneider Electric
• Category: Surge Protective Devices

Technical Specifications

• Catalog Number: M9LC320
• Manufacturer: Schneider Electric
• GTIN: 03606481586100
• Operating Voltage: 320VAC
• Discharge Current: 75kA max, 20kA nominal
• Max Protection Level: 1000V
• Color: Gray (RAL 7035)
• Net Weight: 82g
• Storage Temperature: -40 to 85 degrees Celsius
