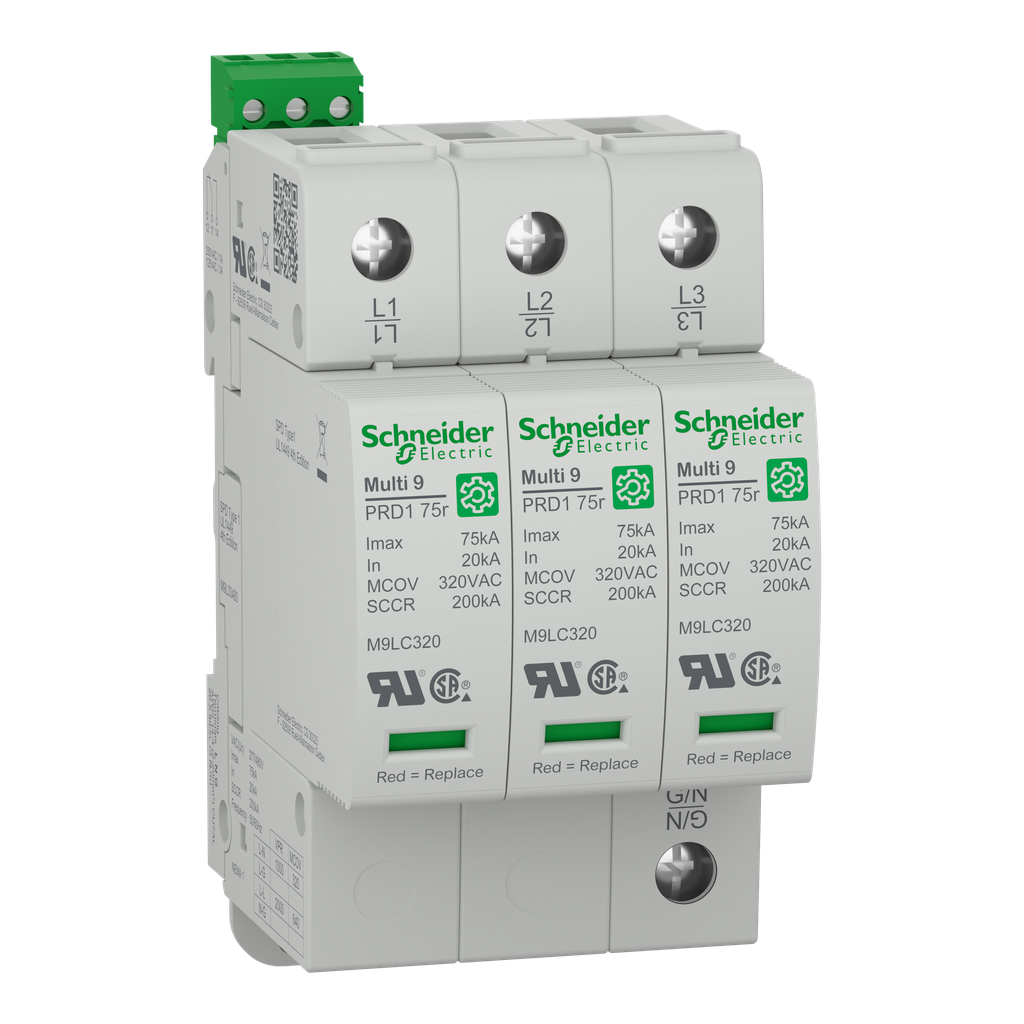

Schneider Electric M9L33480 surge arrester, Multi9 PRD1 75kA

Product Description

This Schneider Electric surge arrester, MPN M9L33480, provides surge protection in various electrical installations. It is suitable for service entrance, branch panels, and control panel setups. This type 1 surge arrester connects to the electrical distribution network effectively.

• Maximum discharge current of seventy-five kA
• Operates at a maximum voltage of three hundred twenty VAC
• Can be mounted on DIN rail for easy installation

Product Highlights

Its design includes a maximum continuous operating voltage of three hundred twenty VAC. The protection level up to one thousand volts is achieved in common mode. This product meets the UL 1449 standard.

Product Information

Standard Information

• Catalog Number: M9L33480
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Type 1 surge arrester
• Width: Six pitches of nine mm
• Height: Ninety-one point seven mm
• Depth: Seventy-one point four mm
• Operating Temperature: Negative twenty-five degrees Celsius to sixty degrees Celsius
• Storage Temperature: Negative forty degrees Celsius to eighty-five degrees Celsius
• Weight: Five hundred twenty-two grams
• Protection Degree: NEMA 1
