Schneider Electric M9F53308 Miniature Circuit Breaker MCB Multi9 C60BPR 3P 8A D Curve 10kA UL489 10kA IEC/EN 60947-2

Product Description

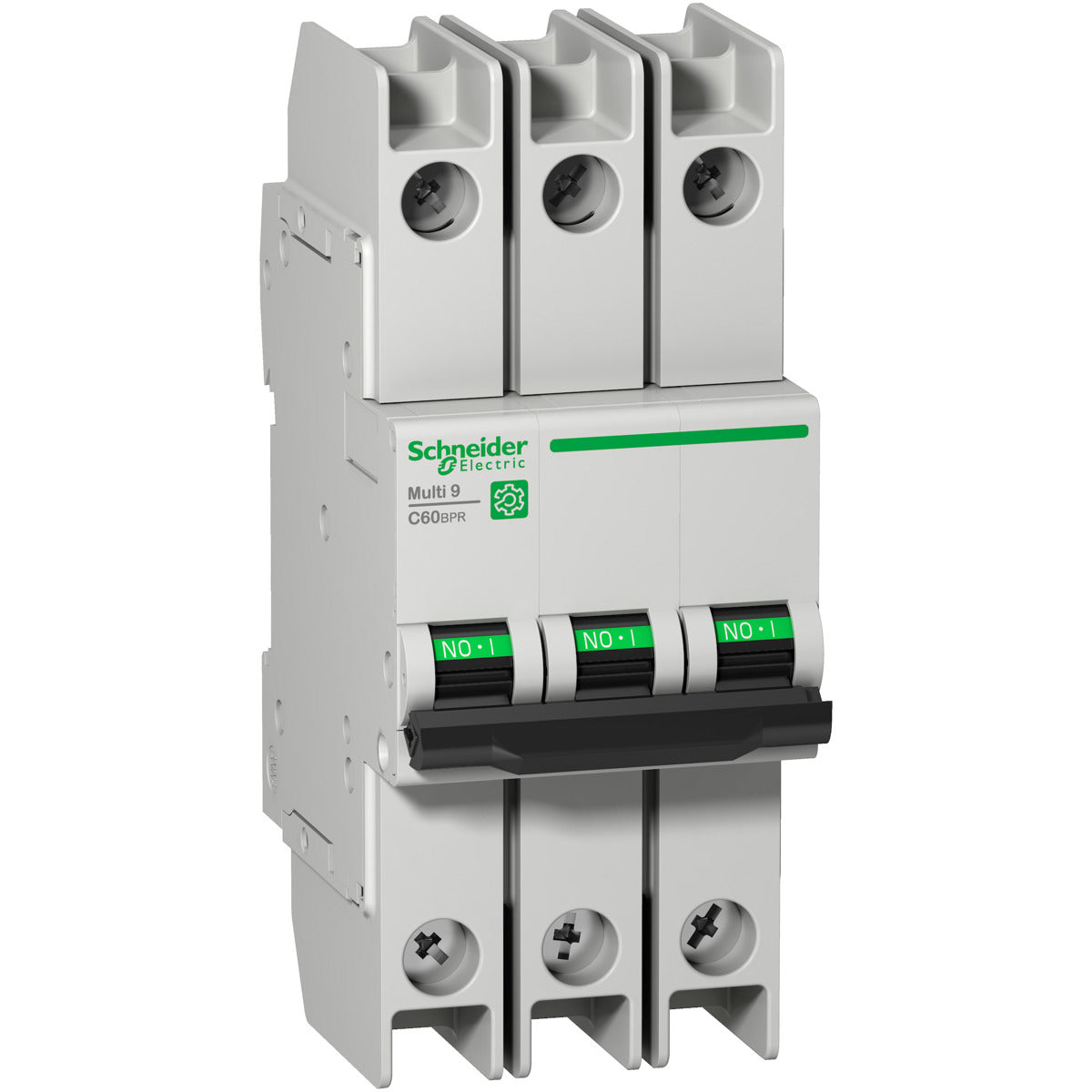

The Schneider Electric M9F53308 is a low voltage miniature circuit breaker (MCB). This device is a three-pole (3P) circuit breaker with a current rating of eight amps (8A) and a D tripping curve. It features a rated short circuit breaking capacity of up to ten kiloamperes (10kA) at four hundred fifteen volts AC (415VAC), complying with both EN/IEC 60947-2 and EN/IEC 60898-1 standards.

• Three protected poles for enhanced safety.
• Electrical endurance rated for up to 10,000 cycles.
• Can be mounted on a DIN rail for easy installation.

Product Highlights

This device offers superior protection from electrical threats, including short circuits and overloads, making it suitable for OEMs and control panel builders.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: United States

Technical Specifications

• Catalog Number: M9F53308
• Rated Current: 8A
• Tripping Curve: D
• Short Circuit Breaking Capacity: 10kA
• Operational Voltage: 240VAC
• Insulation Voltage: 500VAC
• Impulse Withstand Voltage: 6kV
• Width: 54mm
• Height: 127mm
• Depth: 72mm
• Protection Degree: IP20
• Operating Temperature Range: -30C to 70C
• Storage Temperature Range: -40C to 80C
