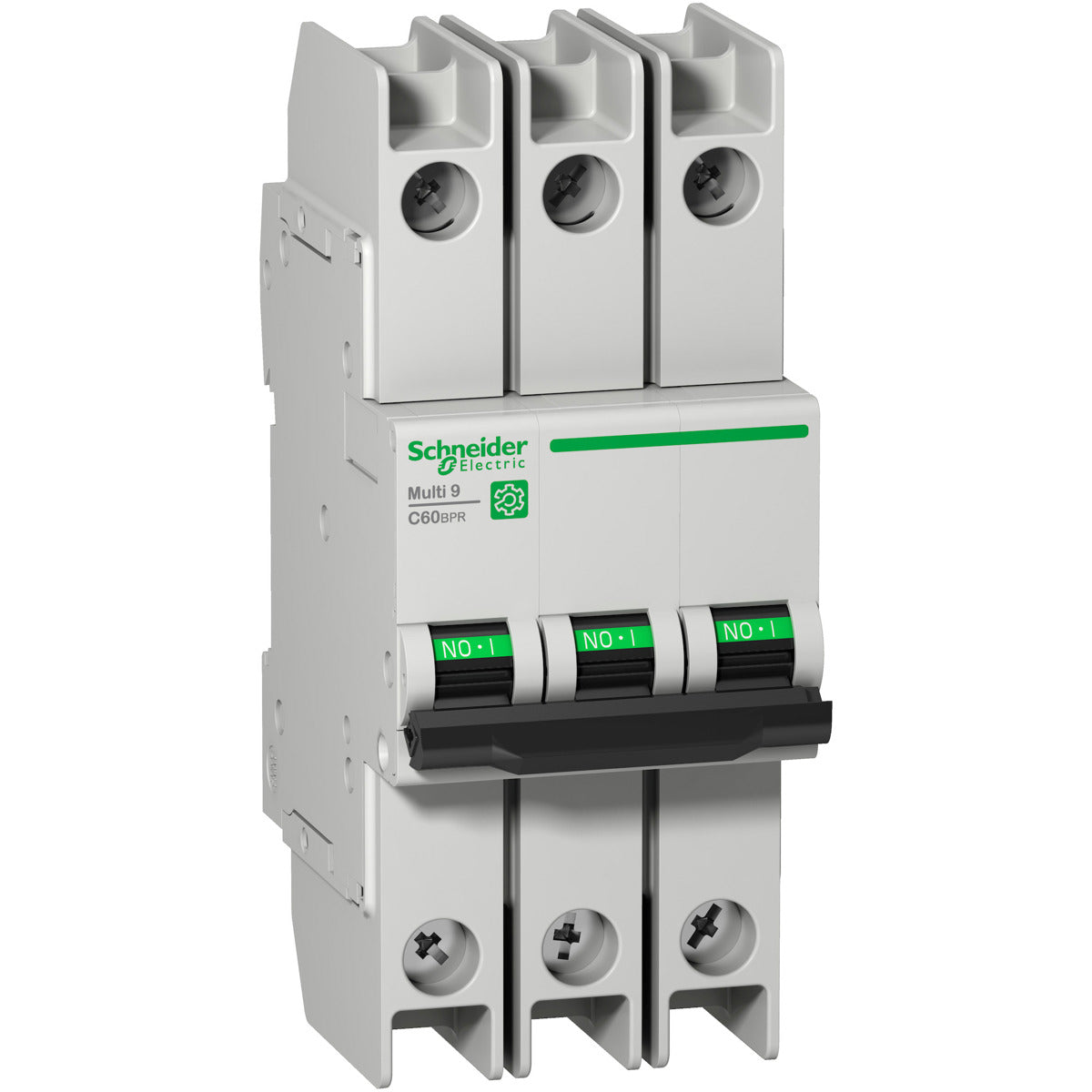

Schneider Electric M9F53306 Miniature Circuit Breaker MCB Multi9 C60BPR 3P 6A D Curve 10kA

Product Description

The Schneider Electric M9F53306 is a low voltage miniature circuit breaker (MCB). This 3P circuit breaker features three protected poles with a rated current of six amperes and a D tripping curve. It is capable of a short-circuit breaking capacity of up to ten kiloamperes at four hundred fifteen volts alternating current, complying with the EN/IEC 60947-2 standard. This MCB is suitable for both industrial and residential applications, providing protection against short circuits, earth leakage, and overloads.

This circuit breaker is ideal for original equipment manufacturers (OEM) and control panel builders. It offers a mechanical endurance rating of twenty thousand cycles and an electrical endurance rating of ten thousand cycles. Its operational voltage is two hundred forty volts alternating current, with a rated insulation voltage of five hundred volts and a rated impulse withstand voltage of six kilovolts. The M9F53306 can be easily mounted on a DIN rail and occupies six pitches of nine millimeters.

• Protects against short circuits, overloads, and earth leakage
• Designed for OEMs and control panel manufacturers
• DIN rail mountable with a compact design

Product Highlights

This product enhances safety by protecting both people and equipment from electrical threats.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: M9F53306
• Rated Current: 6A
• Tripping Curve: D
• Breaking Capacity: 10kA
• Width: 54mm
• Height: 127mm
• Depth: 72mm
• Protection Degree: IP20
• Operating Temperature: -30°C to 70°C
