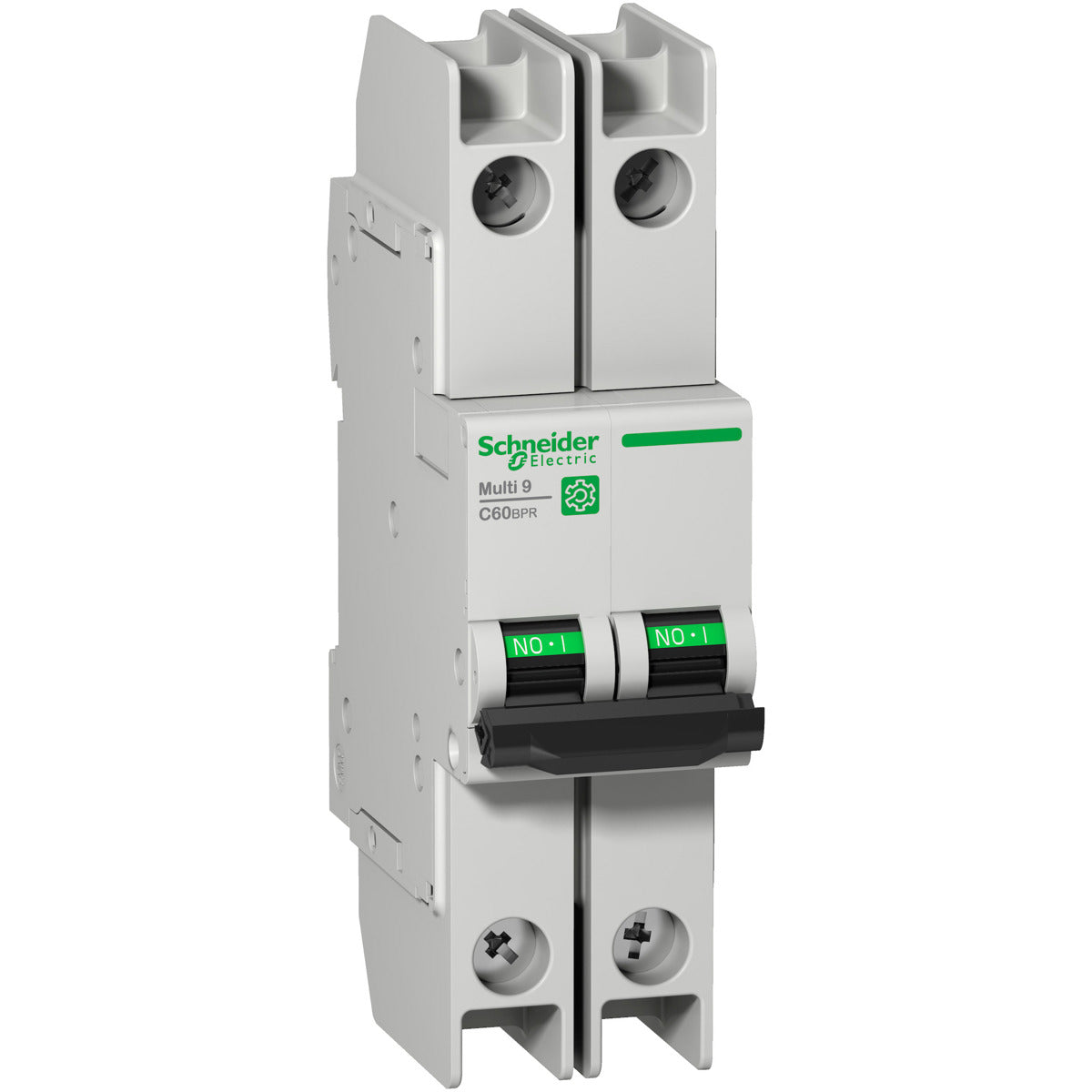

Schneider Electric M9F53204 Miniature Circuit Breaker (MCB), 2P, 4A, D Curve, 10kA

Product Description

This Schneider Electric M9F53204 is a low voltage miniature circuit breaker, also known as an MCB. It is designed to provide protection for electrical circuits against overload, short circuit, and earth leakage. This product features two poles with a rated current of four amperes and a D tripping curve. The short circuit breaking capacity reaches up to ten kiloamperes at four hundred fifteen volts. The M9F53204 complies with industrial standard EN/IEC 60898-1 as well as residential standard EN/IEC 60947-2, ensuring reliable performance in various applications. It is suitable for original equipment manufacturers and control panel builders.

• Voltage Rating: 240VAC operational voltage
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles

Product Highlights

This miniature circuit breaker protects both people and equipment, providing essential safety in electrical systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: M9F53204

Technical Specifications

• Rated Insulation Voltage: 500VAC
• Impulse Withstand Voltage: 6kV
• Width: 36mm (4 pitches of 9mm)
• Height: 127mm
• Depth: 72mm
• Pollution Degree: 3
• Color: Light Grey (RAL7035)
• IP Degree of Protection: IP20
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
