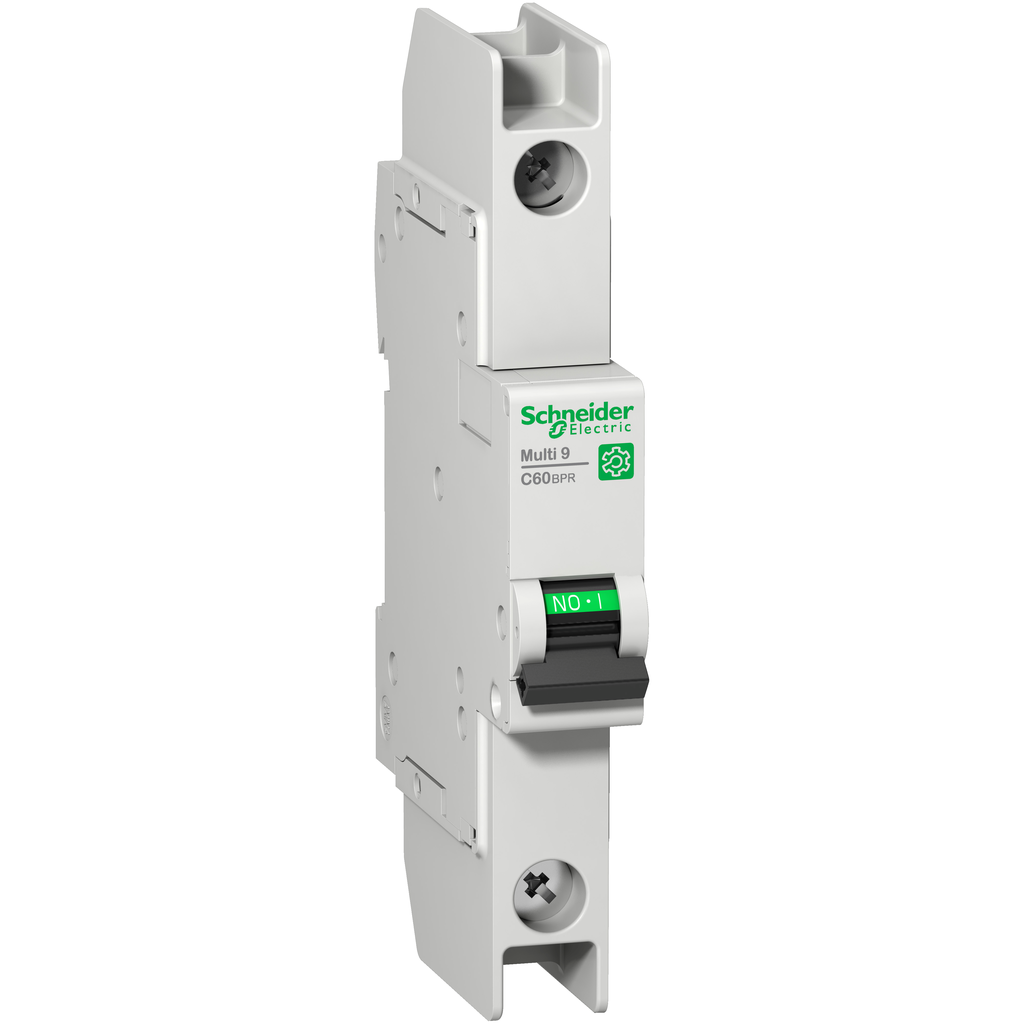

Schneider Electric M9F53120 Miniature Circuit Breaker 20A D Curve

Product Description

The Schneider Electric M9F53120 is a miniature circuit breaker designed for low voltage applications. This device is a 1 pole circuit breaker with a rated current of 20 Amps and a D tripping curve. It complies with EN/IEC 60947-2 standards and can handle a short circuit breaking capacity of up to 3kA at 415VAC.

• Designed for protection against short circuits and overloads
• Rated insulation voltage of 500VAC
• Operational voltage of 240VAC

Product Highlights

This miniature circuit breaker provides reliable protection for both people and equipment in residential and industrial settings. It features an electrical endurance of 10,000 cycles and a mechanical endurance of 20,000 cycles, ensuring durability and longevity in various applications.

Product Information

Standard Information

• Catalog Number: M9F53120
• Brand: Schneider Electric

Technical Specifications

• Width: 2 pitches of 9mm
• Height: 127mm
• Depth: 72mm
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
• Protection Degree: IP20
• Country of Origin: France
• Rated Current: 20A
