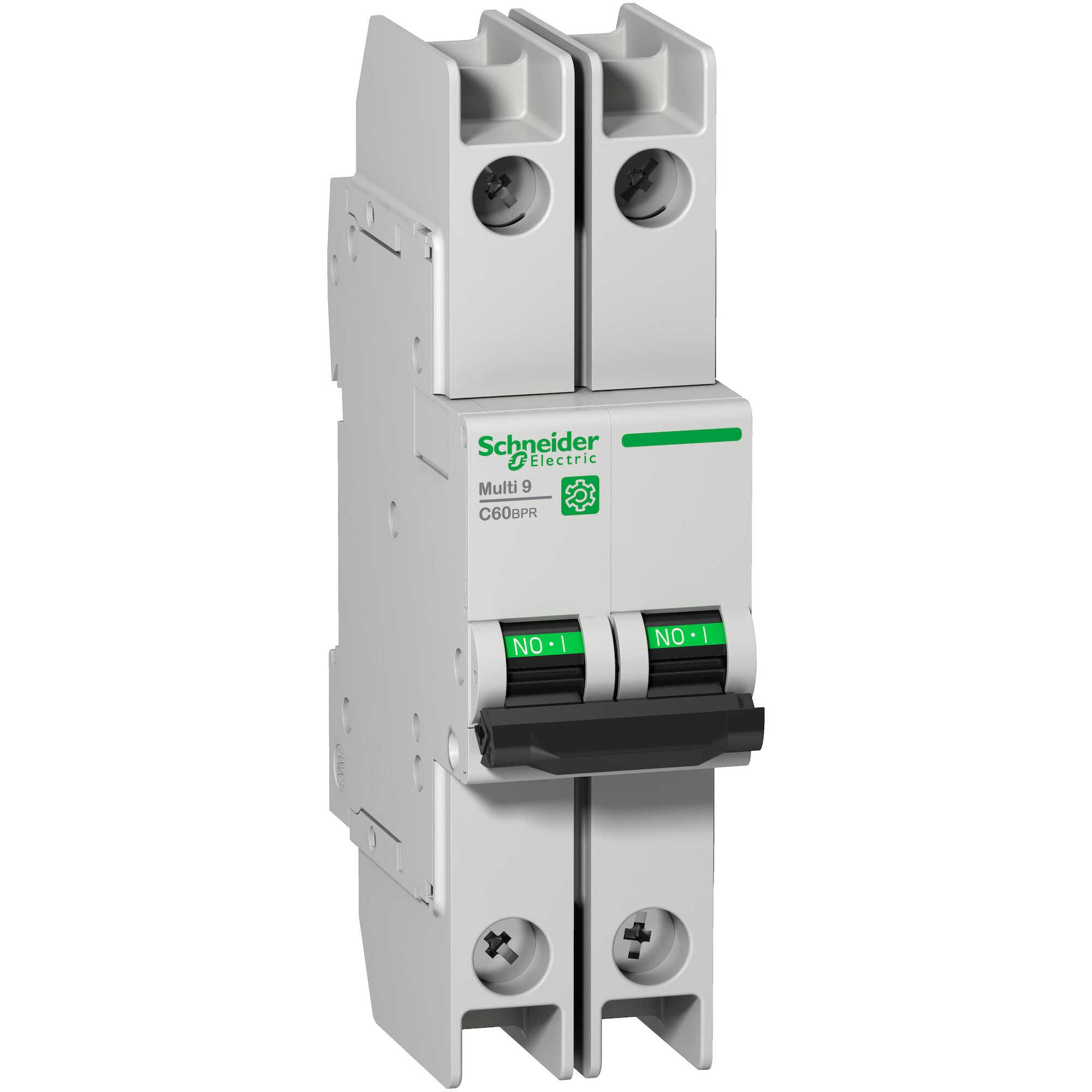

Schneider Electric M9F52215 Miniature Circuit Breaker MCB Multi9 C60BPR 2P 15A C curve 10kA UL489 10kA IEC/EN 60947-2

Product Description

This Schneider Electric M9F52215 Miniature Circuit Breaker (MCB) is designed for low voltage applications. It is a two-pole circuit breaker rated at 15 amperes with a C tripping curve. This MCB has a short circuit breaking capacity of 10kA at 415VAC, meeting the EN/IEC 60947-2 standard. It also complies with both industrial EN/IEC 60898-1 and residential EN/IEC 60947-2 standards.

• Designed to protect against short circuits, overloads, and earth leakage.
• Suitable for original equipment manufacturers and control panel builders.
• Capable of up to 10,000 electrical cycles and 20,000 mechanical cycles.

Product Highlights

This MCB is engineered to enhance electrical safety and protect both people and equipment from electrical hazards.

Product Information

Standard Information

• Catalog Number: M9F52215
• Brand: Schneider Electric

Technical Specifications

• Manufacturer: Schneider Electric
• Country of Origin: France
• Voltage Rating: 240VAC operational
• Insulation Voltage: 500VAC
• Impulse Withstand Voltage: 6kV
• Width: 36mm
• Height: 127mm
• Depth: 72mm
• Protection Class: IP20
• Operating Temperature: -30C to 70C
• Storage Temperature: -40C to 80C
• Pollution Degree: 3
