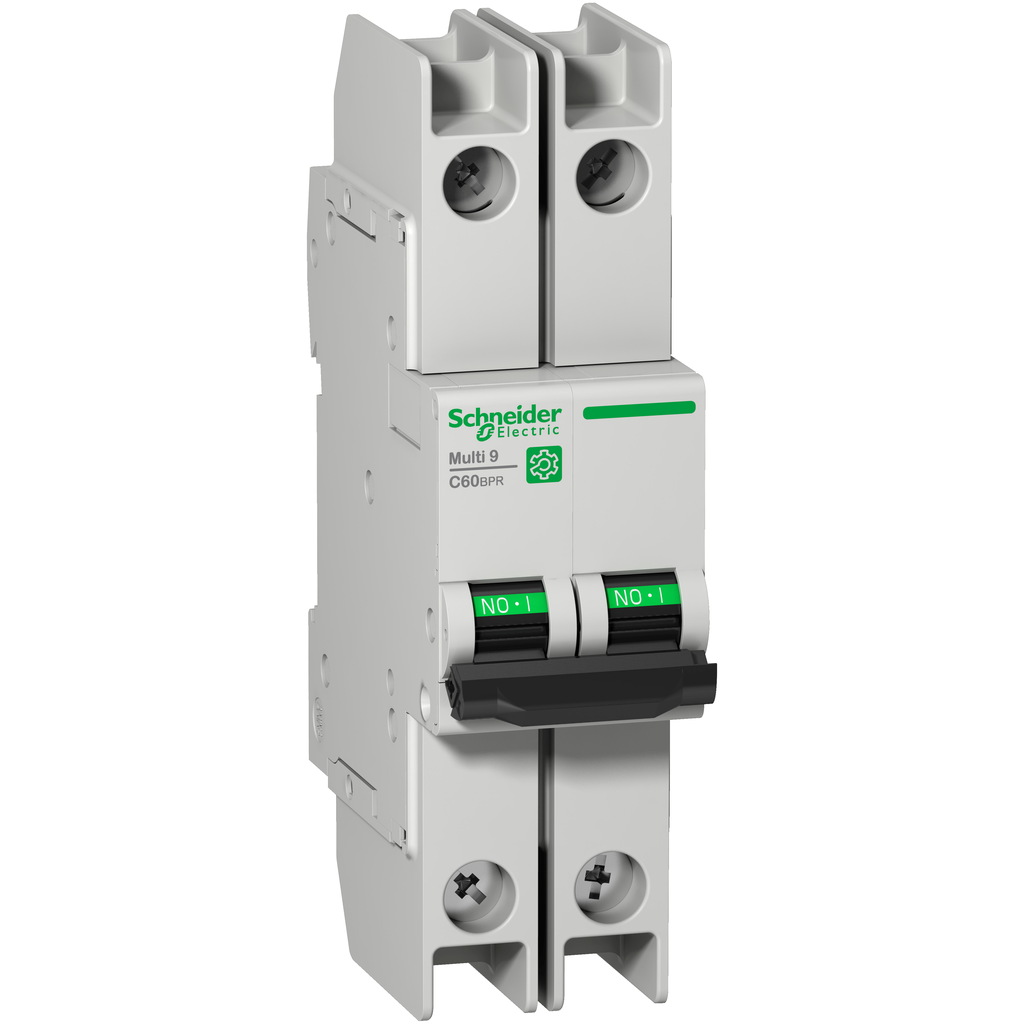

Schneider Electric M9F52206 Miniature Circuit Breaker 6A (2P) C curve 10kA

Product Description

The Schneider Electric M9F52206 is a low voltage miniature circuit breaker designed for reliable circuit protection. This model features a 2 pole configuration with a rated current of six amps and a C tripping curve. It can handle short circuit breaking capacities of up to ten kiloamperes at four hundred fifteen volts, complying with EN/IEC 60947-2 standards. This circuit breaker serves both industrial and residential needs, enhancing protection for installations and equipment.

• Protects against overload, short circuit, and earth leakage.
• Suitable for use in OEM and control panel applications.
• Can be mounted on standard DIN rails for easy installation.

Product Highlights

The M9F52206 is designed to endure up to ten thousand electrical cycles and twenty thousand mechanical cycles, ensuring longevity in operation. With an operational voltage of two hundred forty volts and an insulation voltage rating of five hundred volts, this breaker ensures safety and compliance in various applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Rated Current: 6 Amps
• Number of Poles: 2 Pole
• Width: 36 mm
• Height: 127 mm
• Depth: 72 mm
• Voltage Rating: 240 Volts
• Impulse Withstand Voltage: 6 kV
• Trip Type: Thermal-magnetic
• Protection Class: IP20
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
