SCHNEIDER ELECTRIC M9F52120 CIRCUIT BREAKERS
SCHNEIDER ELECTRIC M9F52120 CIRCUIT BREAKERS

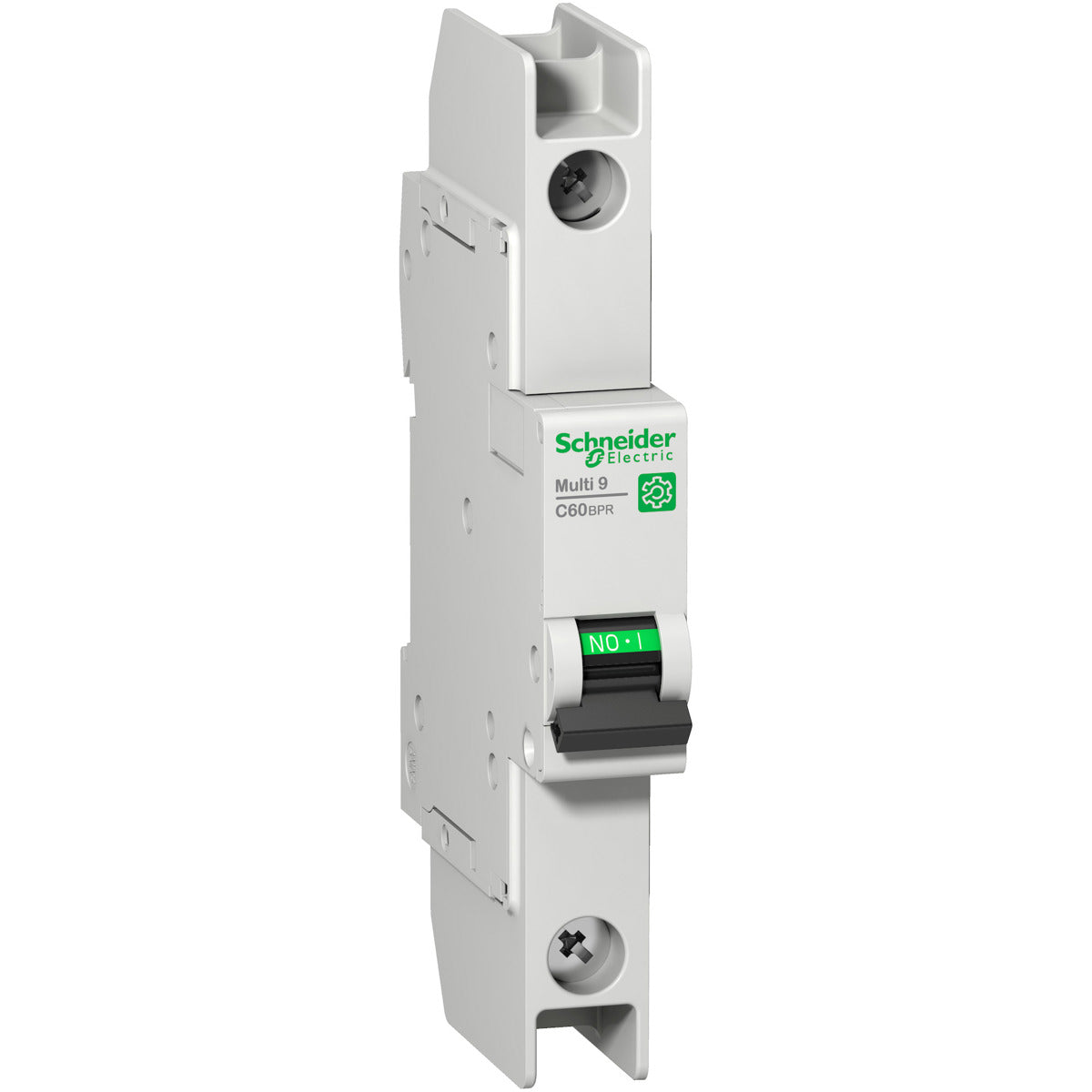

Schneider Electric M9F52120 Miniature Circuit Breaker MCB Multi9 C60BPR 1P 20A C Curve 14kA UL489 10kA IEC/EN 60947-2

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: M9F52120
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Schneider Electric M9F52120 is a miniature circuit breaker (MCB) designed for low voltage applications. It features a single pole with a rated current of twenty amperes and a C tripping curve. This circuit breaker can handle a short-circuit breaking capacity of three kiloamperes at four hundred fifteen volts, adhering to the EN/IEC 60947-2 standards.

  • 1P configuration with 20A rating
  • Electrical endurance of 10,000 cycles
  • Clips onto a DIN rail for simple installation

Product Highlights

This MCB protects against overloads, earth leakage, and short circuits, ensuring safety for both equipment and people. It is built for original equipment manufacturers (OEMs) and control panel builders.

Product Information

Standard Information

  • Manufacturer: Schneider Electric
  • Catalog Number: M9F52120
Technical Specifications
Rated Voltage (Ue)
240VAC
Rated Insulation Voltage (Ui)
500VAC
Rated Impulse Withstand Voltage (Uimp)
6kV
Dimensions
Width 18mm, Height 127mm, Depth 72mm
IP Protection Degree
IP20
Operating Temperature
-30°C to 70°C
Storage Temperature
-40°C to 80°C
Color
Light Grey RAL7035
