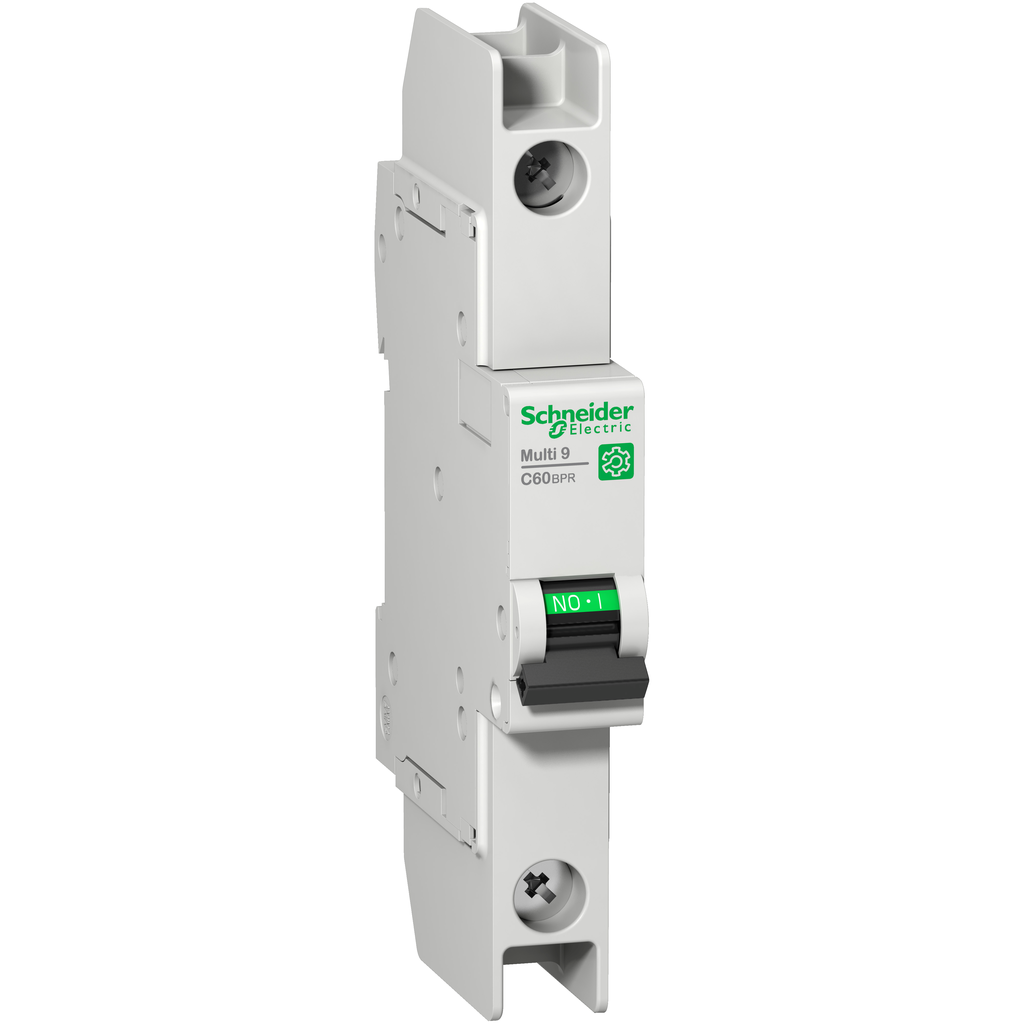

Schneider Electric M9F52104 Miniature Circuit Breaker 4 Amp Single Pole Clip-On

Product Description

Schneider Electric presents the M9F52104, a reliable Miniature Circuit Breaker designed to offer enhanced electrical protection. Ideal for a variety of applications, this breaker is tailored for both industrial and residential environments.

• Provides protection against short circuits, earth leakage, and overload.
• Designed for easy installation on a DIN rail with a clip-on mounting type.
• Robust build capable of withstanding harsh conditions with operational temperatures ranging from -30 degrees Celsius to 70 degrees Celsius.

Product Highlights

The Schneider Electric M9F52102 features a compact design with dimensions of 18 mm in width by 127 mm in height and 72 mm in depth. Its light grey color adheres to the RAL7035 standard, ensuring a clean and professional look in any setup.

Technical Specifications

• Current Rating: 4 Amps
• Operational Voltage: 240 VAC
• Impulse Withstand Voltage: 6 kV
• Protection Degree: IP20 on terminals
• Endurance: Electrical: 10000 cycles, Mechanical: 20000 cycles
• Compliance: EN/IEC 60898-1, EN/IEC 60947-2
