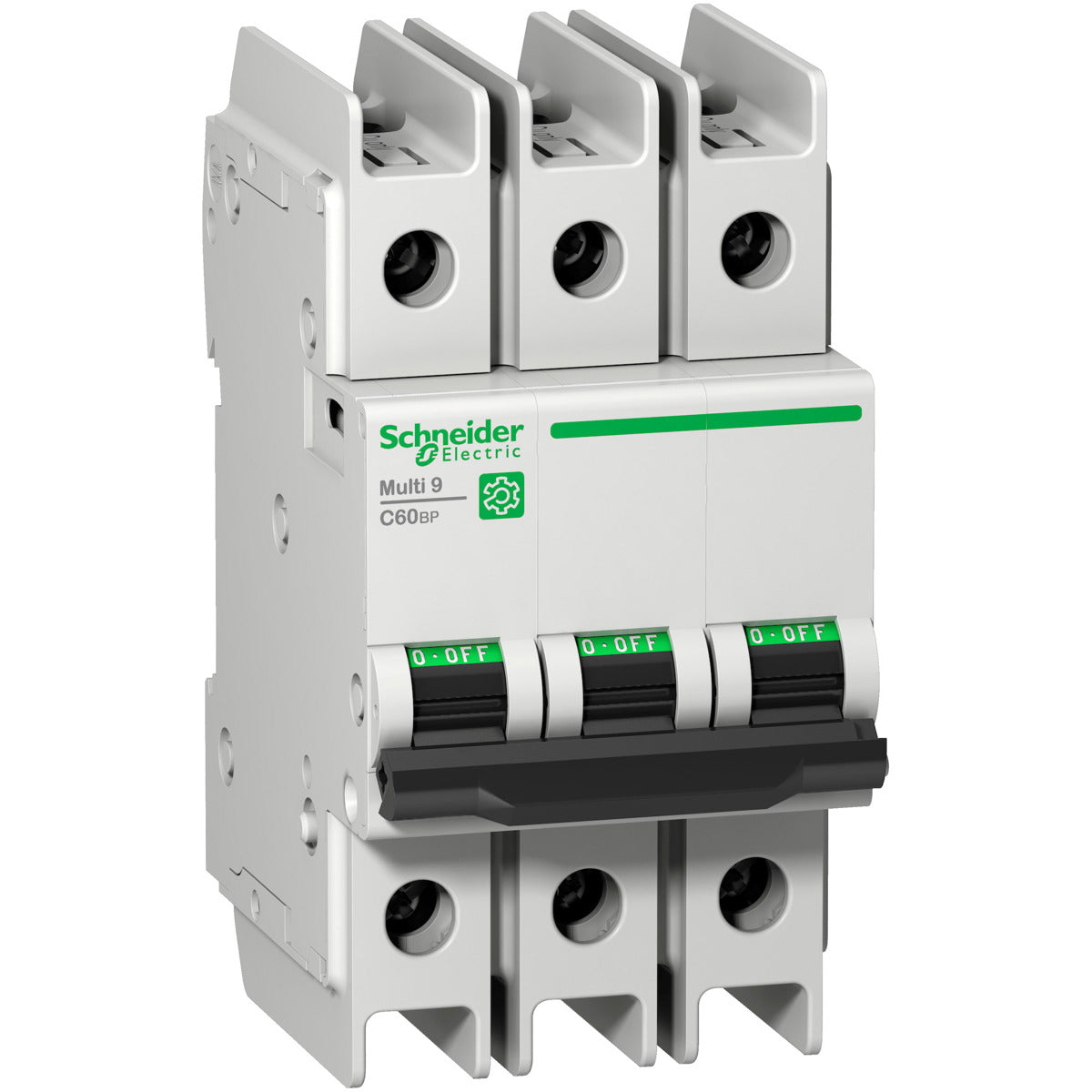

Schneider Electric M9F43306 Miniature Circuit Breaker 6A 3 Pole D Curve 10kA

Product Description

The Schneider Electric M9F43306 is a reliable miniature circuit breaker designed for efficient power distribution control. It features three poles and a 6A current rating with a D tripping curve, providing excellent protection against overloads and short circuits.

• Robust 10kA breaking capacity at 415VAC conforming to EN/IEC 60947-2 standards.
• Designed for industrial and residential applications, ensuring compliance with EN/IEC 60898-1 and EN/IEC 60947-2.
• High endurance with up to 10000 electrical cycles and 20000 mechanical cycles.

Product Highlights

This circuit breaker is geared towards OEMs and control panel builders, offering easy installation on DIN rails and robust protection features in a compact design.

Product Information

Standard Information

• Brand: Schneider Electric
• Color: Gray
• Mounting Type: Clip-On

Technical Specifications

• Width: 54 mm
• Height: 103 mm
• Depth: 72 mm
• Voltage: 240 Volt
• Amperage: 6 Amp
• Poles: 3 Pole
• Protection: IP20
• Operational Temperature: -30 to 70 degrees Celsius
