Schneider Electric M9F43302 Miniature Circuit Breaker 2A D Curve 10kA Replacement MPN

Product Description

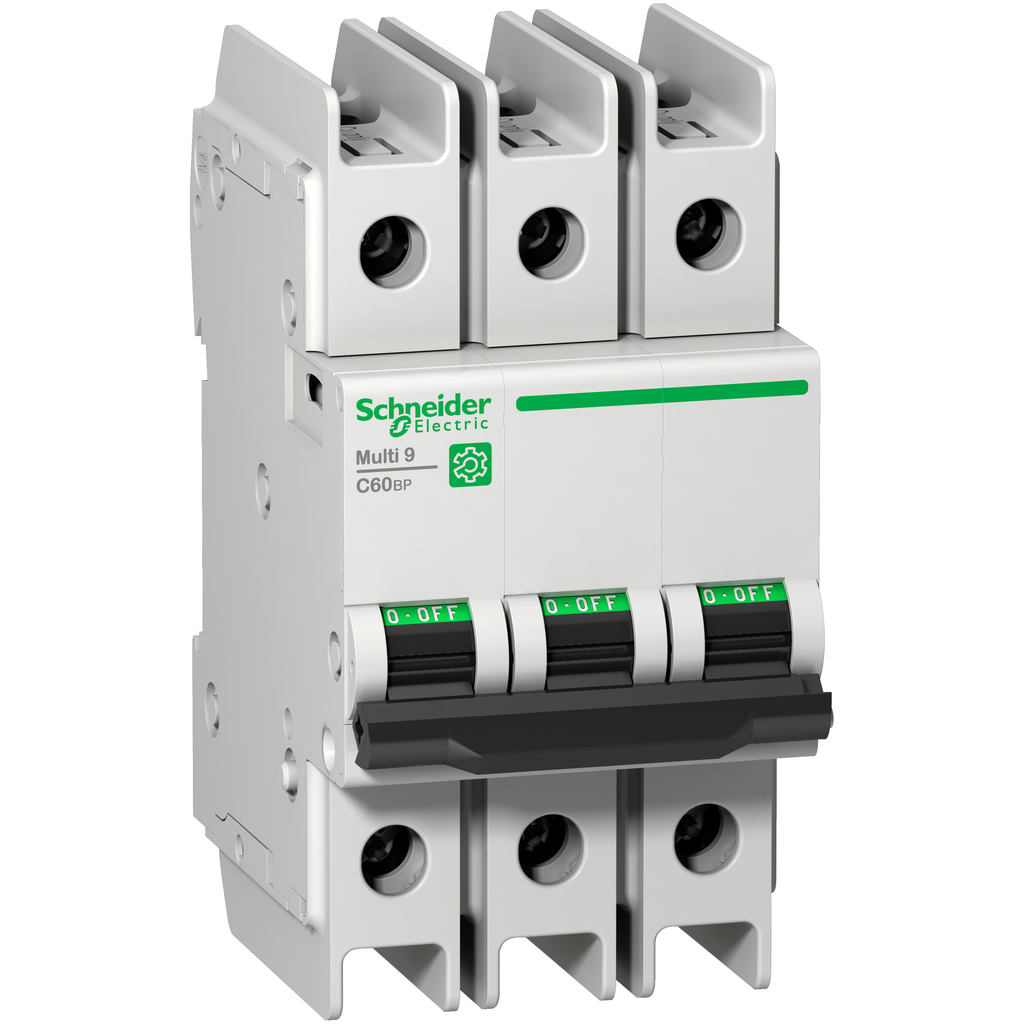

The Schneider Electric M9F43302 is a miniature circuit breaker designed for low voltage applications. It is a three-pole device with a rated current of two amps and a D tripping curve. This breaker can manage short circuit conditions effectively, with a breaking capacity of up to ten kiloamperes at four hundred fifteen volts. It adheres to industrial standards EN/IEC 60947-2 and residential standards EN/IEC 60898-1, ensuring reliable performance.

• Rated for two amps with three poles
• Breaking capacity of ten kiloamperes at four hundred fifteen volts
• Designed for original equipment manufacturers (OEM)

Product Highlights

This product features enhanced electrical protection against overloads, short circuits, and earth leakage. Its robust design allows for clipping onto a DIN rail for easy installation. Additionally, it has a mechanical endurance of twenty thousand cycles and electrical endurance of ten thousand cycles, making it suitable for high-demand environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: M9F43302

Technical Specifications

• Rated Current: 2 Amps
• Tripping Curve: D
• Breaking Capacity: 10kA
• Voltage Rating: 240VAC
• Insulation Voltage: 500VAC
• Impulse Withstand Voltage: 6kV
• Width: 54mm
• Height: 103mm
• Depth: 72mm
• Protection Degree: IP20
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
