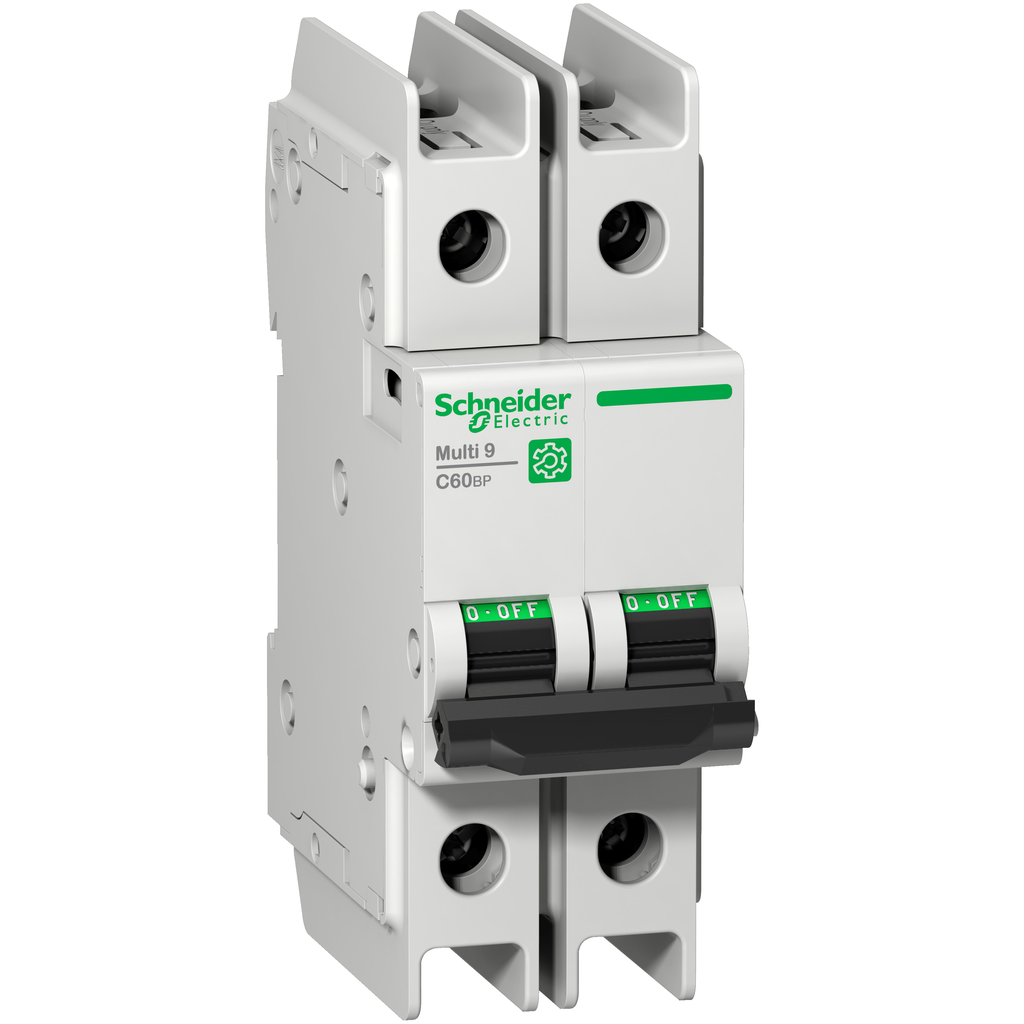

Schneider Electric M9F43206 Miniature Circuit Breaker (MCB) 2P 6A D Curve 10kA

Product Description

Schneider Electric M9F43206 is a low voltage miniature circuit breaker (MCB). It serves as a 2P circuit breaker with two protected poles and a rated current of six Amperes. This model features a D tripping curve. The device can handle a rated short circuit breaking capacity of up to ten kiloamperes at four hundred fifteen volts AC, meeting EN/IEC 60947-2 standards.

• Low voltage operation with a maximum current of 6 Amps.
• Protection against short circuit, earth leakage, and overload.
• Compatible with DIN rail mounting.

Product Highlights

This circuit breaker is suitable for both industrial and residential applications, ensuring compliance with standards like EN/IEC 60898-1.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: M9F43206
• Catalog Number: M9F43206
• Number of Poles: 2 Pole
• Rated Current: 6 Amp
• Rated Insulation Voltage: 500 Volt AC
• Rated Impulse Voltage: 6 kV
• Operating Voltage: 240 Volt AC
• Height: 103 mm
• Width: 36 mm
• Depth: 72 mm
• Electrical Endurance: 10000 cycles
• Mechanical Endurance: 20000 cycles
• Temperature Range: -30 C to 70 C
• Storage Temperature: -40 C to 80 C
