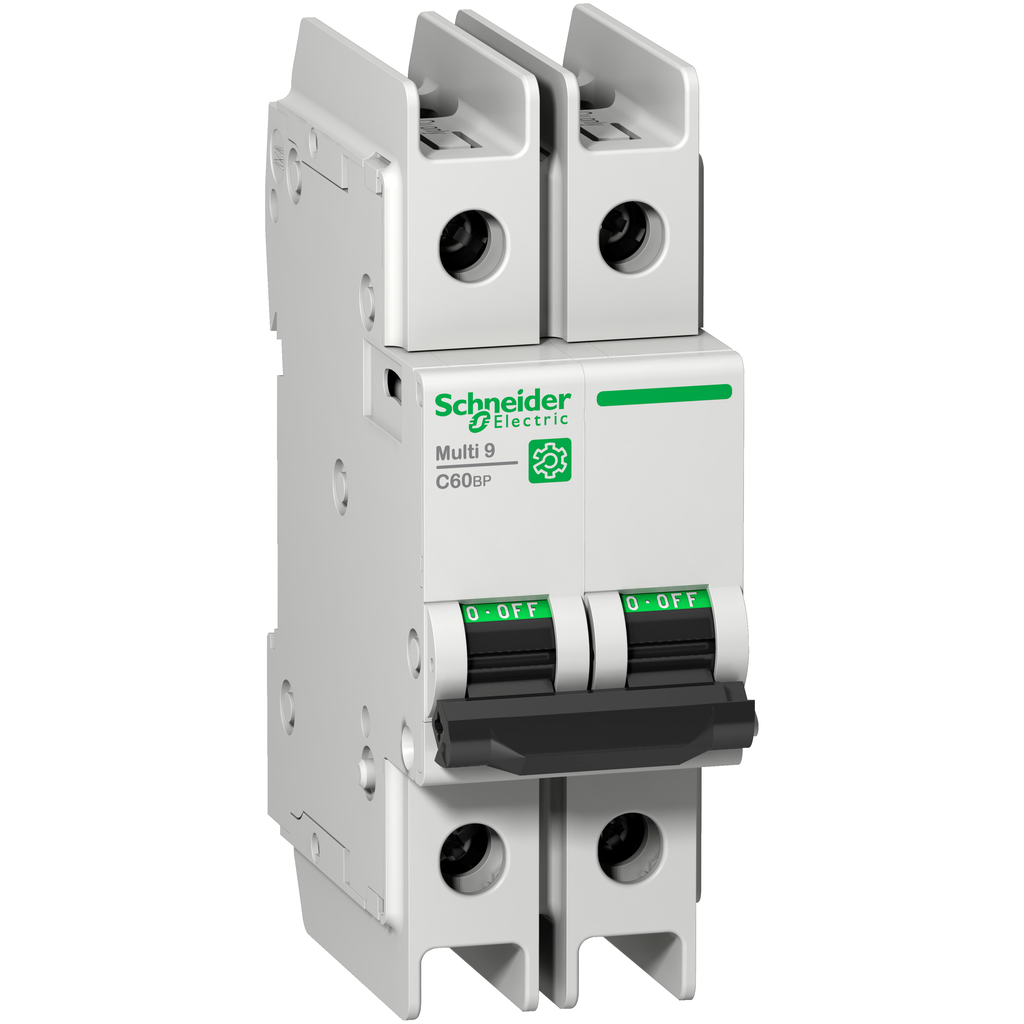

Schneider Electric M9F43201 Miniature Circuit Breaker 1A D Curve 10kA Replacement MPN

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: M9F43201
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Schneider Electric offers the M9F43201, a miniature circuit breaker designed for low voltage applications. This model is a two-pole circuit breaker rated for a maximum current of one ampere with a D tripping curve. It can handle a short circuit breaking capacity of up to ten kiloamperes at four hundred fifteen volts, in compliance with the EN/IEC 60947-2 standard.

  • Two protected poles.
  • Electrical endurance up to 10,000 cycles.
  • Mechanical endurance reaching 20,000 cycles.

Product Highlights

This circuit breaker is suitable for protecting electrical systems from short circuits, overloads, and earth leakage. It is designed for OEMs and panel builders, featuring a compact size that fits onto a DIN rail and complies with both industrial and residential standards.

Product Information

Standard Information

  • Brand: Schneider Electric
  • Manufactured By: Square-D / Schneider
Technical Specifications
Catalog Number
M9F43201
Number of Poles
2
Rated Current
1 A
Rated Insulation Voltage
500 VAC
Impulse Withstand Voltage
6 kV
Overall Dimensions
36 mm (W) x 103 mm (H) x 72 mm (D)
Operating Temperature
-30 °C to 70 °C
Storage Temperature
-40 °C to 80 °C
Protection Class
IP20 (as per IEC/EN 60529)
Country of Origin
France
