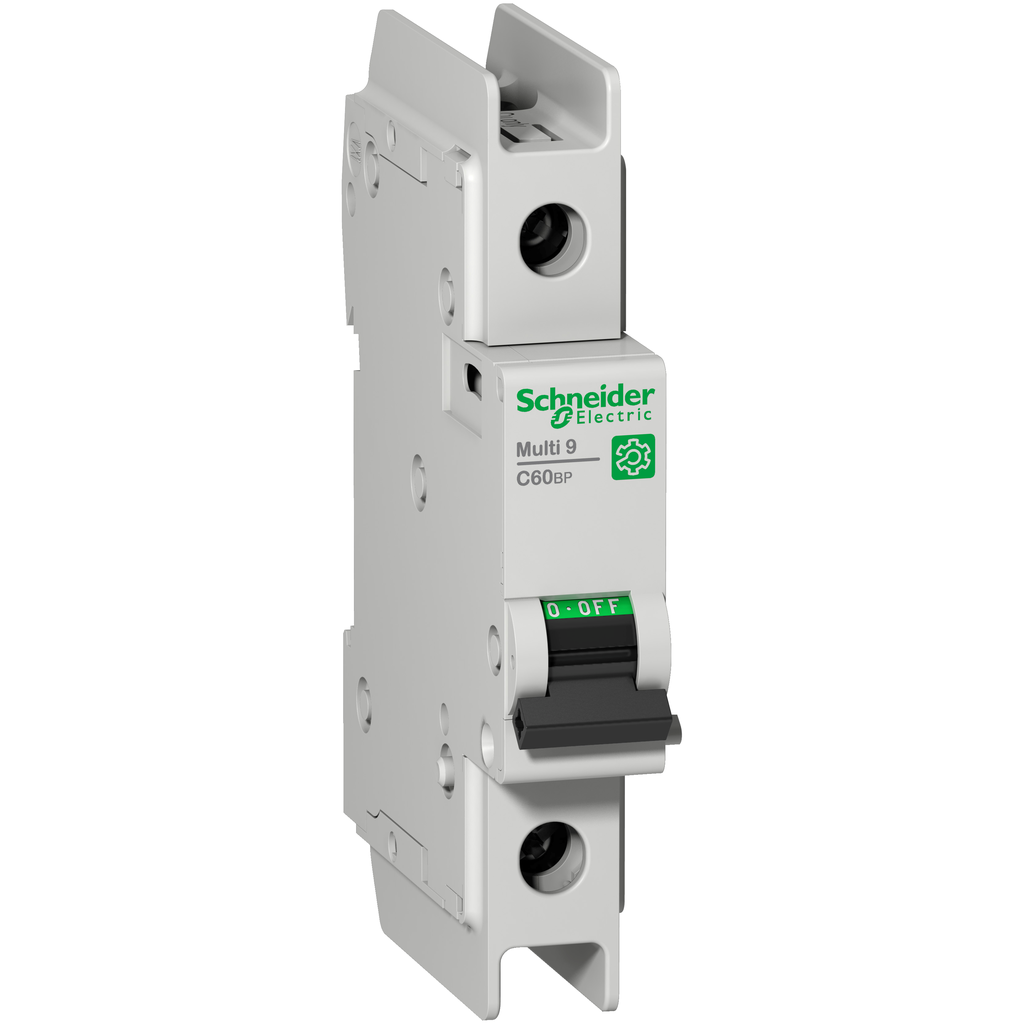

Schneider Electric M9F43105 Miniature Circuit Breaker 5A D Curve

Product Description

Schneider Electric M9F43105 is a low voltage miniature circuit breaker (MCB). It features a one-pole design with a rated current of five amps and a D tripping curve. This breaker has a short circuit breaking capacity of three kiloamperes at four hundred fifteen volts while conforming to EN/IEC 60947-2 standards. The M9F43105 ensures compliance with key standards including EN/IEC 60898-1 and EN/IEC 60947-2. It is ideal for protecting both people and equipment against electrical faults such as short circuits and overloads. The unit is suitable for original equipment manufacturers (OEM) and control panel builders. It offers high durability with electrical endurance up to ten thousand cycles and mechanical endurance reaching twenty thousand cycles. Designed for easy installation, it clips onto DIN rails.

• Designed for low voltage applications up to 240VAC.
• Light gray housing with dimensions of eighteen millimeters wide, one hundred three millimeters high, and seventy-two millimeters deep.
• Features IP20 degree of protection as per IEC/EN 60529 standards.

Product Highlights

This circuit breaker provides reliable protection against electrical faults and is easy to install in control panels and distribution boards.

Product Information

Standard Information

• Catalog Number: M9F43105
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit breaker
• Color: Gray
• Width: 18 mm
• Height: 103 mm
• Depth: 72 mm
• Operational Voltage: 240 Volt
• Amperage: 5 Amp
• Trip Type: Thermal-magnetic
