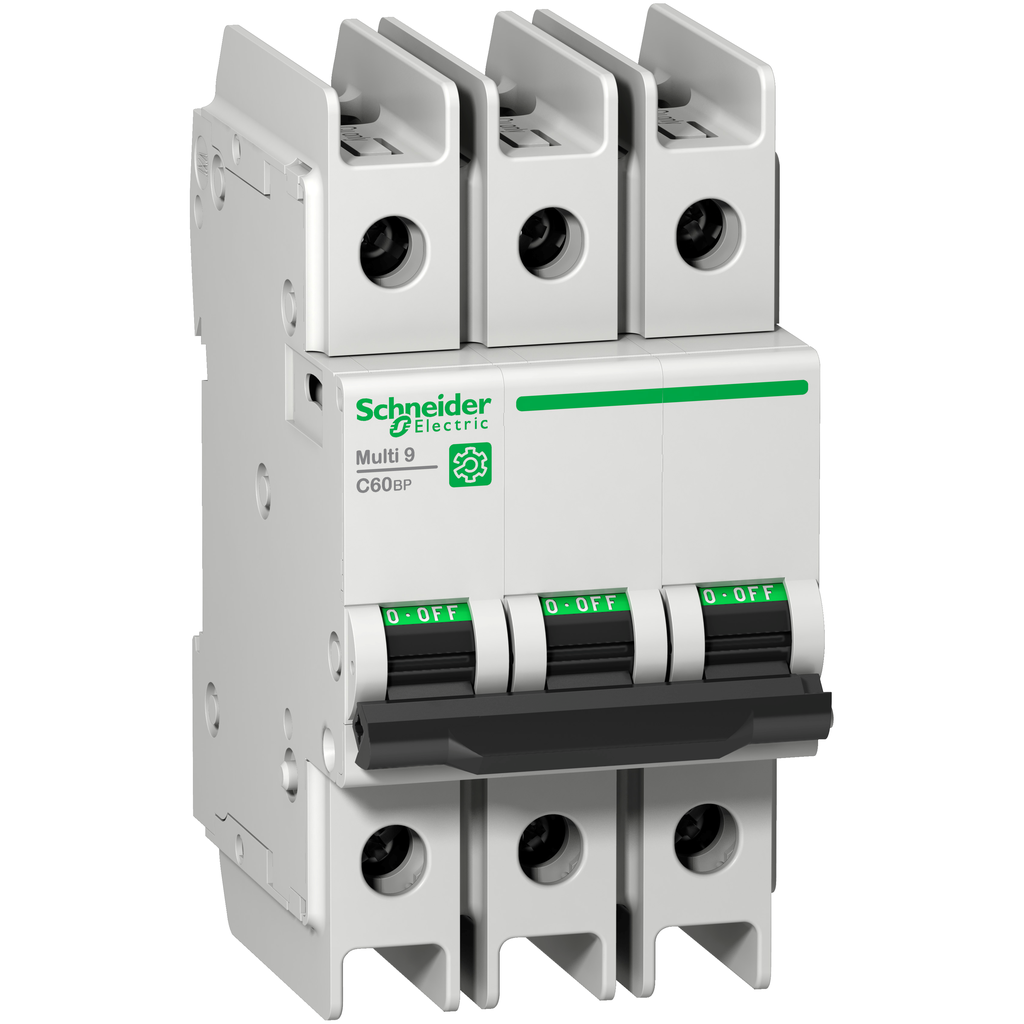

Schneider Electric M9F42305 Miniature Circuit Breaker 3P 5A C Curve 10kA

Product Description

The Schneider Electric M9F42305 is a low voltage miniature circuit breaker designed to offer reliable protection in electrical systems. This three-pole circuit breaker has a rated current of five amps and features a C tripping curve. It can withstand a short circuit breaking capacity of up to ten kA at four hundred fifteen volts alternating current, in compliance with EN/IEC 60947-2 standards. The device is suitable for both commercial and residential applications.

• 3P circuit breaker with five amps rated current
• Short circuit breaking capacity reaches 10kA at 415VAC
• Can be mounted on a standard DIN rail

Product Highlights

The M9F42305 circuit breaker is designed for use by original equipment manufacturers and control panel builders. It provides protection against short circuits, earth leakage, and overloads, contributing to the safety of electrical systems.

Product Information

Standard Information

• Model Number: M9F42305
• Brand: Schneider Electric

Technical Specifications

• Rated Insulation Voltage: 500VAC
• Impulse Withstand Voltage: 6kV
• Operational Voltage: 240VAC
• Electrical Endurance: 10000 cycles
• Mechanical Endurance: 20000 cycles
• Width: 54mm
• Height: 103mm
• Depth: 72mm
• Protection Degree: IP20
