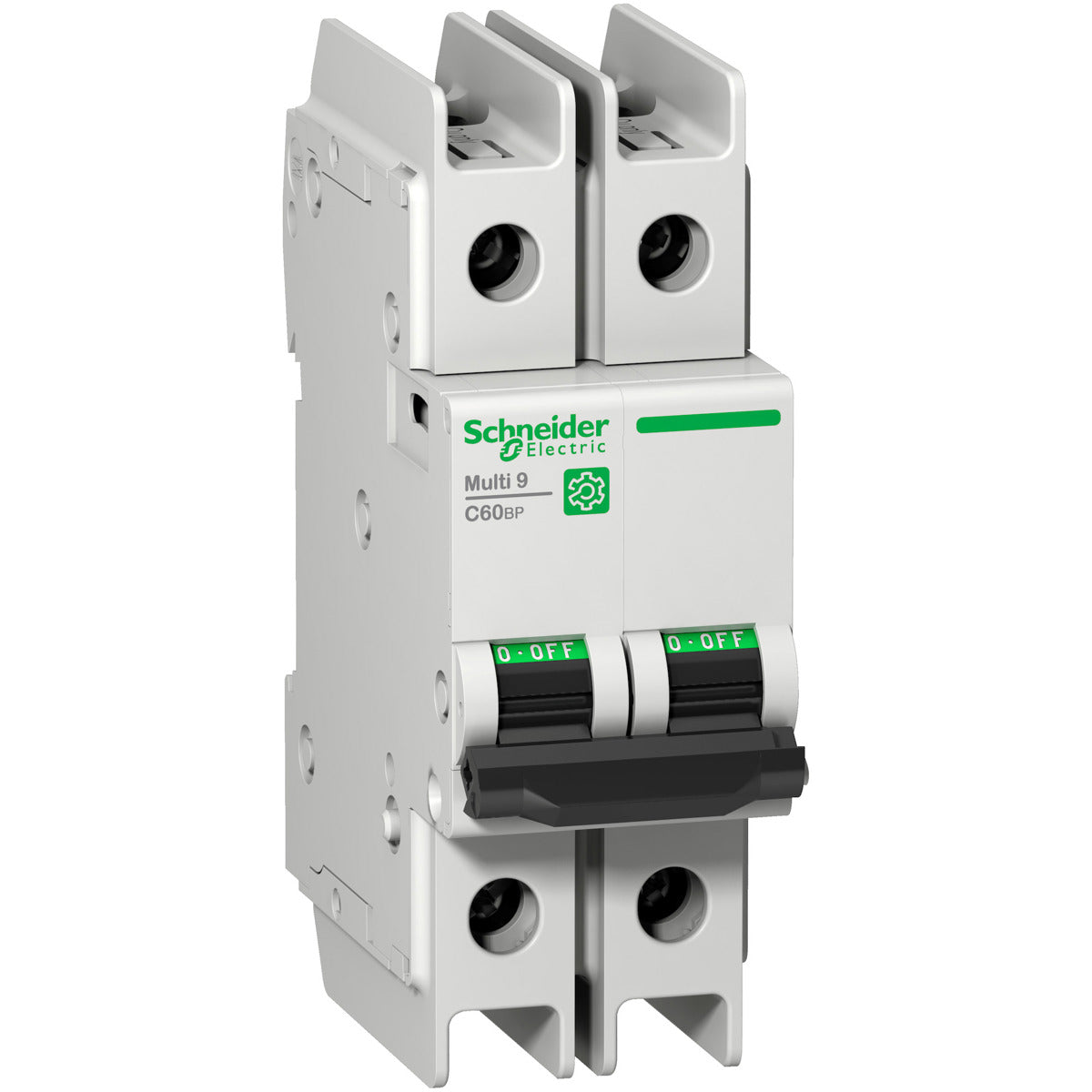

Schneider Electric M9F42245 Miniature Circuit Breaker MCB Multi9 C60BP 2P 45A C Curve 10kA

Product Description

The Schneider Electric M9F42245 is a miniature circuit breaker (MCB) designed for low voltage applications. This model features a two-pole configuration rated for forty-five amperes with a C tripping curve. It has a short circuit breaking capacity of up to ten kiloamperes at four hundred fifteen volts, meeting EN/IEC 60947-2 standards.

• Two-pole, 45A rated current
• C tripping curve for specific applications
• IP20 rated, suitable for various installations

Product Highlights

This MCB is engineered for enhanced electrical safety, preventing short circuits and overloads while ensuring compliance with industrial and residential standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: M9F42245
• Rated Insulation Voltage (Ui): 500VAC
• Operational Voltage (Ue): 240VAC
• Impulse Withstand Voltage (Uimp): 6kV
• Electrical Endurance: 10000 cycles
• Mechanical Endurance: 20000 cycles
• Width: 36mm
• Height: 103mm
• Depth: 72mm
