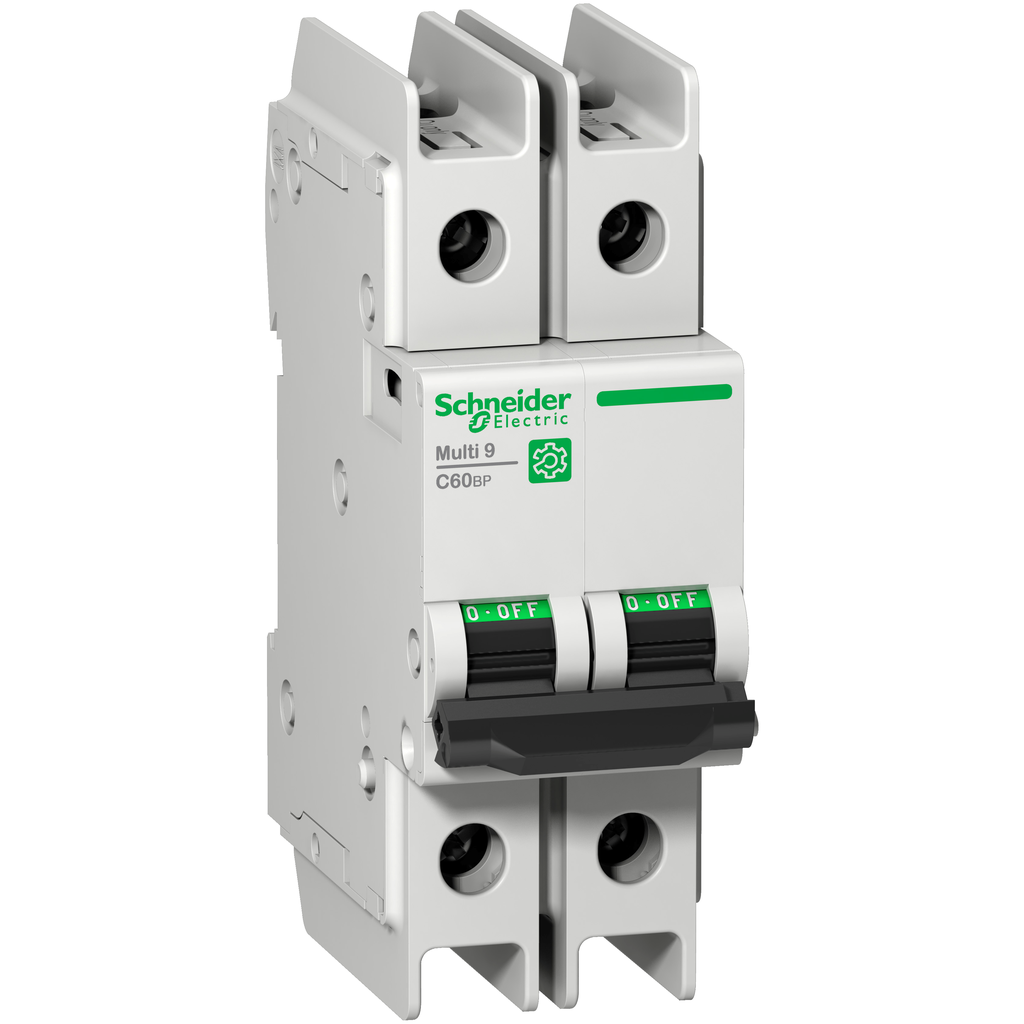

Schneider Electric M9F42201 Miniature Circuit Breaker 2P 1A C Curve 10kA

Product Description

Schneider Electric M9F42201 is a low voltage miniature circuit breaker (MCB). It operates as a 2P circuit breaker with two protected poles, rated for 1 ampere current and a C tripping curve. Its short circuit breaking capacity reaches up to 10kA at four hundred fifteen volts alternating current, aligning with EN/IEC 60947-2 standards. This circuit breaker meets both industrial standards (EN/IEC 60898-1) and residential standards (EN/IEC 60947-2).

• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• IP20 degree of protection

Product Highlights

This circuit breaker protects against short circuits, earth leakage, and overload. It is suitable for original equipment manufacturers (OEM) and control panel builders. The device is designed for quick installation on a DIN rail and has dimensions of thirty-six millimeters in width, one hundred three millimeters in height, and seventy-two millimeters in depth. Its operating temperature range is from minus thirty degrees Celsius to seventy degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: France
• Catalog Number: M9F42201

Technical Specifications

• Product Type: Miniature circuit-breaker
• Voltage Rating: 240 volts
• Current Rating: 1 amp
• Number of Poles: 2 poles
• Rated insulation voltage: 500 volts
• Rated impulse withstand voltage: 6kV
• Width: 36 mm
• Height: 103 mm
• Depth: 72 mm
• Pollution Degree: 3
