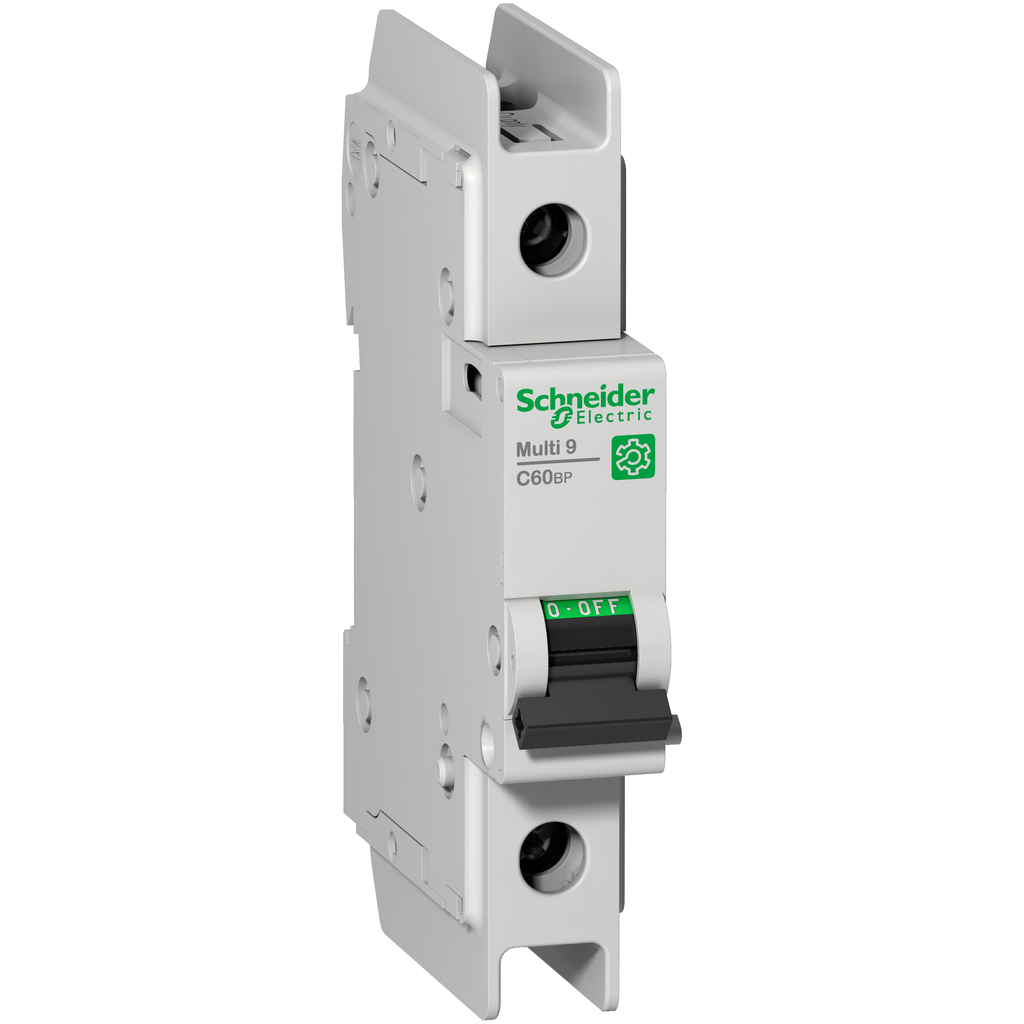

Schneider Electric M9F42105 Miniature Circuit Breaker 240 Volt 1 Pole 5 Amp C Curve

Product Description

The Schneider Electric M9F42105 is a low voltage miniature circuit breaker (MCB). It features a single protected pole with a rated current of five amps and a C tripping curve. This circuit breaker can handle a short circuit breaking capacity of three kA at four hundred fifteen volts alternating current (VAC) according to the EN/IEC 60947-2 standard. It is suitable for both industrial and residential applications as per EN/IEC 60898-1 and EN/IEC 60947-2 standards.

• 1P MCB with 5A rating
• Electrical endurance up to 10,000 cycles
• Can be mounted on DIN rail

Product Highlights

This product is designed for enhanced protection against electrical faults, including short circuits, earth leakage, and overloads. It is ideal for use by original equipment manufacturers (OEM) and control panel builders. The operational voltage is up to 240 VAC, and the insulation voltage is rated at 500 VAC.

Product Information

Standard Information

• Catalog Number: M9F42105
• Manufacturer: Schneider Electric

Technical Specifications

• Dimensions: Width 18 mm, Height 103 mm, Depth 72 mm
• Voltage: 240 Volt
• Amperage: 5 Amp
• Trip Type: Thermal-magnetic
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
• Country of Origin: China
• Number of Poles: 1 Pole
