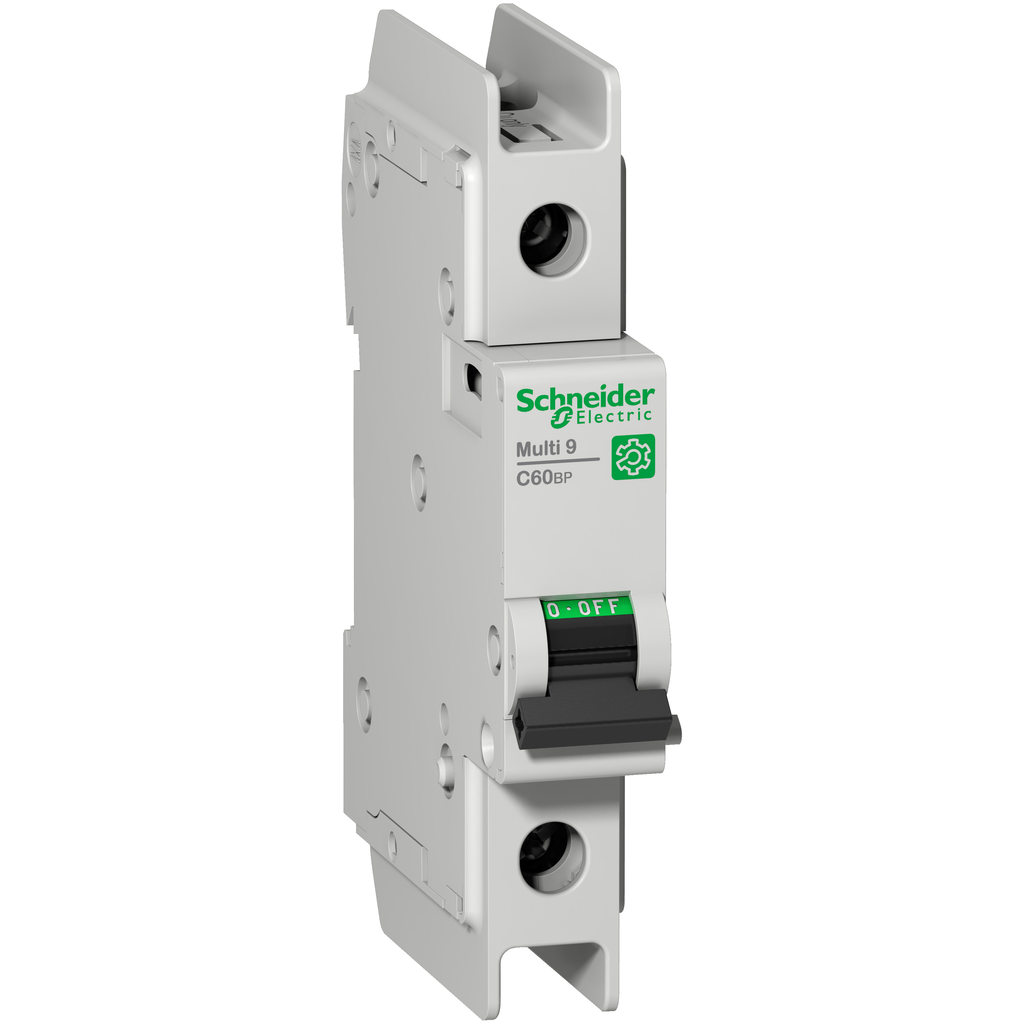

Schneider Electric M9F42104 Miniature Circuit Breaker 4A C Curve

Product Description

The Schneider Electric M9F42104 is a low voltage miniature circuit breaker (MCB). This device features one pole with a protected current of four amps and follows the C tripping curve. The unit has a breaking capacity of three kiloamps at 415 volts alternating current. It complies with EN/IEC 60947-2 standards, ensuring safety and reliability. The M9F42104 is suitable for both residential and industrial applications, protecting against overload, earth leakage, and short circuits. It is ideally used by original equipment manufacturers and control panel builders. It offers 10,000 electrical endurance cycles and 20,000 mechanical endurance cycles, making it a durable choice. The operational voltage is 240 volts, with an insulation voltage rating of 500 volts and an impulse withstand voltage of six kilovolts. It can be mounted on a standard DIN rail and occupies two pitches of 9 millimeters. The unit operates in temperatures ranging from negative thirty to seventy degrees Celsius and can withstand storage temperatures from negative forty to eighty degrees Celsius.

• Low voltage miniature circuit breaker with one pole
• Rated current of four amps with C tripping curve
• Durable with high breaking capacity of three kiloamps

Product Highlights

Designed for effective protection against electrical faults.

Product Information

Standard Information

• Catalog Number: M9F42104
• Brand: Schneider Electric

Technical Specifications

• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Protection Degree: IP20
• Width: 18 mm
• Height: 103 mm
• Depth: 72 mm
• Rated Voltage: 240 V
• Insulation Voltage: 500 V
