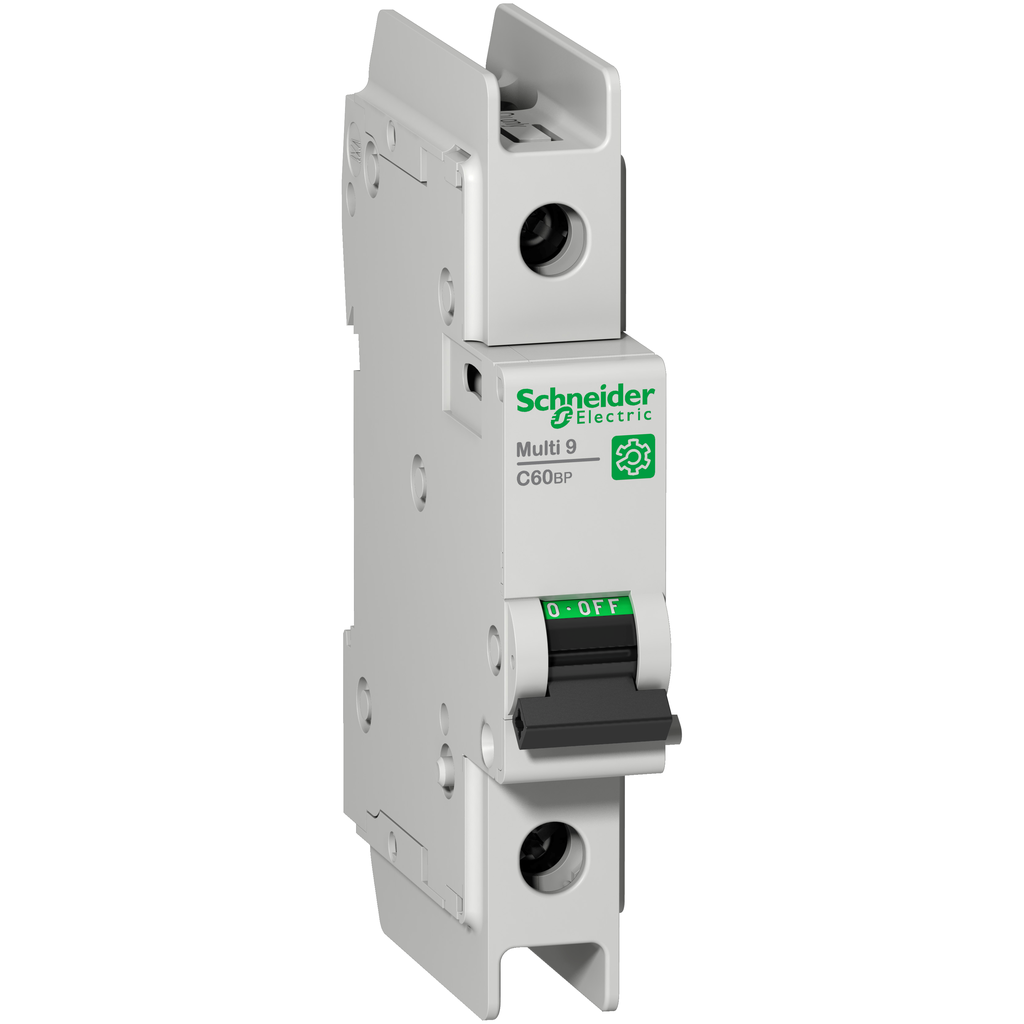

Schneider Electric M9F42102 Miniature Circuit Breaker (MCB) 2A C Curve 14kA

Product Description

The Schneider Electric M9F42102 is a low voltage miniature circuit breaker (MCB). It features 1 protected pole and is rated for 2 Amperes with a C tripping curve. The device has a short circuit breaking capacity of up to 3kA at 415VAC, meeting EN/IEC 60947-2 standards. Designed for safety, it protects against short circuits, earth leakage, and overloads. This MCB is ideal for original equipment manufacturers and control panel builders. With an electrical endurance of 10,000 cycles and a mechanical endurance of 20,000 cycles, it ensures reliable performance. It operates at a voltage of 240VAC and has a rated insulation voltage of 500VAC. The device can be easily mounted on a DIN rail and occupies a width of two 9mm pitches. Its operational temperature ranges from -30 degrees C to 70 degrees C. The dimensions are 18mm in width, 103mm in height, and 72mm in depth, with an IP20 protection rating according to IEC/EN 60529. This product complies with industrial and residential standards, making it a versatile choice for electrical applications.

• Compact design for easy installation on DIN rail
• Electrical and mechanical endurance support long-term use
• Multi-purpose application across various installations

Product Highlights

Miniature circuit breaker for protecting electrical circuits, suitable for both industrial and residential use.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: M9F42102
• Voltage: 240 Volt
• Line Rated Current: 2 A
• Number of Poles: 1 Pole
• Actuator: Toggle
• Trip Type: Thermal-magnetic
• Width: 18 mm
• Height: 103 mm
• Depth: 72 mm
