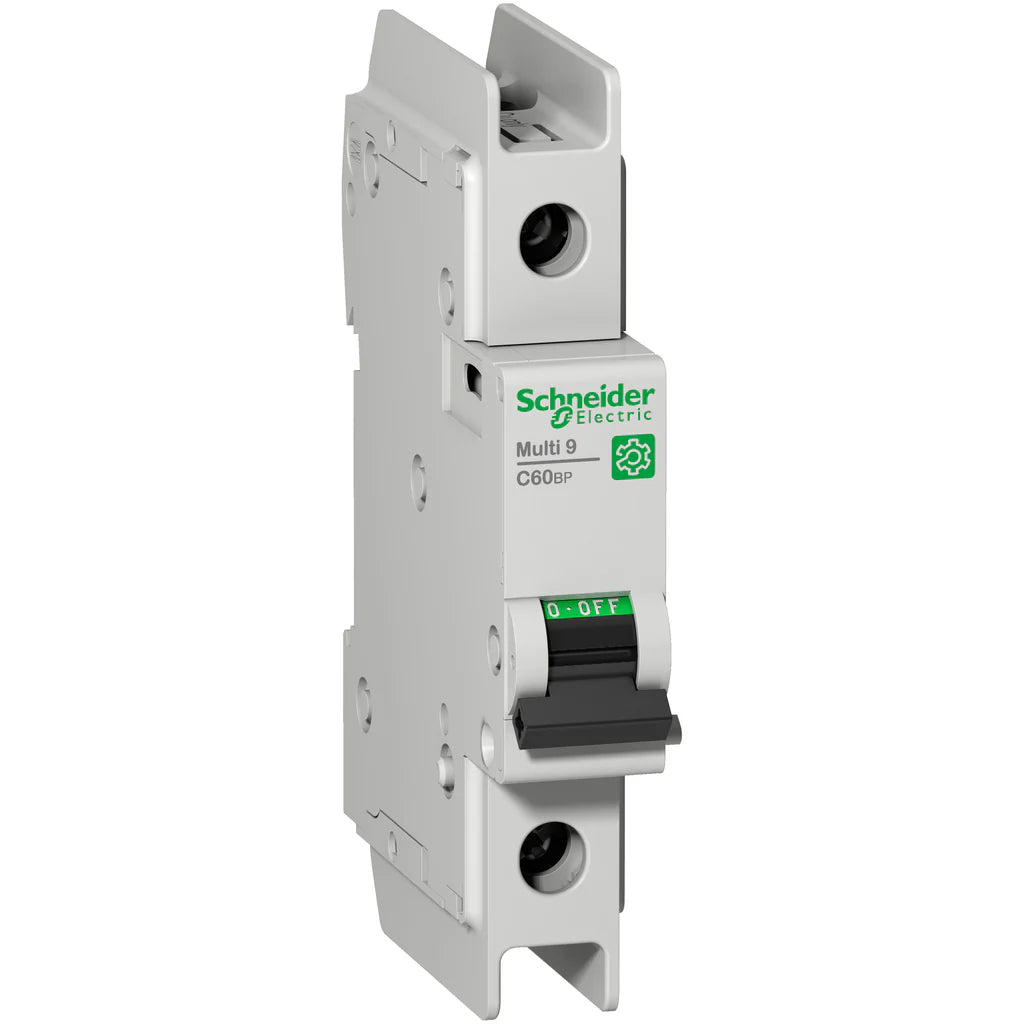

Schneider Electric M9F42101 Miniature Circuit Breaker 1P 1A C Curve Replacement MPN

Product Description

Schneider Electric M9F42101 Miniature Circuit Breaker is a low voltage device designed for various electrical applications. This 1 pole circuit breaker features a rated current of 1A and a C tripping curve. The maximum short circuit breaking capacity is up to 3kA at 415VAC, adhering to EN/IEC 60947-2 standards. The M9F42101 offers enhanced protection against electrical threats including short circuits, earth leakage, and overload.

• Electrical endurance up to 10000 cycles
• Mechanical endurance reaches 20000 cycles
• Easy installation with DIN rail mounting

Product Highlights

This circuit breaker is ideal for original equipment manufacturers (OEM) and control panel builders. Its compact design allows it to fit in tight spaces while maintaining robust protection features. The operational voltage is 240VAC, ensuring compatibility with a variety of systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Type: Miniature Circuit Breaker

Technical Specifications

• Catalog Number: M9F42101
• Rated Current: 1 A
• Tripping Curve: C
• Breaking Capacity: 3kA
• Rated Insulation Voltage: 500VAC
• Dimensions: Width 18mm, Height 103mm, Depth 72mm
• IP Protection Degree: IP20
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
