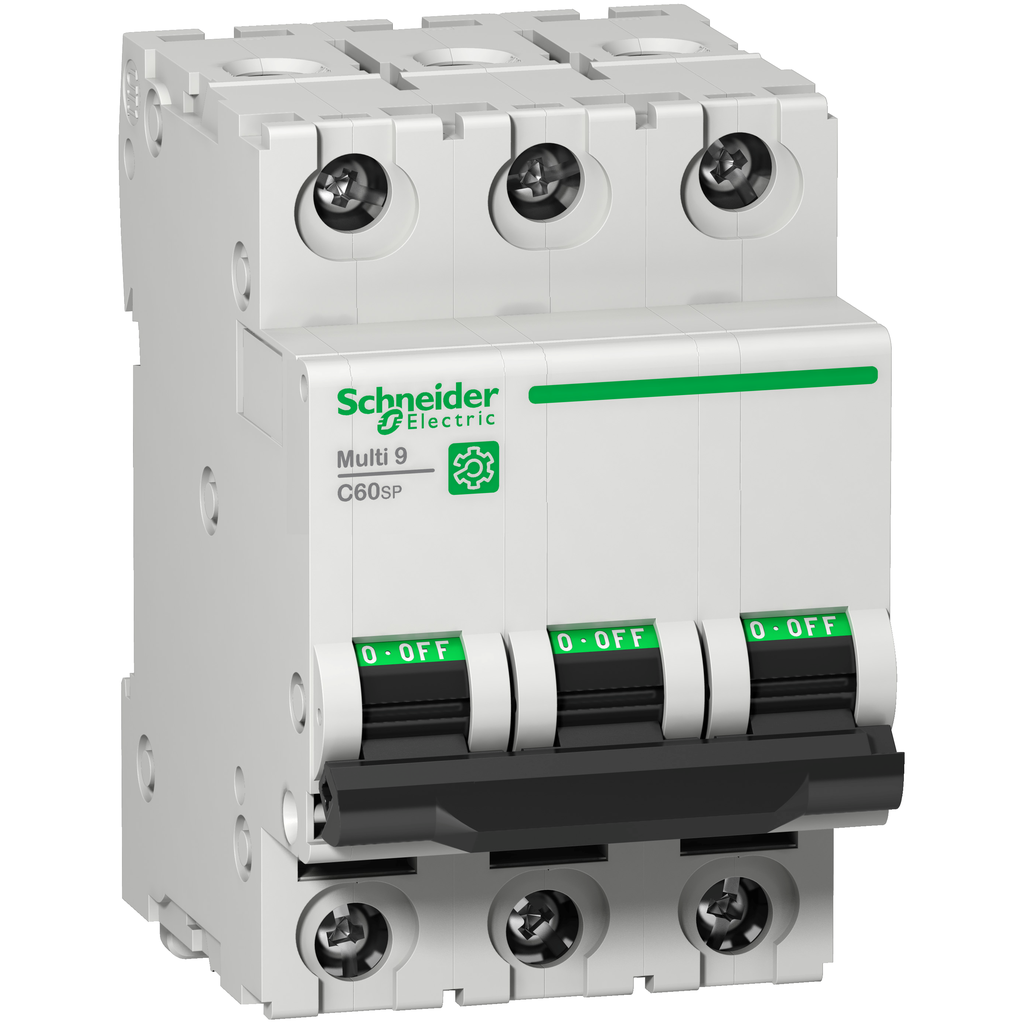

Schneider Electric M9F23340 Miniature Circuit Breaker 40A 3 Pole D Curve

Product Description

The Schneider Electric M9F23340 is a low voltage miniature circuit breaker (MCB). It features a three-pole design with a rated current of forty amps and a D tripping curve. This breaker is capable of handling a short circuit breaking capacity of up to ten kiloamperes at four hundred fifteen volts, compliant with the EN/IEC 60947-2 standard.

• Type: Miniature circuit breaker with 3 poles
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles

Product Highlights

This product is ideal for original equipment manufacturers (OEM) and control panel builders. It provides protection against short circuits, earth leakage, and overload. It has an operational voltage of two hundred forty volts and features a rated insulation voltage of five hundred volts.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: M9F23340
• Amperage: 40 Amp
• Voltage: 240 Volt
• Height: 81 mm
• Width: 54 mm
• Depth: 72 mm
• Trip Type: Thermal-magnetic
• Number of Poles: 3 Pole
• Operating Temperature: -30C to 70C
• Storage Temperature: -40C to 80C
• Rated Impulse Withstand Voltage: 6 kV
• IP Rating: IP20
• Color: Light grey (RAL7035)
• Mounting Type: Clip-On
• Country of Origin: France
