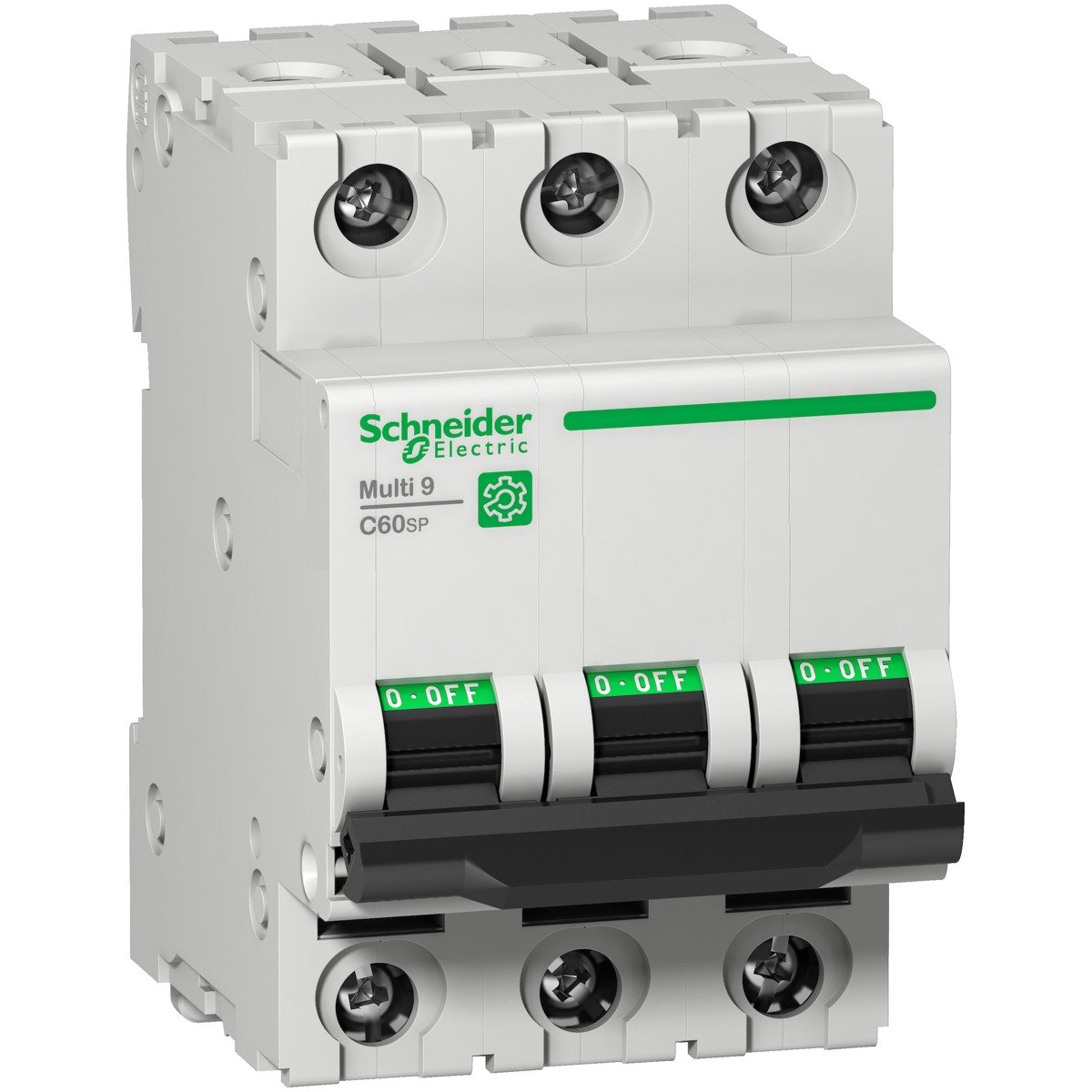

Schneider Electric M9F23306 Miniature Circuit Breaker 3P 6A D Curve 10kA

Product Description

This Schneider Electric M9F23306 Miniature Circuit Breaker is a reliable solution for low voltage applications. It operates as a 3P circuit breaker with a rated current of 6A and a D trip curve. The device supports a short circuit breaking capacity of up to 10kA at 415VAC in compliance with EN/IEC 60947-2 standards. It meets both industrial and residential standards, providing protection against short circuits, earth leakage, and overloads.

• 3 protected poles with a 6A rated current
• Designed for OEM and control panel builders
• Electrical endurance of up to 10,000 cycles

Product Highlights

Designed for various applications, this miniature circuit breaker is easy to install on a DIN rail, builds protection, and offers mechanical endurance up to 20,000 cycles.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: M9F23306
• Voltage: 240 Volt
• Amperage: 6 Amp
• Number of Poles: 3 Pole
• Width: 54 mm
• Height: 81 mm
• Depth: 72 mm
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
• IP Rating: IP20
