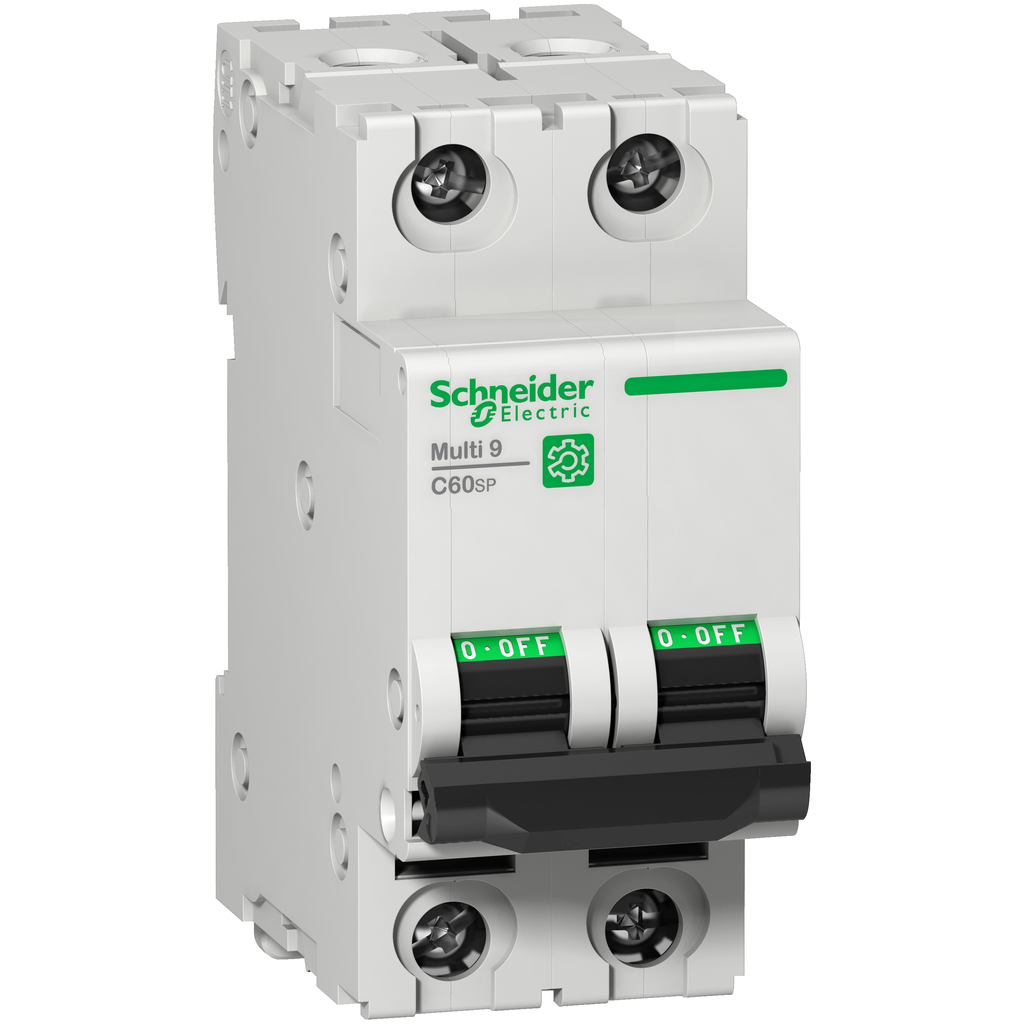

Schneider Electric M9F23210 Miniature Circuit Breaker 10A 2P D Curve 10kA

Product Description

The Schneider Electric M9F23210 is a miniature circuit breaker designed for low voltage applications. This device has a two-pole configuration with a rated current of ten amperes and utilizes a D tripping curve. The circuit breaker can handle short-circuit breaking capacities of up to ten kiloamperes at four hundred fifteen volts alternating current, in accordance with EN/IEC 60947-2 standards.

• Voltage: 240 VAC operational voltage
• Mechanical endurance: 20000 cycles
• Electrical endurance: 10000 cycles

Product Highlights

This product provides safety by preventing electrical hazards such as overloads, short circuits, and earth leakage. It is suitable for use by original equipment manufacturers and control panel builders. The breaker can clip onto a DIN rail easily and has a pollution degree of three.

Product Information

Standard Information

• Catalog Number: M9F23210
• Brand: Schneider Electric

Technical Specifications

• Country of Origin: United States
• Rated Insulation Voltage: 500 VAC
• Rated Impulse Voltage: 6 kV
• Dimensions: Width 36mm, Height 81mm, Depth 72mm
• Color: Light Grey (RAL7035)
• IP Protection: IP20
• Operating Temperature: -30C to 70C
• Storage Temperature: -40C to 80C
