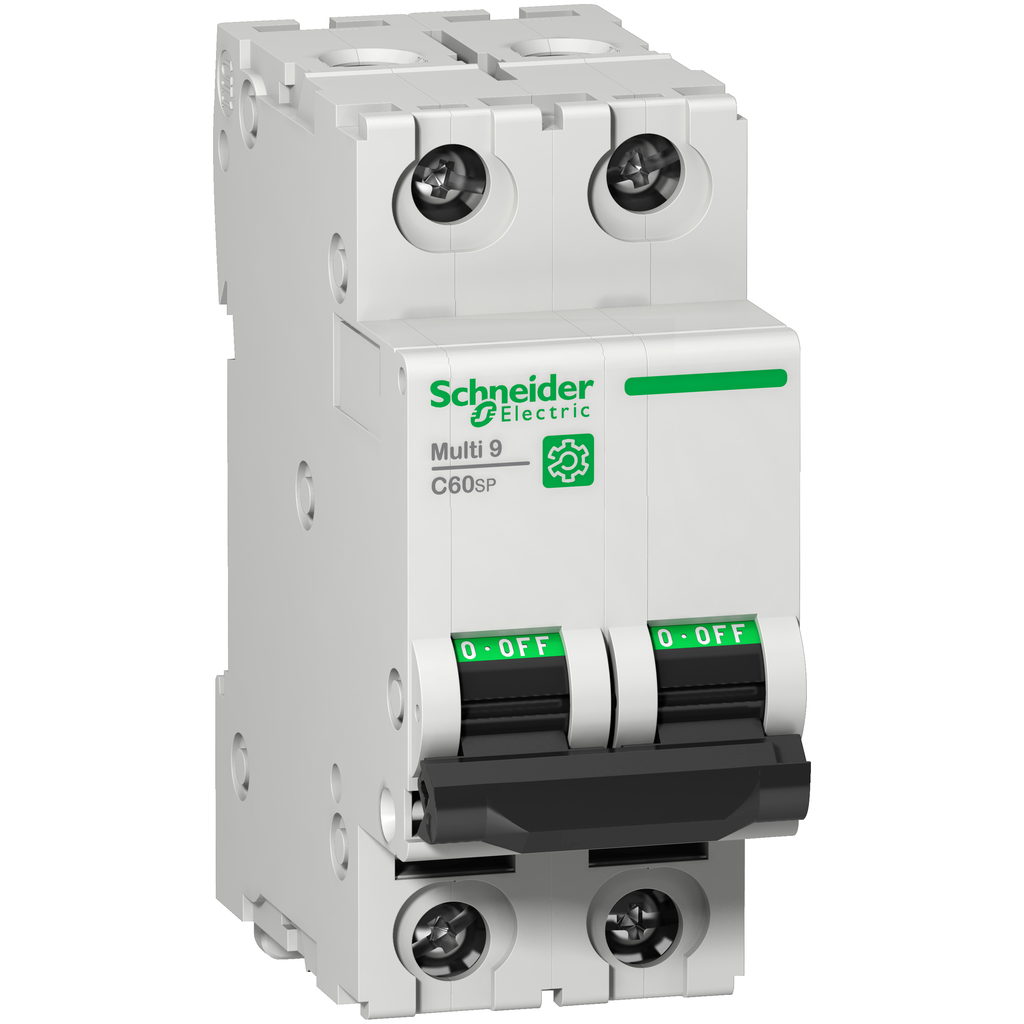

Schneider Electric M9F23202 Miniature Circuit Breaker 2P 2A D Curve 10kA

Product Description

The Schneider Electric M9F23202 is a miniature circuit breaker designed for low voltage applications. It operates as a two-pole breaker with a rated current of two amps. This device features a D tripping curve and a short circuit breaking capacity of up to ten kA at four hundred fifteen volts. Compliant with EN/IEC 60947-2 and EN/IEC 60898-1 standards, the breaker provides essential protection against overloads, earth leakage, and short circuits. It is suitable for original equipment manufacturers and control panel builders.

• Low voltage miniature circuit breaker
• Two-pole, two amps rated current
• Designed for easy DIN rail mounting

Product Highlights

This circuit breaker ensures safety for both people and equipment by limiting the risk of electrical faults. It has a mechanical endurance of up to twenty thousand cycles.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: M9F23202

Technical Specifications

• Type: Miniature Circuit Breaker
• Voltage Rating: 240 Volt
• Amperage: 2 Amp
• Number of Poles: 2 Pole
• Dimensions: Width 36 mm, Height 81 mm, Depth 72 mm
• Trip Type: Thermal-magnetic
• Electrical Endurance: 10,000 cycles
• IP Rating: IP20
