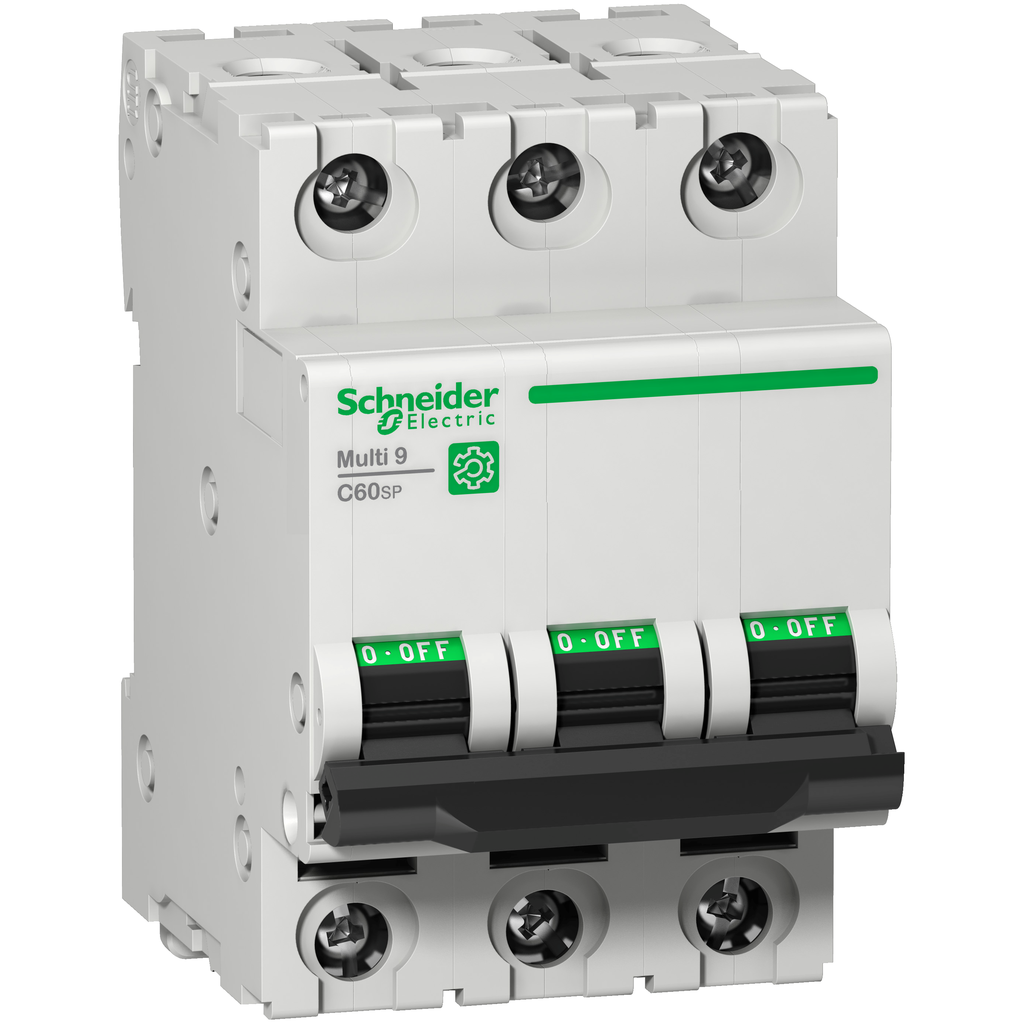

Schneider Electric M9F22306 Miniature Circuit Breaker 6A 3P C Curve 10kA

Product Description

The Schneider Electric M9F22306 is a low voltage miniature circuit breaker designed for power distribution. This three-pole circuit breaker has a rated current of six amps and is equipped with a C tripping curve. It features a short circuit breaking capacity of ten kiloamperes at four hundred fifteen volts AC, meeting EN/IEC 60947-2 standards. It is suitable for both industrial and residential applications, offering protection from short circuits, earth leakage, and overload conditions.

• 3 protected poles
• Electrical endurance up to 10,000 cycles
• Clips onto DIN rail for installation

Product Highlights

This circuit breaker is built for durability, capable of handling up to 20,000 mechanical endurance cycles. It operates efficiently within a temperature range of negative thirty degrees to seventy degrees Celsius. The dimensions are 54 mm in width, 81 mm in height, and 72 mm in depth.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: M9F22306
• Rated Current: 6 Amp
• Voltage: 240 Volt
• Number of Poles: 3 Pole
• Width: 54 mm
• Height: 81 mm
• Depth: 72 mm
• Color: Gray
