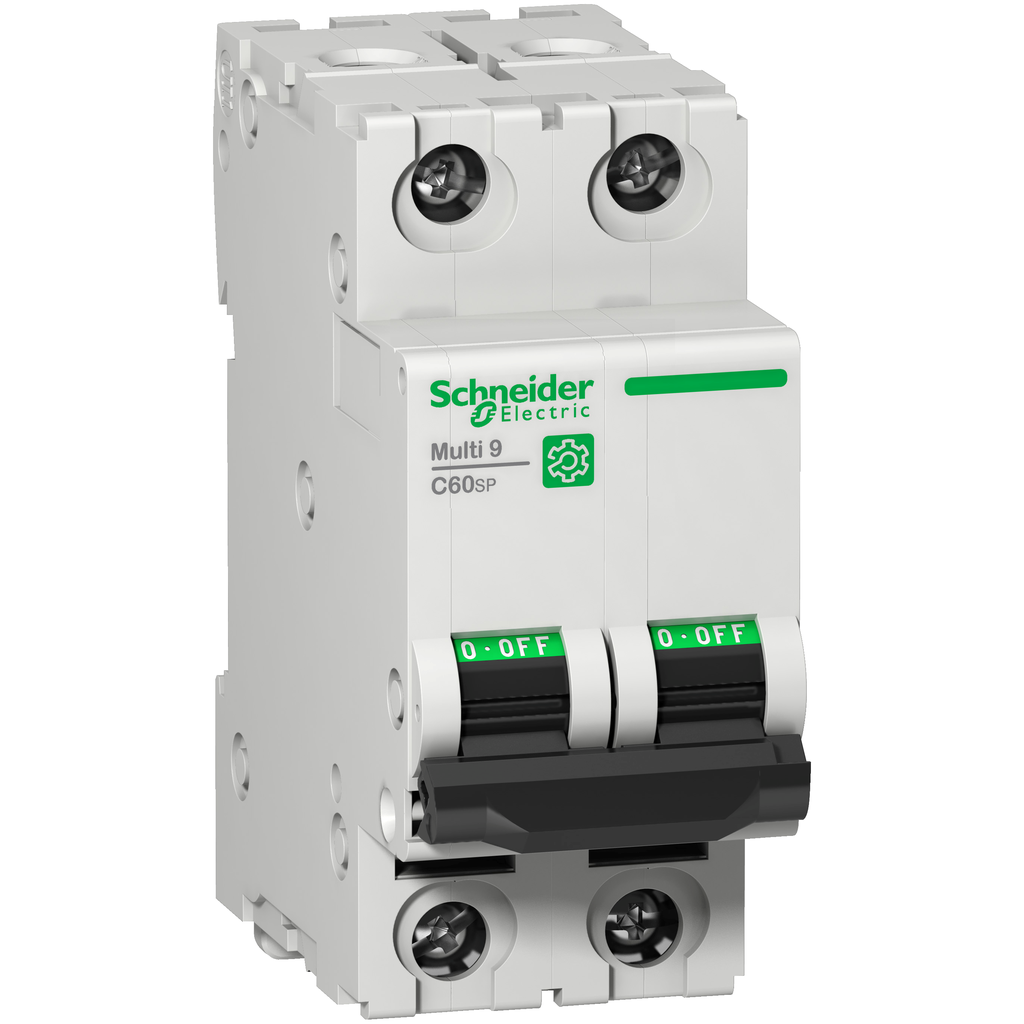

Schneider Electric M9F22263 Miniature Circuit Breaker 63A C curve 10kA

Product Description

Schneider Electric M9F22263 is a low voltage miniature circuit breaker (MCB). It features a two-pole design with a rated current of sixty-three amperes and a C tripping curve. This breaker has a short circuit breaking capacity of up to ten kiloamperes at four hundred fifteen volts, adhering to EN/IEC 60947-2 standards.

• Complies with industrial standards EN/IEC 60898-1 and EN/IEC 60947-2.
• Provides protection against short circuits, overloads, and earth leakage.
• Designed for original equipment manufacturers (OEM) and control panel builders.

Product Highlights

This MCB offers enhanced protection for both people and equipment against electrical threats. It is suitable for various applications, featuring electrical endurance of up to ten thousand cycles and mechanical endurance of twenty thousand cycles. The operational voltage is two hundred forty volts, with an insulation voltage of five hundred volts. It is mounted easily on DIN rails and has dimensions of thirty-six millimeters in width, eighty-one millimeters in height, and seventy-two millimeters in depth.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: M9F22263
• Rated Current: 63 Amp
• Number of Poles: 2 Pole
• Protection Degree: IP20
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
• Width: 36 mm
• Height: 81 mm
• Depth: 72 mm
