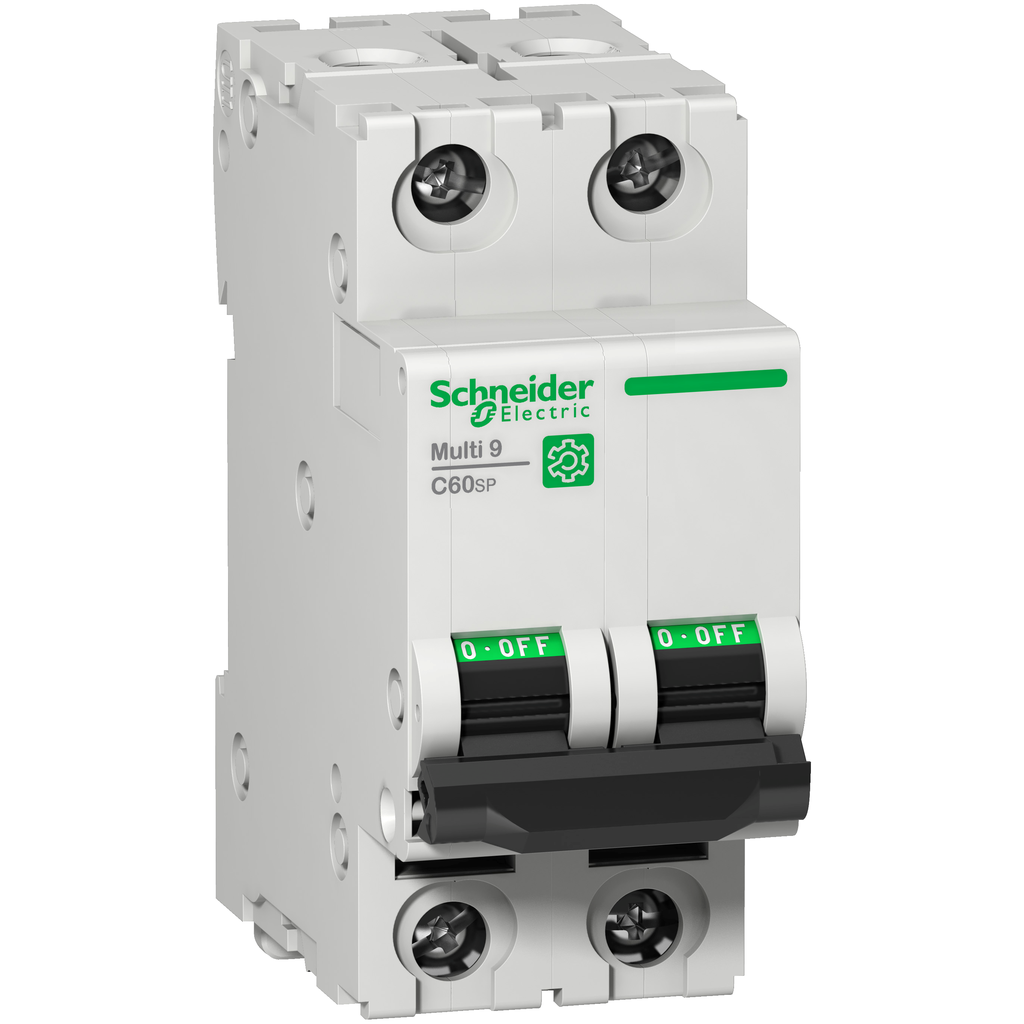

Schneider Electric M9F22232 Miniature Circuit Breaker 32A 2 Pole

Product Description

The Schneider Electric M9F22232 is a low voltage miniature circuit breaker (MCB). This 2P circuit breaker features a rated current of 32A and a C tripping curve. The device offers a short circuit breaking capacity of up to 10kA at 415VAC, adhering to the EN/IEC 60947-2 standards. Compliance includes both the industrial standard EN/IEC 60898-1 and the residential standard EN/IEC 60947-2.

• Enhanced protection against electrical threats, including short circuit and overload.
• Designed for original equipment manufacturers (OEM) and control panel builders.
• Electrical endurance rated for 10,000 cycles and mechanical endurance for 20,000 cycles.

Product Highlights

This circuit breaker protects both people and equipment, ensuring safety in various applications. It clips easily on a DIN rail and has a pollution degree rating of 3.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: M9F22232
• Number of Poles: 2 Pole
• Rated Current: 32 Amp
• Voltage: 240 Volt
• Width: 36 mm
• Height: 81 mm
• Depth: 72 mm
• Operating Temperature: -30 to 70 degrees Celsius
• Storage Temperature: -40 to 80 degrees Celsius
