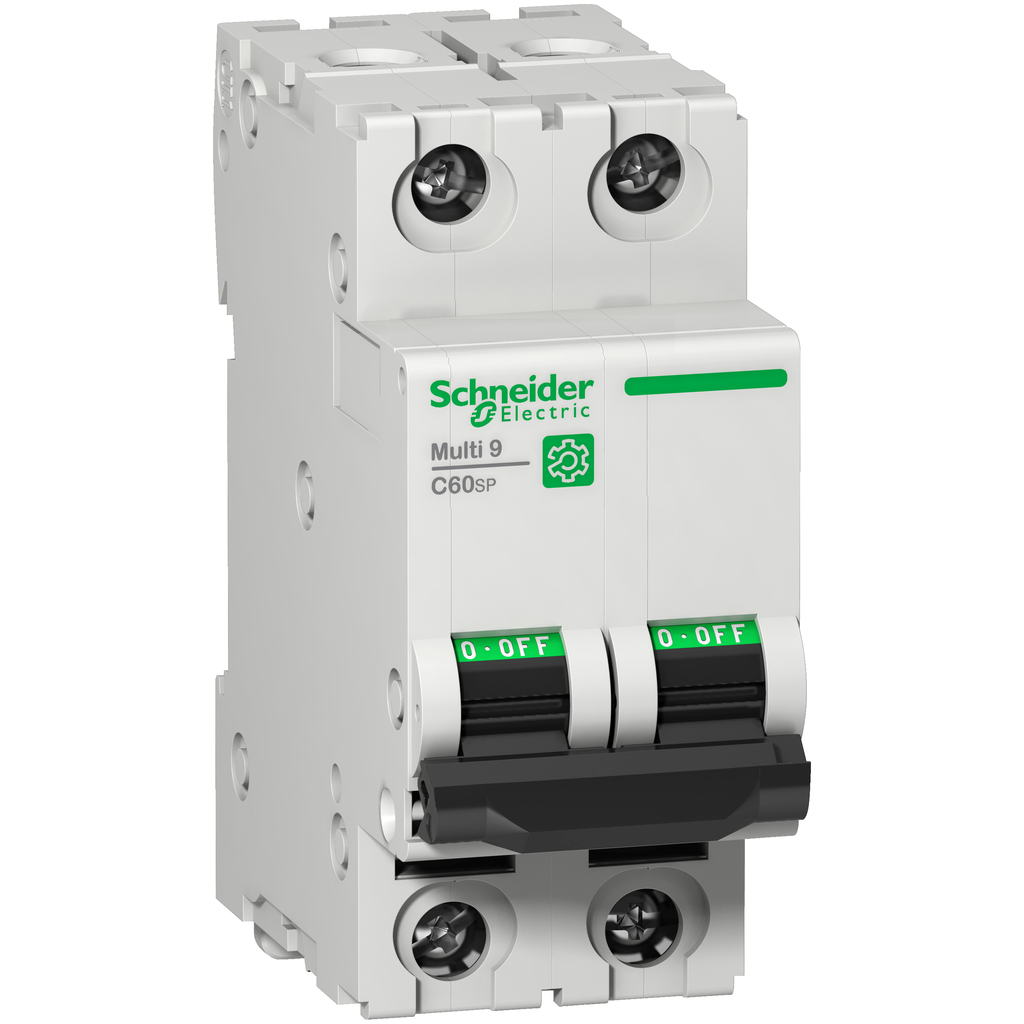

Schneider Electric M9F22220 Miniature Circuit Breaker 20A C Curve 10kA

Product Description

The Schneider Electric M9F22220 is a low voltage miniature circuit breaker (MCB) designed for reliable circuit protection. This MCB features a dual-pole design with a 20 amp rated current and a C tripping curve. It conforms to EN/IEC 60947-2 standards with a short circuit breaking capacity of up to 10kA at 415VAC. This circuit breaker is suitable for both residential and industrial applications, providing enhanced protection against overloads, short circuits, and earth leakage.

• Two protected poles for circuit safety
• High breaking capacity of 10kA at 415VAC
• Electrical endurance rated for 10,000 cycles

Product Highlights

The M9F22220 is dedicated to OEMs and control panel builders. It offers excellent electrical and mechanical endurance, with the ability to handle up to 20,000 mechanical cycles. Designed for easy installation, it can be clipped onto a DIN rail for straightforward integration into existing systems.

Product Information

Standard Information

• Catalog Number: M9F22220
• Brand: Schneider Electric

Technical Specifications

• Voltage: 240 Volt
• Rated Current: 20 Amp
• Number of Poles: 2 Pole
• Width: 36 mm
• Height: 81 mm
• Depth: 72 mm
• Operating Temperature: -30°C to 70°C
• Insulation Voltage: 500VAC
