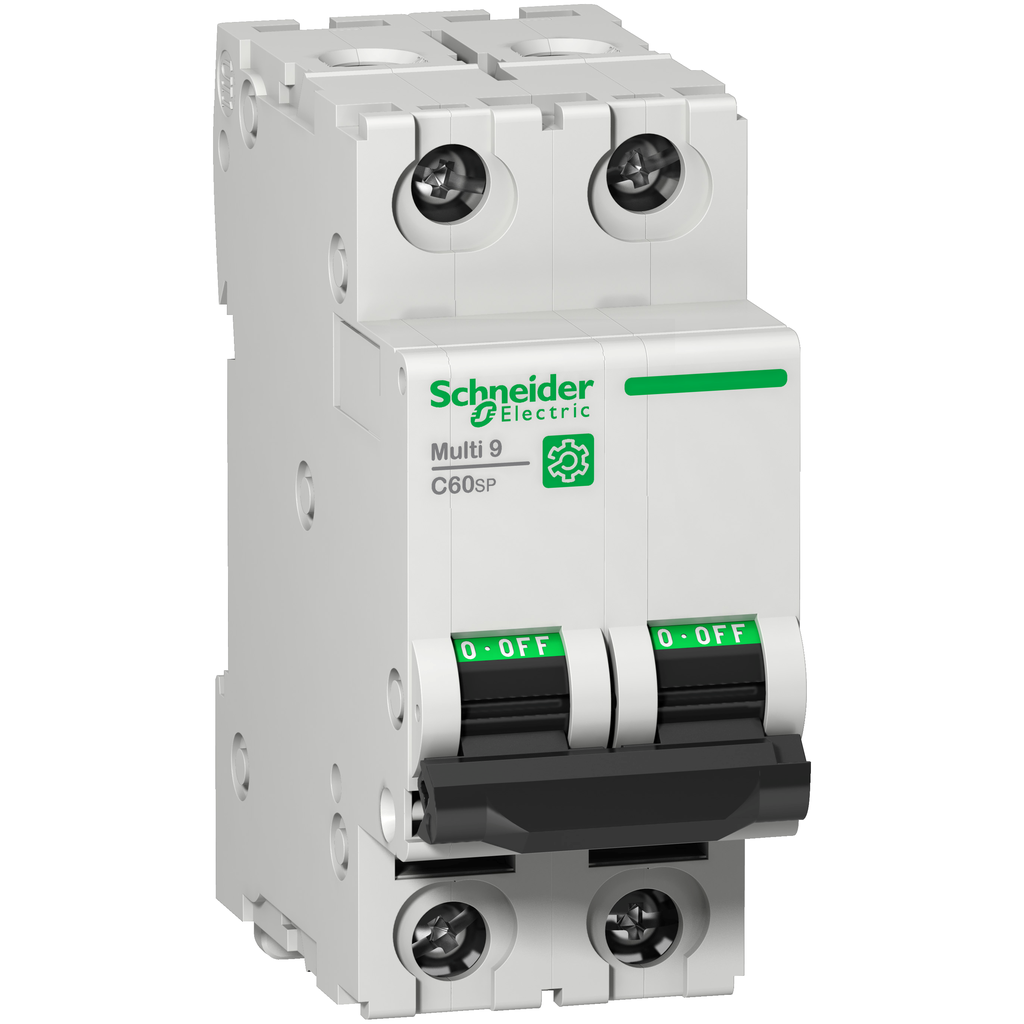

Schneider Electric M9F22210 Miniature Circuit Breaker 10A 2P C Curve 10kA

Product Description

Schneider Electric M9F22210 is a miniature circuit breaker designed for low voltage applications. It features a two-pole design with a current rating of 10 amps and a C tripping curve. This circuit breaker is suitable for protecting against overloads, short circuits, and earth leakage. It has a breaking capacity of up to 10kA at four hundred fifteen volts, in accordance with EN/IEC 60947-2 standards.

• Two-pole design with 10A rating
• Compliance with industrial and residential standards
• Clips onto DIN rail for easy installation

Product Highlights

This circuit breaker offers enhanced protection and is suitable for original equipment manufacturers and control panel builders. It provides electrical endurance for up to 10,000 cycles and a mechanical endurance for up to 20,000 cycles.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: M9F22210
• Voltage Rating: 240 VAC
• Width: 36 mm
• Height: 81 mm
• Depth: 72 mm
• Amperage: 10 A
• Number of Poles: 2
• Tripping Type: Thermal-magnetic
• Electrical Endurance: 10,000 cycles
• Operating Temperature: -30 to 70 degrees C
• Storage Temperature: -40 to 80 degrees C
• Protection Class: IP20
• Standard Compliance: EN/IEC 60947-2, UL 1077
