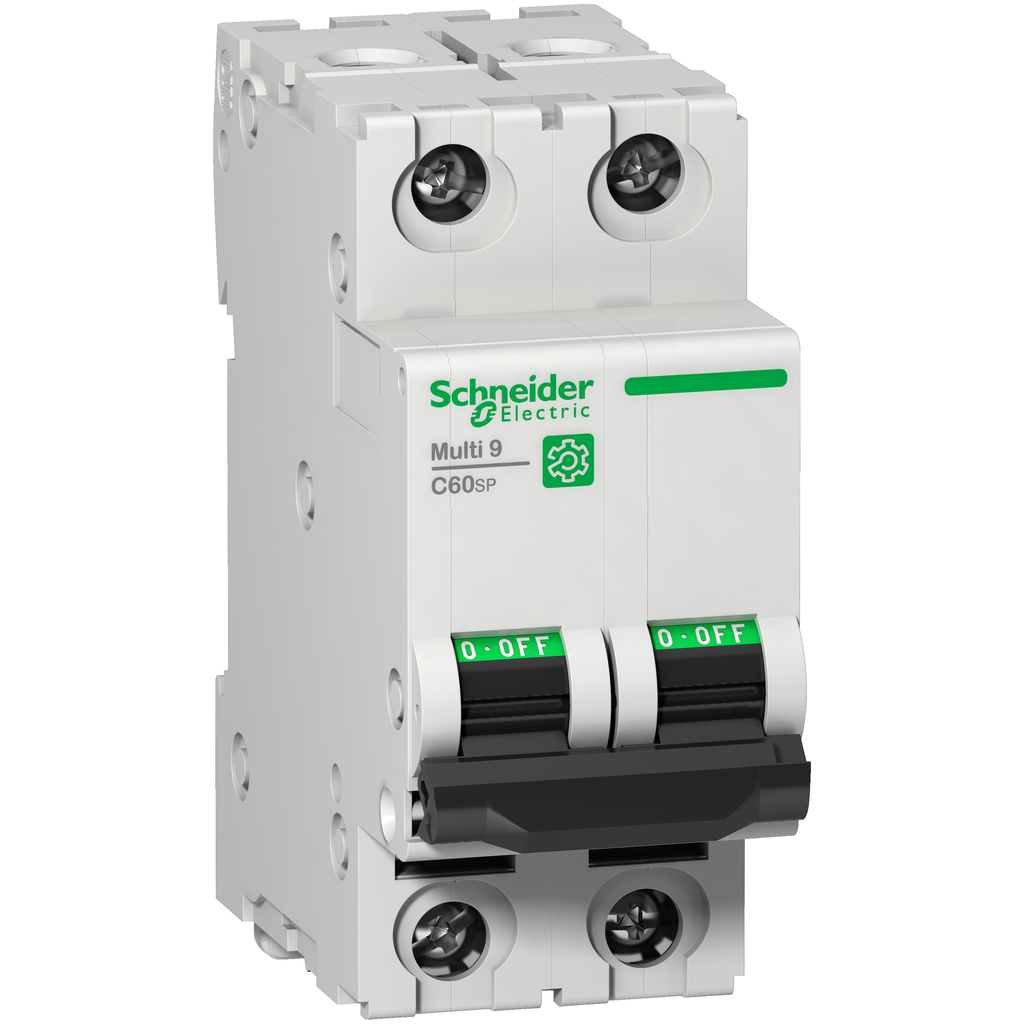

Schneider Electric M9F22203 Miniature Circuit Breaker 2P 3A C Curve 10kA UL1077

Product Description

The Schneider Electric M9F22203 is a miniature circuit breaker designed for low voltage applications. This 2-pole circuit breaker has a rated current of 3 Amperes and features a C tripping curve. It can handle a short circuit breaking capacity of up to 10kA at 415VAC, adhering to EN/IEC 60947-2 standards. This product meets both EN/IEC 60898-1 and EN/IEC 60947-2 standards, providing protection against electrical hazards, including short circuits, overloads, and earth leakage.

• Rated for operational voltage of 240VAC
• Electrical endurance of up to 10,000 cycles
• Clip-on mounting for easy installation on DIN rail

Product Highlights

This circuit breaker is ideal for OEMs and control panel builders, offering reliability and safety in electrical distribution systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: M9F22203
• Number of Poles: 2 Pole
• Rated Current: 3 Amps
• Insulation Voltage: 500VAC
• Impulse Withstand Voltage: 6kV
• Dimensions: Width 36mm, Height 81mm, Depth 72mm
• Protection Degree: IP20
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
• Country of Origin: France
