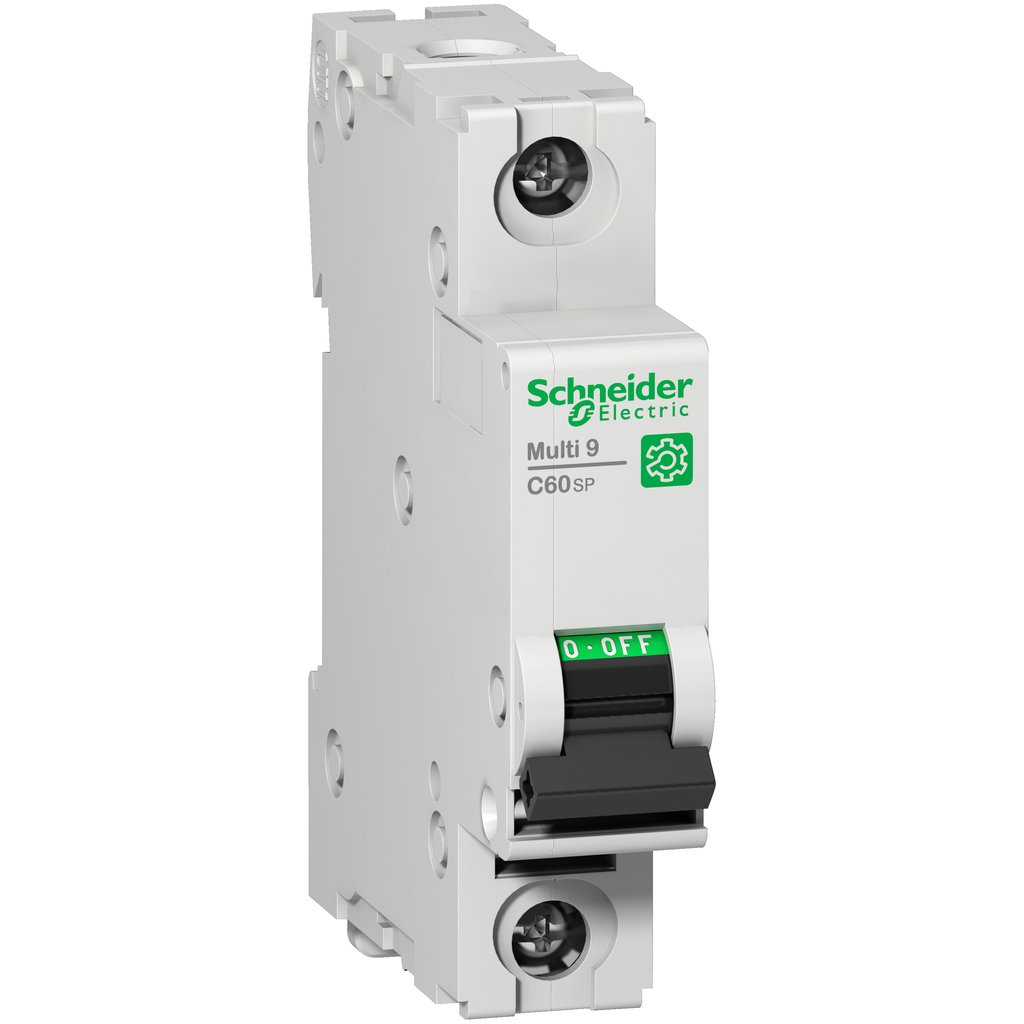

Schneider Electric M9F22120 Miniature Circuit Breaker 20A 1P C Curve

Product Description

The Schneider Electric M9F22120 is a miniature circuit breaker designed for low voltage applications. It features a one-pole configuration with a current rating of twenty amperes and complies with EN/IEC 60947-2 standards. This circuit breaker can handle short circuit conditions with a breaking capacity of three kiloamperes at four hundred fifteen volts. The M9F22120 is an ideal choice for applications requiring enhanced protection against overload and electrical threats, making it suitable for OEMs and control panel builders.

• Meets industrial and residential standards: EN/IEC 60898-1 and EN/IEC 60947-2
• Electrical endurance up to 10,000 cycles
• Compact design with a width of two pitches at nine millimeters

Product Highlights

This miniature circuit breaker prevents electrical issues while ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: M9F22120
• Rated Current: 20 A
• Number of Poles: 1 Pole
• Tripping Curve: C
• Breaking Capacity: 3 kA at 415 VAC
• Operating Voltage: 240 VAC
• Insulation Voltage: 500 VAC
• Impulse Withstand Voltage: 6 kV
• Dimensions: Width 18 mm, Height 81 mm, Depth 72 mm
• IP Rating: IP20
• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 80°C
