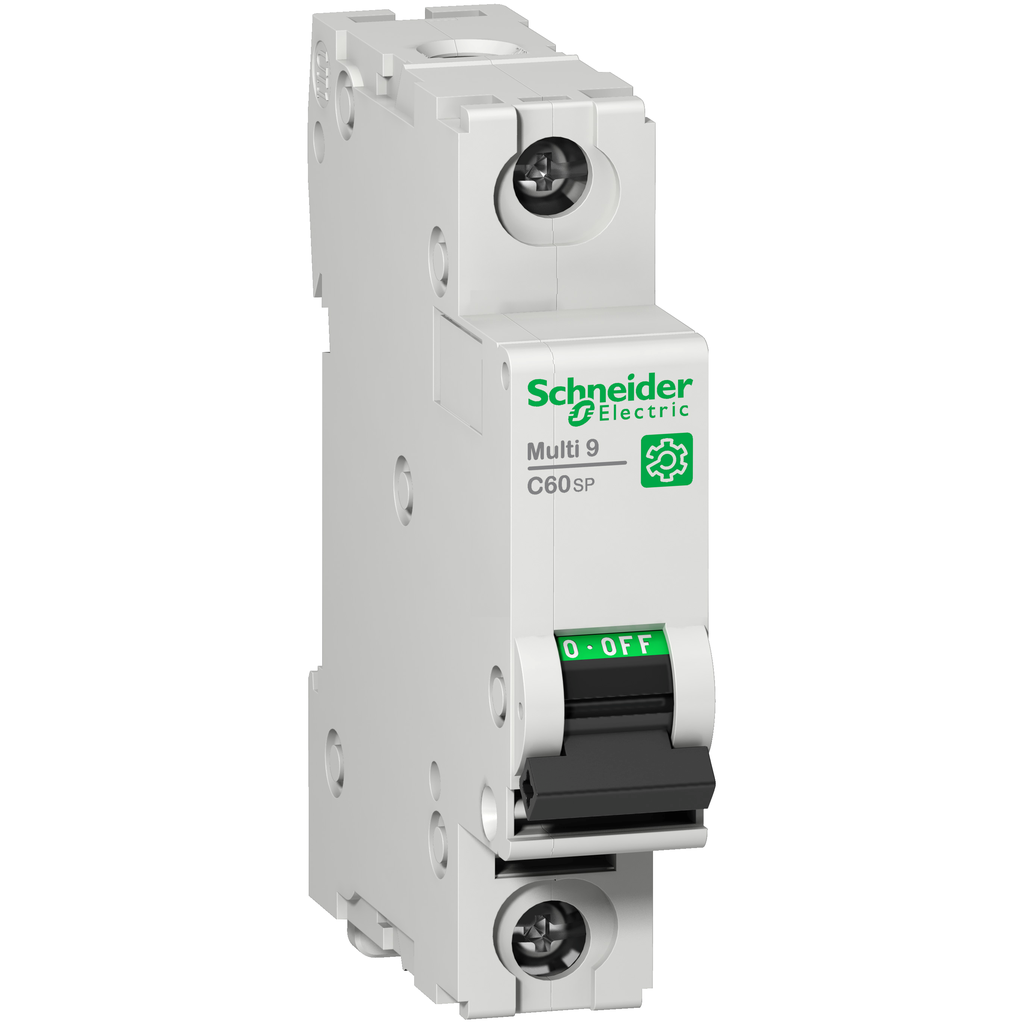

Schneider Electric M9F22116 Miniature Circuit Breaker 16A C Curve 10kA

Product Description

The Schneider Electric M9F22116 is a low voltage miniature circuit breaker (MCB). This device features one protected pole and is rated for 16A, with a C tripping curve. It supports a short circuit breaking capacity of 3kA at 415VAC according to EN/IEC 60947-2 standards. This MCB is compliant with both industrial standards EN/IEC 60898-1 and residential standards EN/IEC 60947-2.

Key features include:

• Electrical endurance up to 10,000 cycles
• Mechanical endurance up to 20,000 cycles
• Can be clipped on a DIN rail

Product Highlights

This product is designed for original equipment manufacturers (OEM) and control panel builders. It provides protection against electrical hazards such as short circuits and overloads. The M9F22116 has operational voltage rating of 240VAC and insulation voltage rating of 500VAC, with a degree of protection of IP20 as per IEC/EN 60529 standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: France

Technical Specifications

• Catalog Number: M9F22116
• Amperage Rating: 16A
• Type: Miniature circuit breaker
• Length: 2.83 inches
• Width: 18 mm
• Height: 81 mm
• Depth: 72 mm
• Trip Type: Thermal-magnetic
