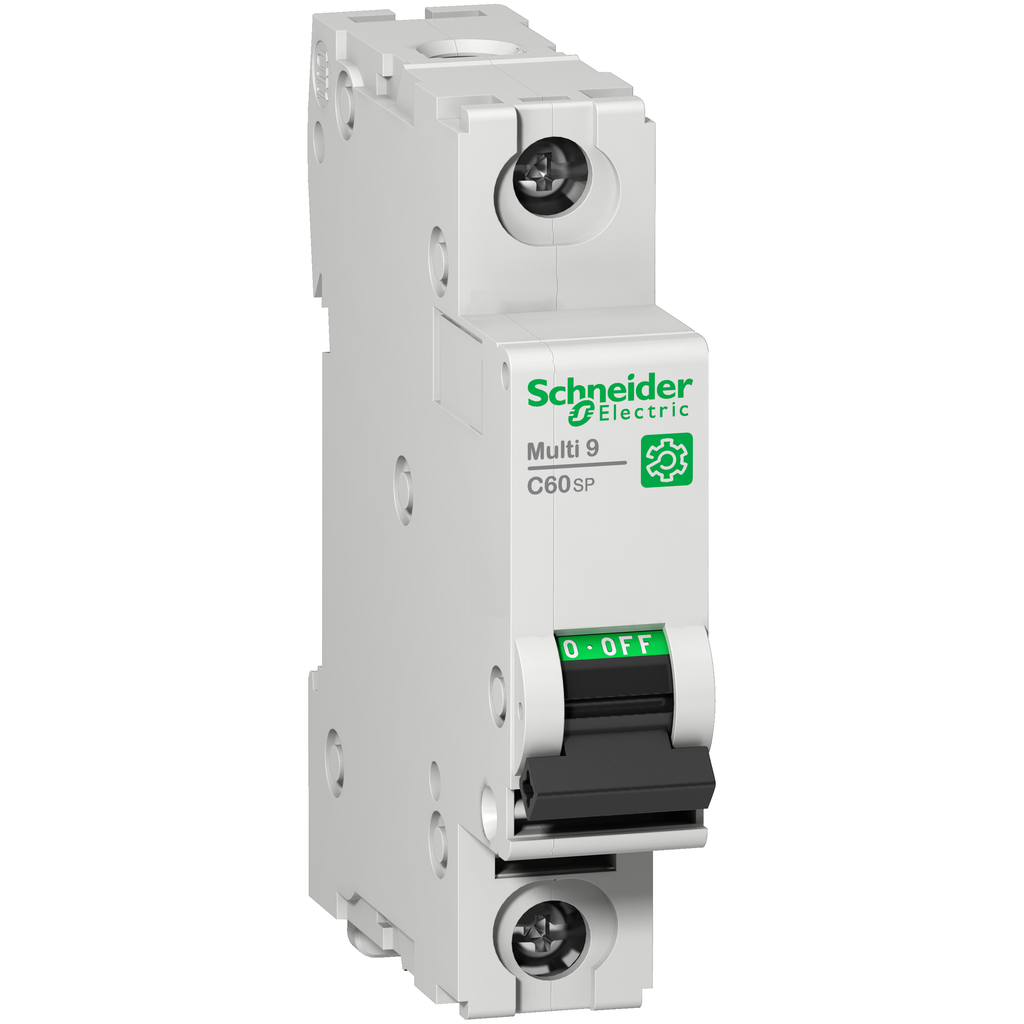

Schneider Electric M9F22105 Miniature Circuit Breaker 1P 5A C Curve 10kA

Product Description

Schneider Electric offers the M9F22105, a low voltage miniature circuit breaker (MCB). This is a one pole (1P) breaker with a rated current of five amps and a C tripping curve. The short circuit breaking capacity reaches up to three kiloamperes at four hundred fifteen volts alternating current (VAC) and meets EN/IEC 60947-2 standards. This model is suitable for both industrial and residential applications.

• Provides protection against short circuits and overloads.
• Designed for original equipment manufacturers and control panel builders.
• Offers high electrical endurance of up to ten thousand cycles.

Product Highlights

The M9F22105 circuit breaker secures electrical systems by preventing risks associated with electrical faults. It features a mechanical endurance of up to twenty thousand cycles and can clip onto a standard DIN rail.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: M9F22105
• Number of Poles: 1 Pole
• Rated Current: 5 Amp
• Breaking Capacity: 10kA (UL 1077)
• Operational Voltage: 240 VAC
• Dimensions: Width 18 mm, Height 81 mm, Depth 72 mm
• Insulation Voltage: 500 VAC
• Impulse Withstand Voltage: 6kV
• Protection Degree: IP20
• Ambient Temperature Range: -30°C to 70°C
