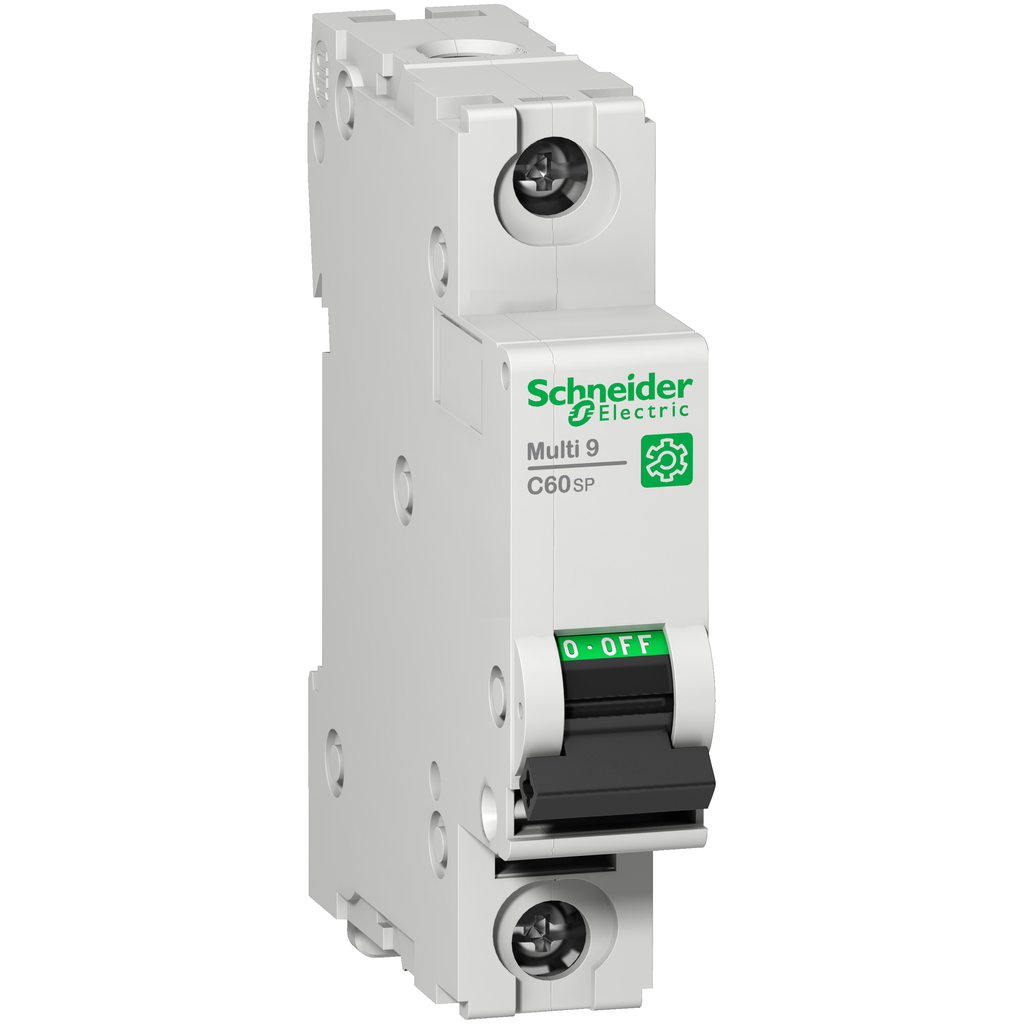

Schneider Electric M9F22102 Miniature Circuit Breaker 2 Amp

Product Description

The Schneider Electric M9F22102 is a miniature circuit breaker (MCB) designed for low voltage applications. It features one protected pole with a rated current of two amps and a C tripping curve. The MCB provides short circuit protection with a breaking capacity of up to three kiloamperes at four hundred fifteen volts AC, meeting the EN/IEC 60947-2 standard. This circuit breaker is suitable for both residential and industrial use, complying with EN/IEC 60898-1 standards.

• Type: Miniature circuit breaker with one protected pole
• Rated current: 2 Amps with a C tripping curve
• Mechanical endurance: 20,000 cycles

Product Highlights

Designed for various applications, the M9F22102 MCB protects from electrical hazards such as short circuits and overloads, making it suitable for OEMs and control panel builders.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product ID: 1268585

Technical Specifications

• Dimensions: Width 18 mm, Height 81 mm, Depth 72 mm
• Rated insulation voltage: 500 VAC
• Operational voltage: 240 VAC
• Electrical endurance: 10,000 cycles
• Impulse withstand voltage: 6 kV
• Protection degree: IP20
• Operating temperature range: -30 to 70 degrees Celsius
• Storage temperature range: -40 to 80 degrees Celsius
