Schneider Electric M9F11101 Miniature Circuit Breaker 1P 1A C Curve 10kA

Product Description

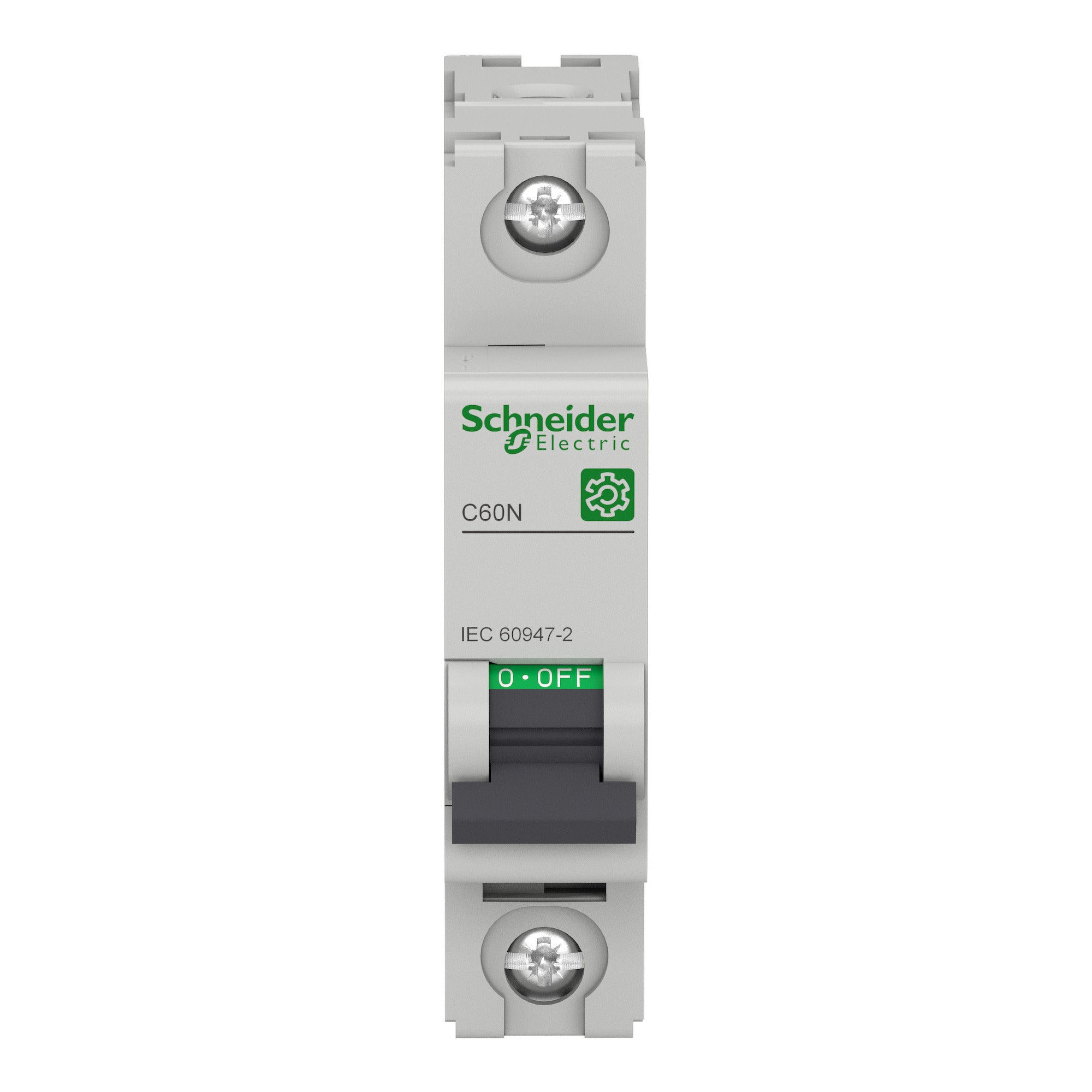

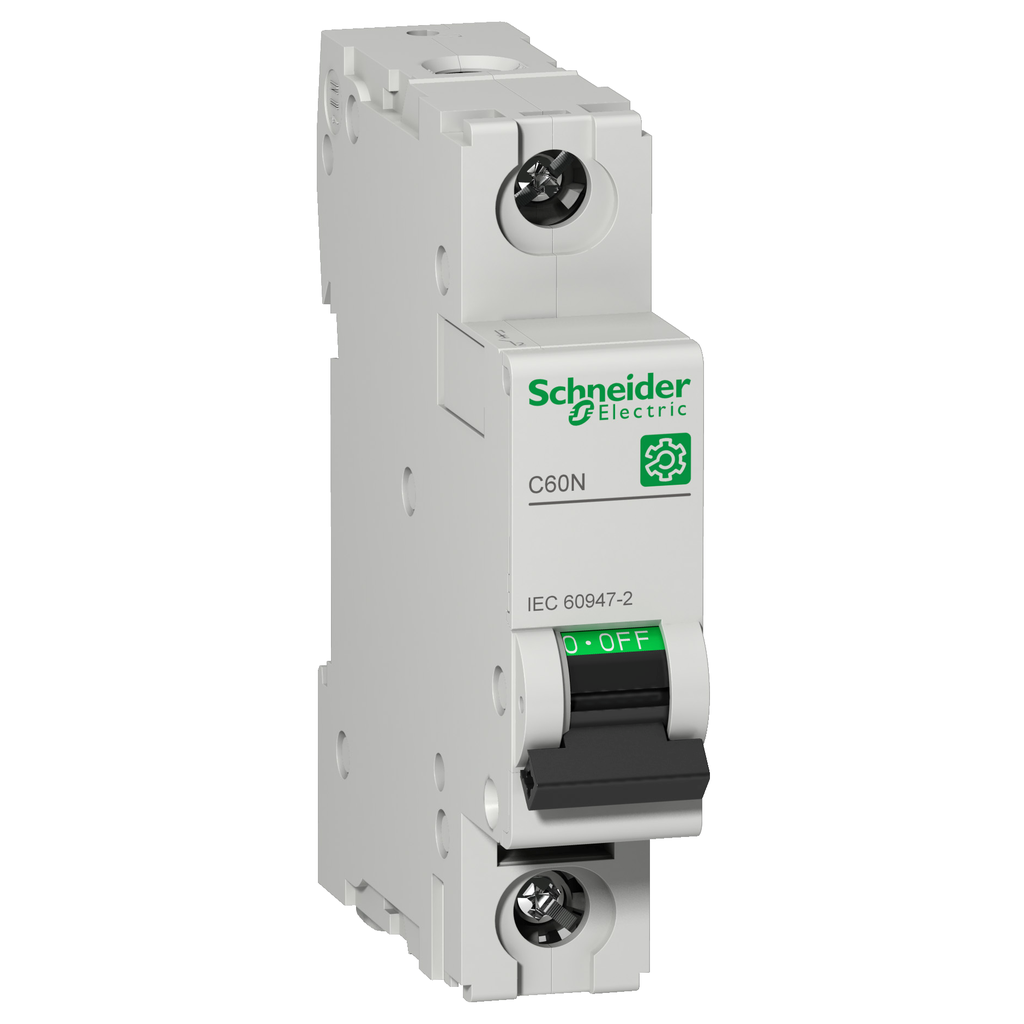

The Schneider Electric M9F11101 is a low voltage miniature circuit breaker (MCB). It is a single pole device with a rated current of one amp and a C tripping curve. The rated short circuit breaking capacity is three kiloamperes at four hundred fifteen volts alternating current, meeting EN/IEC 60947-2 standards. This circuit breaker conforms to both industrial EN/IEC 60898-1 and residential EN/IEC 60947-2 standards. It enhances safety by preventing electrical hazards to people and equipment.

• Protection against short circuits, earth leakage, and overloads
• Electrical endurance of up to ten thousand cycles
• Clip-on installation to DIN rail

Product Highlights

This circuit breaker features a fast closing mechanism and high-performance limitation, improving its lifespan. It is designed for original equipment manufacturers (OEM) and control panel builders. The operational voltage is two hundred forty volts, with a rated insulation voltage of five hundred volts. The dimensions are eighteen millimeters wide, eighty-one millimeters high, and seventy-two millimeters deep, weighing zero point twelve kilograms. It offers an IP20 degree of protection per IEC/EN 60529 on its terminals.

Product Information

Standard Information

• Catalog Number: M9F11101
• Brand: Schneider Electric

Technical Specifications

• Rated Current: 1 A
• Voltage Rating: 240 V
• Type: Miniature Circuit Breaker
• Short Circuit Capacity: 10 kA
• Insulation Voltage: 500 V
• Dimensions: 18 mm x 81 mm x 72 mm
• Weight: 0.12 kg
• Temperature Range: -30 C to 70 C
