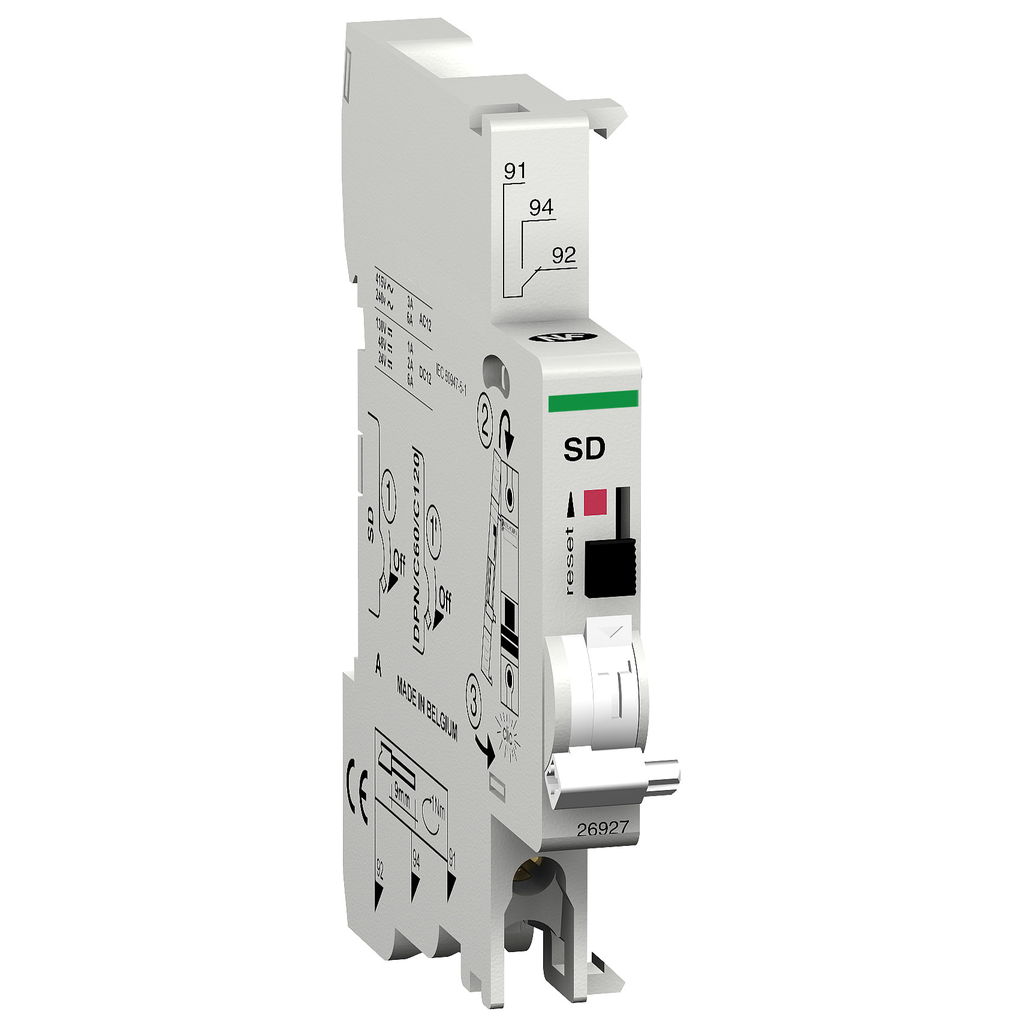

Schneider Electric M9A26927 Multi9 - fault contact - 240/415 V AC - 24/130 V DC

Product Description

Schneider Electric M9A26927 is a Multi9 fault contact device designed for remote fault indication. This device operates effectively with C60 products, meeting UL, CSA, and IEC standards. It indicates the open/close position and fault situation of connected devices. Its compatible voltage range is from twenty-four volts alternating current to two hundred forty volts alternating current, with a current rating up to three amps at four hundred fifteen volts alternating current.

• Width in nine millimeter pitches is one.
• Operating temperature ranges from negative twenty-five degrees Celsius to positive fifty degrees Celsius.
• Dimensions are nine millimeters wide, eighty-five millimeters high, and seventy-three point five millimeters deep.

Product Highlights

This product is suitable for installations needing fault indication in various electrical systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Belgium

Technical Specifications

• Catalog Number: M9A26927
• Operating Voltage: 24 VAC to 240 VAC
• Rated Current: 3 Amps at 415 VAC
• Width: 9 mm
• Height: 85 mm
• Depth: 73.5 mm
• Weight: 30 g
• Storage Temperature: -40 to 85 degrees C
