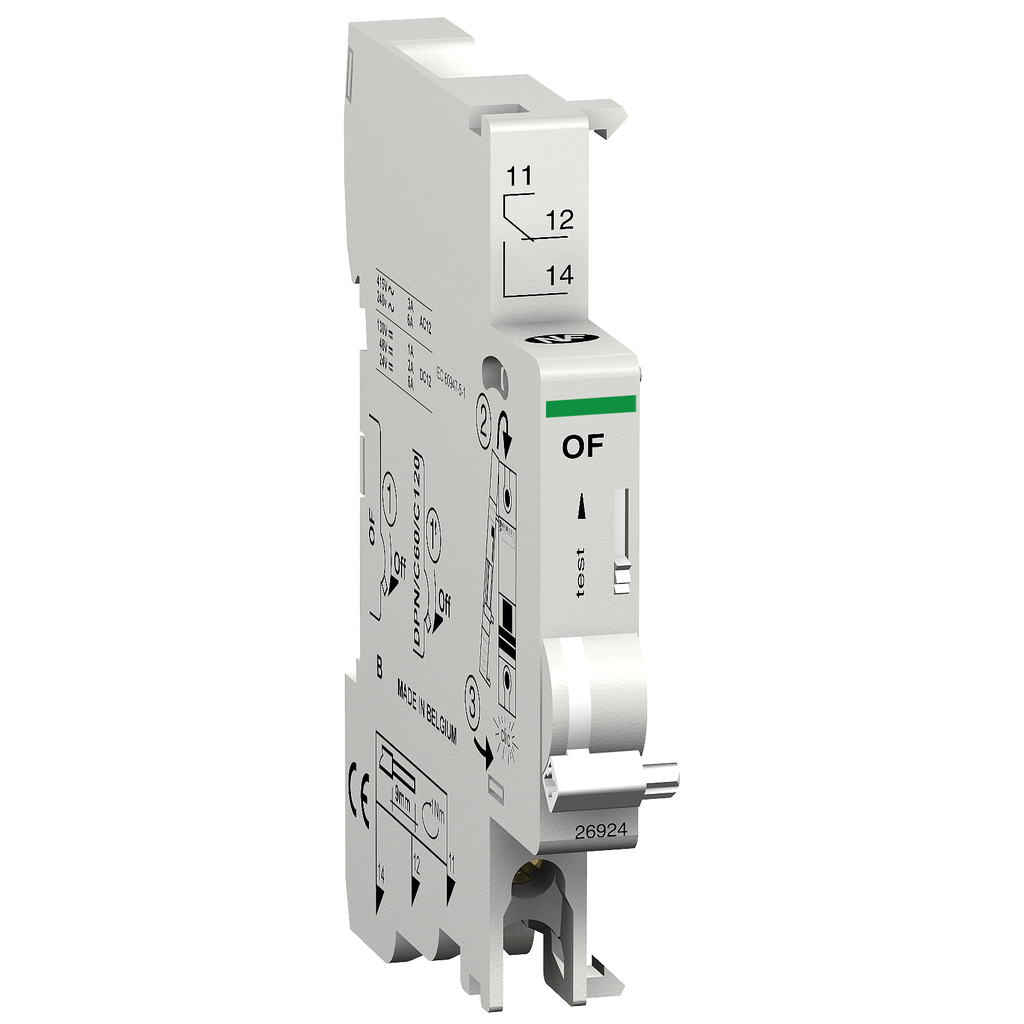

Schneider Electric M9A26924 SQD M9A26924 Multi9 - OC contact - 240/415 V AC - 24/130 V DC

Product Description

Schneider Electric M9A26924 SQD M9A26924 Multi9 is an open/close contact device. It is used with various Schneider Electric circuit breakers including iD, C60, and C120. This auxiliary contact is designed for easy installation and provides reliable operation in electrical systems.

• Compatible with multiple circuit breaker models
• Rated for operational currents up to 6A
• Wide voltage range: 24VAC to 415VAC and 24VAC to 130VDC

Product Highlights

Provides remote position indication for circuit breakers and features a test function for operational checks.

Product Information

Standard Information

• Catalog Number: M9A26924
• Brand: Schneider Electric

Technical Specifications

• Operating Voltage: 24VAC to 415VAC or 24VAC to 130VDC
• Rated Current: 10mA up to 6A
• Operating Frequency: 50Hz or 60Hz
• Operating Temperature: -25°C to +50°C
• Storage Temperature: -40°C to +85°C
• Complies with Standards: IEC/EN 60947-5-1, EN 62019-2
• Country of Origin: Belgium
• Weight: 0.07 lb
