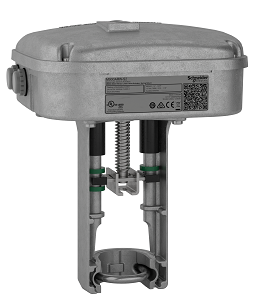

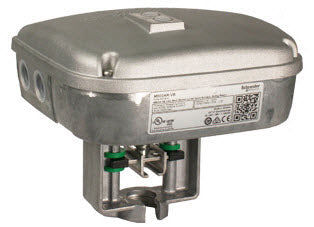

Schneider Electric M900ARW-S2 Actuator 24V AC/DC Globe Valve

Product Description

The Schneider Electric M900ARW-S2 is a globe valve actuator designed for efficient operation in HVAC applications. This electric actuator operates on 24V AC or DC power and offers both floating and proportional control. With a powerful force of 900 Newtons and a spring return feature, it ensures reliability in automated control systems.

• Powerful mechanical movement with a force of 900 N
• Compatible with wide voltage range: 20 to 29 VDC, 24 VAC
• NEMA 4 and IP65 rated for robust environmental protection

Product Highlights

The M900ARW-S2 actuator is ideal for use with globe valves in various HVAC settings. Its spring return mechanism guarantees a safe default position in case of power loss. With easy installation and a terminal block connection, it's suited for both professional and industrial applications.

Product Information

Standard Information

• Actuator Type: Electric
• Control Type: Automatic reset

Technical Specifications

• Force: 900 N (202 lbf)
• Control Signal: Floating, Proportional
• Protection Rating: IP65, NEMA 4
• Ambient Air Temperature for Operation: -10 to 50 °C
• Ambient Air Temperature for Storage: -25 to 65 °C
• Relative Humidity: 15 to 95% non-condensing
• Motor Type: Brushless DC motor
• Auxiliary Switch: 2 SPDT
