Schneider Electric M900ARW Actuator Floating Proportional 24V AC/DC Replacement MPN

Product Description

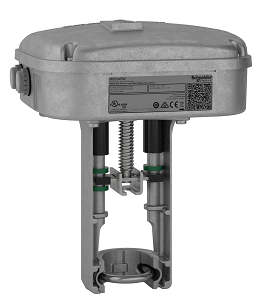

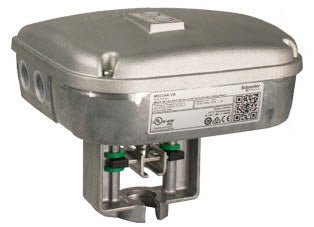

Schneider Electric M900ARW is a globe valve actuator designed for automatic control. This actuator operates on 24V AC or DC power and offers both floating and proportional control signals. With a force of 900 N, it is suitable for controlling globe valves effectively.

• Power Supply: 24V AC/DC
• Control Type: Floating or Proportional
• Protection: NEMA 4, IP65

Product Highlights

This actuator is ideal for HVAC applications and is essential for automatic valve management in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: M900ARW

Technical Specifications

• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mA
• Power Input Voltage: 20 to 29 VDC, 24 VAC
• Force: 900 N (approximately 202 lbf)
• Operating Temperature: -10 to 50 °C
• Storage Temperature: -25 to 65 °C
• Relative Humidity: 15 to 95% non-condensing
• Motor Type: Brushless DC motor
• Duty Cycle: Continuous operation
• Auxiliary Switch: Available as accessory
