Schneider Electric M900AR Spacelogic Globe Valve Actuator 24V AC/DC

Product Description

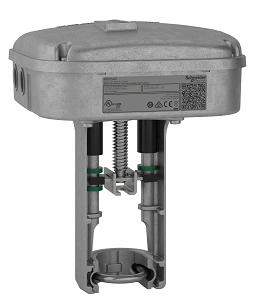

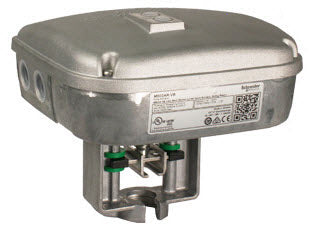

The Schneider Electric M900AR is a globe valve actuator. It operates on a voltage range of twenty to twenty-nine volts DC and supports both alternating and direct current at twenty-four volts. Featuring a maximum force of nine hundred Newtons, it is suitable for globe valves.

• Actuator type: Electric
• Control signal options: Floating or proportional
• NEMA 2 protection rating

Product Highlights

This actuator is designed for reliable performance in various environments, with a spring return feature for power loss scenarios.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Actuator

Technical Specifications

• MPN: M900AR
• Force: 900 N
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
• Power Input Voltage: 20 to 29 VDC, 24 VAC, 24 VDC
• Protection Rating: IP40, IP54, NEMA 1, NEMA 2
• Operating Temperature: From -10 to 50 degrees Celsius
• Humidity Range: 15-95% non-condensing
